Front Mount Trailer Tow Hitch For 99‑07 Chevy Silverado GMC Sierra 1500 00‑06 Suburban Tahoe Yukon
Model: 650231999 - 2007 Chevrolet, Silverado 1500, All Styles
1999 - 2007 GMC, Sierra 1500, Except Denali (Classic)
2000 - 2006 Chevrolet, Suburban 1500, All Styles
2000 - 2006 Chevrolet, Tahoe, 1500 Series
2000 - 2006 GMC, Yukon, 1500
2000 - 2006 GMC, Yukon XL 1500, All Styles
2001 - 2006 GMC, Yukon Denali, 1500
2001 - 2006 GMC, Yukon XL 1500 Denali, All Styles
Trailer Hitch Specs:
| Part Number | 65023 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
$275 28 $429.90 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$429.90 $275 28
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65023
- UPC: 742512650235
- Includes: Front Mount Hitch Receiver
Compatibility Chart
1999 - 2007 Chevrolet, Silverado 1500, All Styles
1999 - 2007 GMC, Sierra 1500, Except Denali (Classic)
2000 - 2006 Chevrolet, Suburban 1500, All Styles
2000 - 2006 Chevrolet, Tahoe, 1500 Series
2000 - 2006 GMC, Yukon, 1500
2000 - 2006 GMC, Yukon XL 1500, All Styles
2001 - 2006 GMC, Yukon Denali, 1500
2001 - 2006 GMC, Yukon XL 1500 Denali, All Styles
Trailer Hitch Specs:
| Part Number | 65023 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Front Mount Trailer Tow Hitch For 99-07 Chevy Silverado GMC Sierra 1500 00-06 Suburban Tahoe Yukon Install Notes
Installation Instructions for Chevrolet Silverado Pickup, Suburban 1500 2WD & 4WD, Tahoe 1500 2WD & 4WD;
GMC Sierra Pickup, Yukon, and Yukon XL 1500 2WD & 4WD
(Vehicles with Amber Turn Signals - WILL NOT FIT 2500 SERIES)
Part Numbers:
- 65023
Tools Required:
- 3/4" Wrench
- 18mm Wrench
- Drill
- 1/2" Drill Bit
- Torque Wrench
Step-by-Step Instructions:
-
Remove Factory Fasteners:
- For vehicles equipped with factory tow hooks, remove the (2) M12 fasteners from the frame rails.
-
Position the Hitch:
- Place the front-mounted hitch into position:
- For models with OEM tow hooks: Secure the hitch using the supplied M12 fasteners and washers.
- For models without tow hooks: Secure the hitch using the supplied 1/2" fasteners, washers, and handle nuts.
- Place the front-mounted hitch into position:
-
Drill Frame Holes:
- Using the hitch as a template, drill (2) 1/2" holes into the vehicle’s frame rails.
-
Install Remaining Fasteners:
- Install the remaining 1/2" bolts, conical washers, and handle nuts into the drilled holes.
- Tighten the hardware securely.
-
Torque Fasteners:
- Torque all M12 CL10.9 fasteners to 75 ft-lbs (102 N-m).
- Torque all 1/2" GR5 fasteners to 50 ft-lbs (68 N-m).
-
Trim Air Dam (If Necessary):
- On most 2006 Suburban and Yukon models, the air dam must be trimmed to clear the hitch.
- Consult the vehicle owner before trimming.

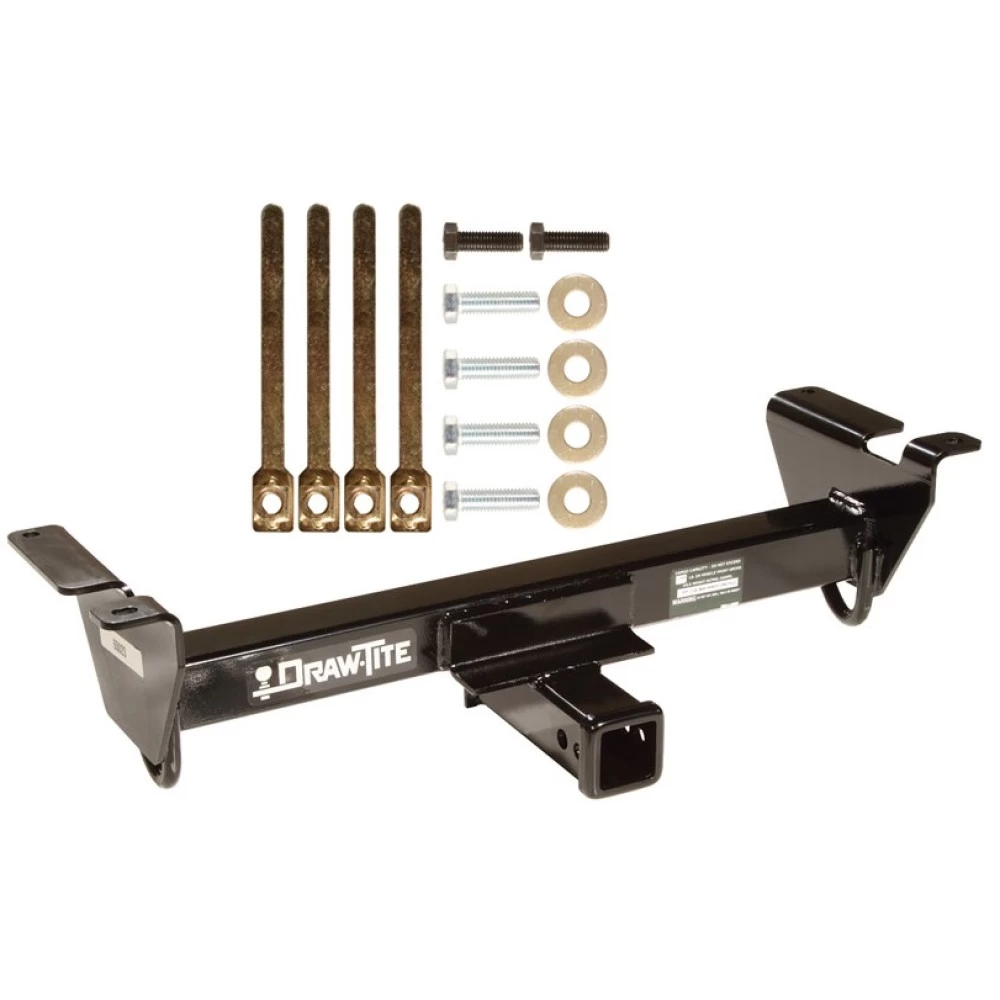

Hardware List:
- (2) M12 x 1.25 x 35 Hex Bolts
- (4) 1/2"-13 x 1-3/4" Hex Bolts
- (4) 1/2" Handle Nuts
- (4) 1/2" Conical Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- Damaged hitches or balls must be replaced immediately.
Manufacturer Notes:
- Observe all safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut holes with a torch.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
- For installation questions, contact Technical Support.
End of Instructions
Installation Instructions for Chevrolet Silverado Pickup, Suburban 1500 2WD & 4WD, Tahoe 1500 2WD & 4WD;
GMC Sierra Pickup, Yukon, and Yukon XL 1500 2WD & 4WD
(Vehicles with Amber Turn Signals - WILL NOT FIT 2500 SERIES)
Part Numbers:
- 65023
Tools Required:
- 3/4" Wrench
- 18mm Wrench
- Drill
- 1/2" Drill Bit
- Torque Wrench
Step-by-Step Instructions:
-
Remove Factory Fasteners:
- For vehicles equipped with factory tow hooks, remove the (2) M12 fasteners from the frame rails.
-
Position the Hitch:
- Place the front-mounted hitch into position:
- For models with OEM tow hooks: Secure the hitch using the supplied M12 fasteners and washers.
- For models without tow hooks: Secure the hitch using the supplied 1/2" fasteners, washers, and handle nuts.
- Place the front-mounted hitch into position:
-
Drill Frame Holes:
- Using the hitch as a template, drill (2) 1/2" holes into the vehicle’s frame rails.
-
Install Remaining Fasteners:
- Install the remaining 1/2" bolts, conical washers, and handle nuts into the drilled holes.
- Tighten the hardware securely.
-
Torque Fasteners:
- Torque all M12 CL10.9 fasteners to 75 ft-lbs (102 N-m).
- Torque all 1/2" GR5 fasteners to 50 ft-lbs (68 N-m).
-
Trim Air Dam (If Necessary):
- On most 2006 Suburban and Yukon models, the air dam must be trimmed to clear the hitch.
- Consult the vehicle owner before trimming.
Hardware List:
- (2) M12 x 1.25 x 35 Hex Bolts
- (4) 1/2"-13 x 1-3/4" Hex Bolts
- (4) 1/2" Handle Nuts
- (4) 1/2" Conical Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle frame to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- Damaged hitches or balls must be replaced immediately.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
