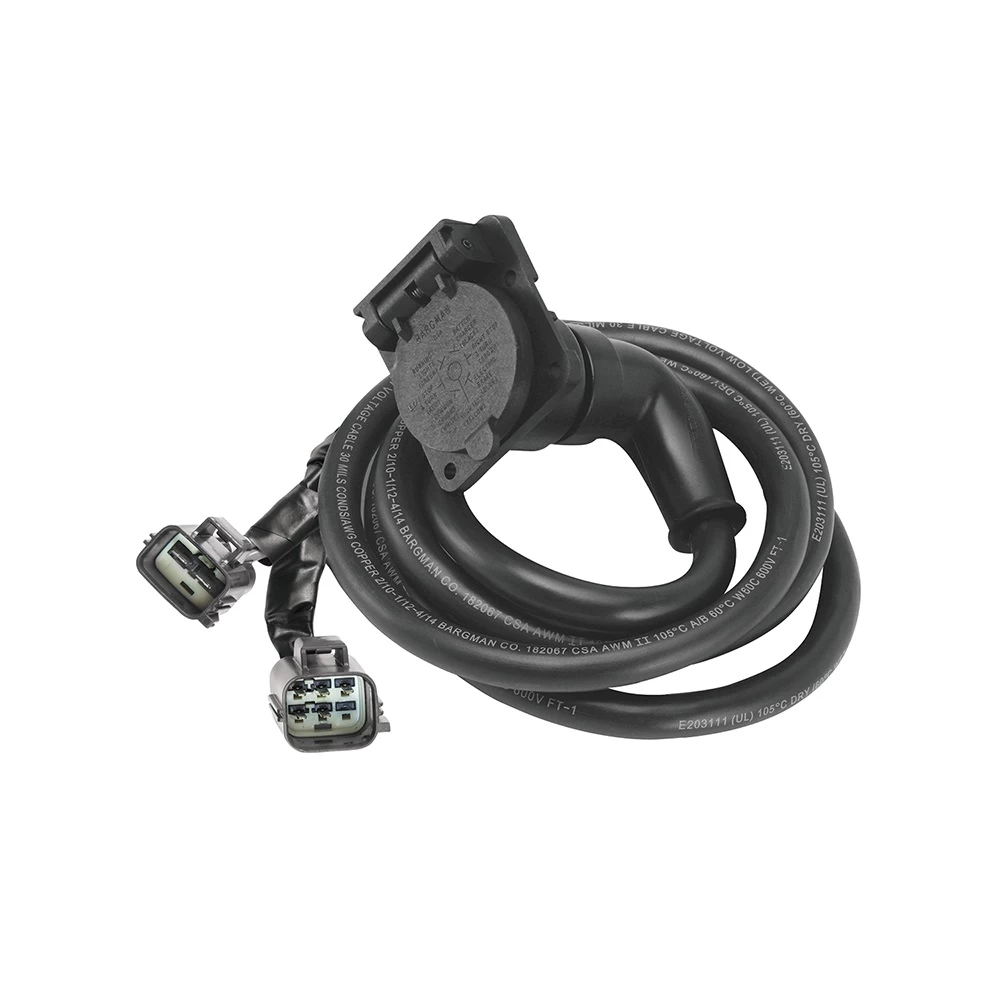

90 Degree Fifth Wheel Adapter Harness, 7‑Way RV Round Tow Plug Harness Flat Pin Connector Assembly 7 ft., Ford
Model: 54701-007$75 11 $112.39 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$112.39 $75 11
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $18.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bargman
- Model: 54701-007
- UPC: 016118144352
- Includes: Fifth Wheel Custom Harness
Compatibility Chart
Get Expert Help
90 Degree Fifth Wheel Adapter Harness, 7-Way RV Round Tow Plug Harness Flat Pin Connector Assembly 7 ft., Ford Install Notes
Installation Instructions for Trailer Tow Harness
Part Number: 54701-007
Tools Required:
- Drill with 3/32” & 1/4" Drill Bits
- 2” Hole Saw
- Phillips Head Screwdriver
- Center Punch
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Factory Wiring Harness
- Find the vehicle’s wiring harness plugs located at the rear, underneath the vehicle, inside the driver’s side frame rail.
- The plugs should match the Trailer Tow Harness ends.
- Carefully separate the connectors, ensuring not to break the locking tabs.
- Verify that the mating surfaces are clean and free of dirt.
- Install the Trailer Tow Harness between the mating plugs.
Step 2: Determine Mounting Point
- Select a suitable mounting location, usually on the driver’s side between the rear post and the wheel well area.
- Route the harness to this location, ensuring approximately 4” or more of extra length for mounting.
- Ensure the trailer’s wire harness has sufficient length to reach this mounting point.
- Verify that you have at least 5” of clearance behind the mounting surface for proper installation.
WARNING:
Avoid routing wires near hot pipes, heat shields, the fuel tank, or any other pinch points that may damage the wire.
Step 3: Drill the Mounting Hole
- Drill a pilot hole using a 1/4” drill bit at the chosen mounting point.
- Confirm your wire lengths and location.
- Use a 2” hole saw to complete the mounting hole.
NOTE:
- If the vehicle has a bed liner, it may need to be notched, or longer screws (not included) may be required to mount directly to the body panel.
- Apply rust-proof coating to all drilled areas to prevent rust.
CAUTION:
Always check behind surfaces before drilling to avoid damage to the vehicle or injury.
Step 4: Install the 7-Way Connector
- Use the 7-way connector end as a guide to mark the mounting holes with a center punch.
- Drill four 3/32” holes as marked.
- Apply rust-proof coating to the drilled holes.
- Route the harness through the mounting hole and connect the 7-way end to the harness.
- Secure the 7-way connector to the vehicle surface using the 4 self-tapping screws provided.
Step 5: Secure the Harness
- Route and secure the harness to the vehicle using cable ties provided.
- Ensure wires are routed away from hot pipes, sharp edges, heat shields, and any points that may damage the harness.
Final Steps:
- Test the Installation: Verify proper operation of the harness using a test light or a trailer connection.
- If the 7-way connector does not function correctly, some vehicles may require the addition of a fuse or relay (not included). Refer to the vehicle’s owner’s manual for specific locations.
- Use dielectric grease on all connectors to prevent moisture intrusion, corrosion, and error codes on brake controls.
Safety Warnings:
- All connections must be completed for the harness to function properly.
- Periodically inspect the harness for wear, damage, and secure routing.
- Do not exceed the vehicle’s towing capacity or wiring limitations.
End of Instructions
Installation Instructions for Trailer Tow Harness
Part Number: 54701-007
Tools Required:
- Drill with 3/32” & 1/4" Drill Bits
- 2” Hole Saw
- Phillips Head Screwdriver
- Center Punch
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Factory Wiring Harness
- Find the vehicle’s wiring harness plugs located at the rear, underneath the vehicle, inside the driver’s side frame rail.
- The plugs should match the Trailer Tow Harness ends.
- Carefully separate the connectors, ensuring not to break the locking tabs.
- Verify that the mating surfaces are clean and free of dirt.
- Install the Trailer Tow Harness between the mating plugs.
Step 2: Determine Mounting Point
- Select a suitable mounting location, usually on the driver’s side between the rear post and the wheel well area.
- Route the harness to this location, ensuring approximately 4” or more of extra length for mounting.
- Ensure the trailer’s wire harness has sufficient length to reach this mounting point.
- Verify that you have at least 5” of clearance behind the mounting surface for proper installation.
WARNING:
Avoid routing wires near hot pipes, heat shields, the fuel tank, or any other pinch points that may damage the wire.
Step 3: Drill the Mounting Hole
- Drill a pilot hole using a 1/4” drill bit at the chosen mounting point.
- Confirm your wire lengths and location.
- Use a 2” hole saw to complete the mounting hole.
NOTE:
- If the vehicle has a bed liner, it may need to be notched, or longer screws (not included) may be required to mount directly to the body panel.
- Apply rust-proof coating to all drilled areas to prevent rust.
CAUTION:
Always check behind surfaces before drilling to avoid damage to the vehicle or injury.
Step 4: Install the 7-Way Connector
- Use the 7-way connector end as a guide to mark the mounting holes with a center punch.
- Drill four 3/32” holes as marked.
- Apply rust-proof coating to the drilled holes.
- Route the harness through the mounting hole and connect the 7-way end to the harness.
- Secure the 7-way connector to the vehicle surface using the 4 self-tapping screws provided.
Step 5: Secure the Harness
- Route and secure the harness to the vehicle using cable ties provided.
- Ensure wires are routed away from hot pipes, sharp edges, heat shields, and any points that may damage the harness.
Final Steps:
- Test the Installation: Verify proper operation of the harness using a test light or a trailer connection.
- If the 7-way connector does not function correctly, some vehicles may require the addition of a fuse or relay (not included). Refer to the vehicle’s owner’s manual for specific locations.
- Use dielectric grease on all connectors to prevent moisture intrusion, corrosion, and error codes on brake controls.
Safety Warnings:
- All connections must be completed for the harness to function properly.
- Periodically inspect the harness for wear, damage, and secure routing.
- Do not exceed the vehicle’s towing capacity or wiring limitations.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
