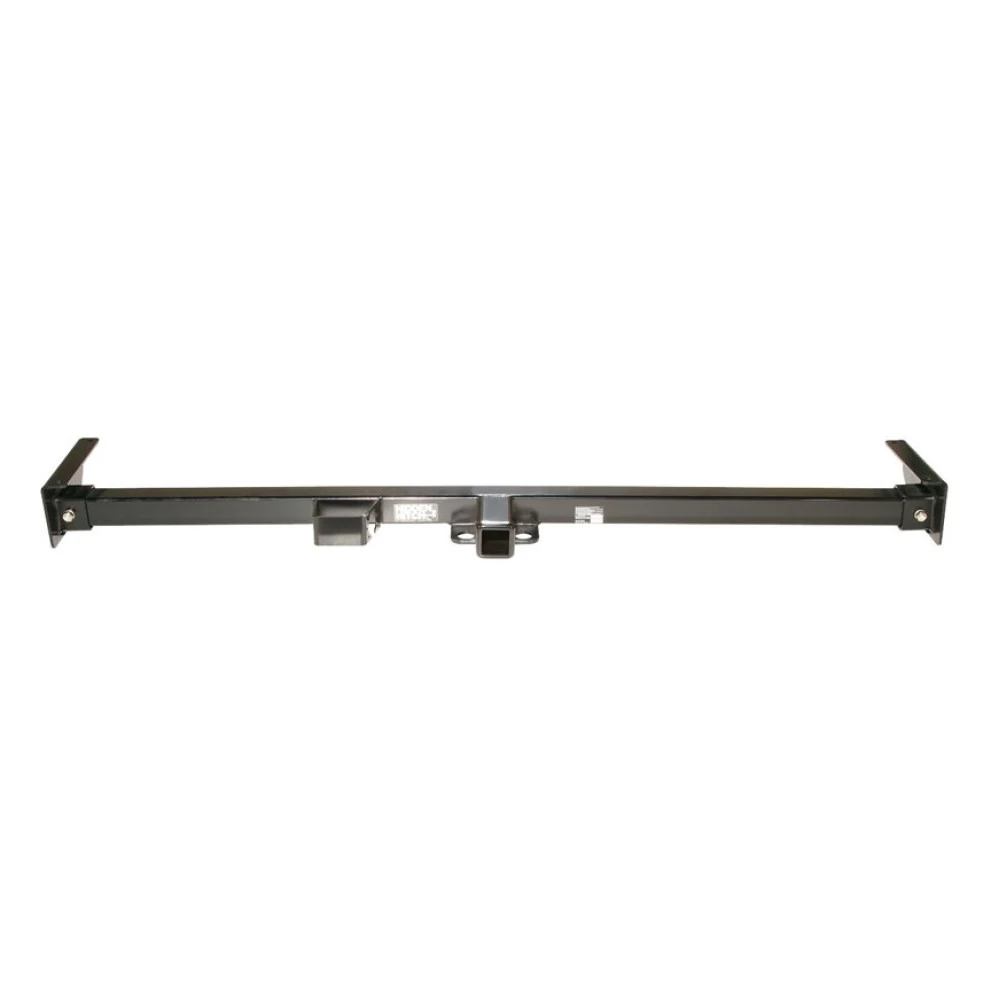

Adjustable Motorhome RV Trailer Hitch Tow Receiver for RVs 47‑72" Wide
Model: 82201Multi-Fit Motor Home Hitch, Fits Frames 47" to 71" Wide, Black, 3,500 lbs. WC
| Part Number | 82201 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$403 41 $629.98 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$629.98 $403 41
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $100.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 82201
- UPC: 016118071535
- Includes: Adjustable Trailer Hitch
Multi-Fit Motor Home Hitch, Fits Frames 47" to 71" Wide, Black, 3,500 lbs. WC
| Part Number | 82201 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Adjustable Motorhome RV Trailer Hitch Tow Receiver for RVs 47-72" Wide Install Notes
Installation Instructions for Draw-Tite Hitch Kit for Frames 47” to 71” Overall Width (Part Number: 82201) ### Part Numbers: - 82201 - Fastener Kit: KA-8002-170 ### Equipment Required: - Wrenches: 3/4" - Drill Bits: 1/2" ### Hardware List: - (4) Carriage bolts 1/2-13 x 1-3/4” GR5 - (6) Hex nuts 1/2” - (2) Hex bolts 1/2-13 x 1-1/4” GR5 - (2) Flat washers 1/2” - (6) Lock washers 1/2” - (1) Receiver assembly - (1) Left frame bracket - (1) Right frame bracket - (4) Reinforcing plates - (4) Bolt leaders Torque Specifications: - Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N*m). ### Step-by-Step Instructions: 1. Position Frame Brackets: - Slide the left and right frame brackets (B) and (C) onto the receiver assembly (A). 2. Clamp Frame Brackets: - Position and clamp the frame brackets to the bottom of the vehicle frame so that the receiver assembly with ball mount is centered on the vehicle, ensuring adequate coupler clearance. 3. Drill Attachment Holes: - Using the frame brackets as templates, drill two 1/2" holes into the vehicle frame rail. - If the holes in the frame brackets do not align with those in the receiver assembly, drill one 1/2" diameter hole in each bracket for attachment. 4. Loosely Fasten Frame Brackets: - Loosely fasten the frame brackets to the frame rail using carriage bolts (1) and reinforcing plates (D). - If no access holes are available for the bolts/plates, they may need to be fish-wired or the bumper loosened. - Remove the clamps. 5. Tighten All Bolts: - Tighten all bolts to the specified torque. ### Safety Notes: - Warning: Failure to follow all instructions may result in product failure, property damage, or serious injury. - Wear eye protection while working beneath the vehicle. - Never cut access or attachment holes with a torch. - Ensure proper vehicle support to prevent damage or injury during installation. ### Specifications: - Max Gross Trailer Weight: 3,500 lb (1,589 kg) - Max Tongue Weight: 300 lb (136 kg) - Hitch Type: Weight Carrying (Do not use with spring bars for weight distribution) - Safety Compliance: Complies with V.E.S.C. Regulation V-5 and SAE J684 requirements for safety in towing systems. ### Manufacturer Notes: - This product must be installed by trained personnel to ensure safety and proper function. - It is the responsibility of the installer to choose a structurally safe location for attachment.
Installation Instructions for Hitch Kit for Frames 47” to 71” Overall Width
Part Numbers:
- 82201
- Fastener Kit: KA-8002-170
Equipment Required:
- Wrenches: 3/4"
- Drill Bits: 1/2"

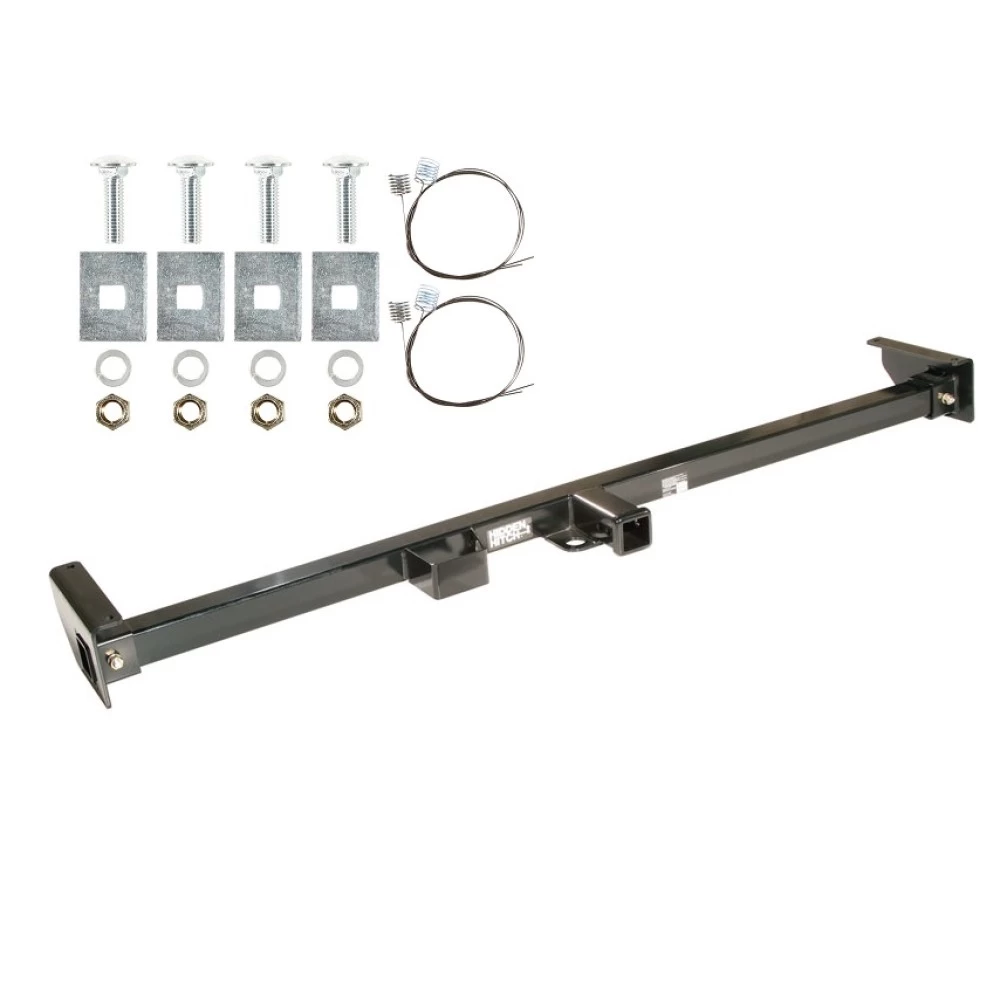

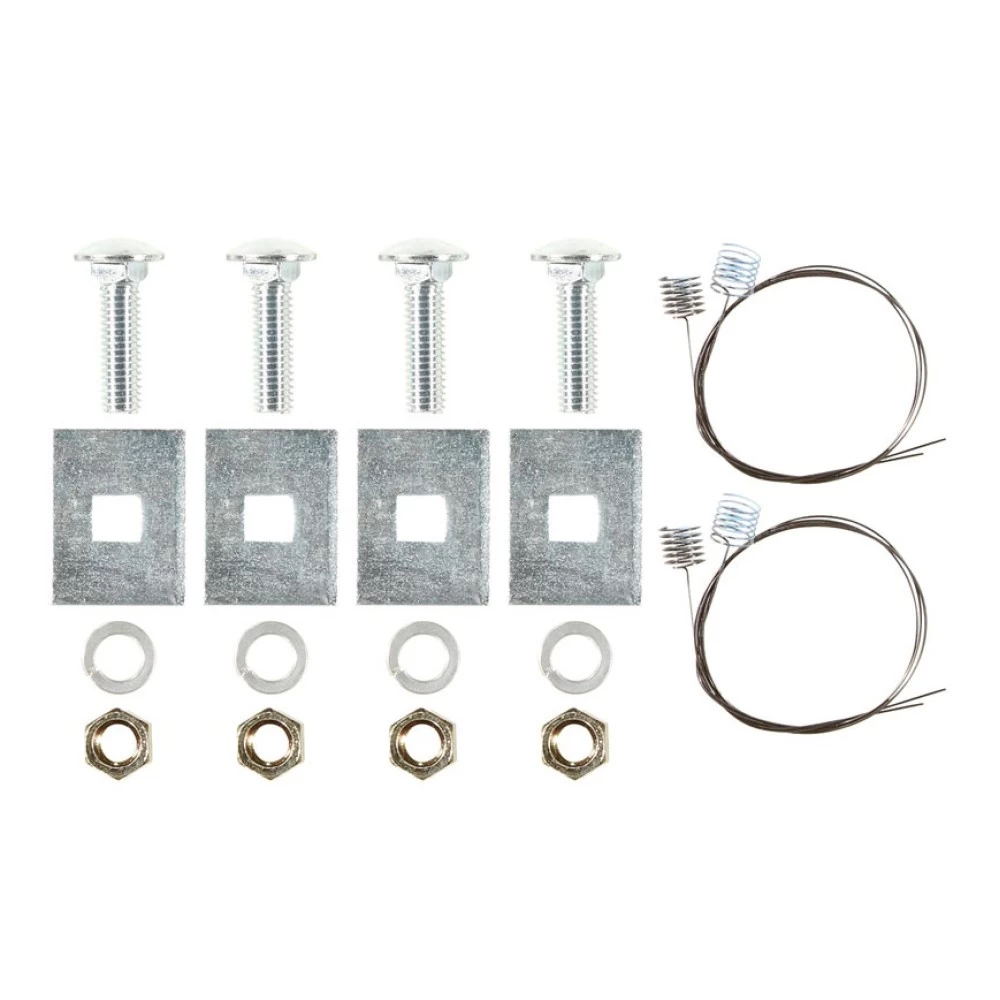

Hardware List:
- (4) Carriage bolts 1/2-13 x 1-3/4” GR5
- (6) Hex nuts 1/2”
- (2) Hex bolts 1/2-13 x 1-1/4” GR5
- (2) Flat washers 1/2”
- (6) Lock washers 1/2”
- (1) Receiver assembly
- (1) Left frame bracket
- (1) Right frame bracket
- (4) Reinforcing plates
- (4) Bolt leaders
Torque Specifications:
- Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N*m).
Step-by-Step Instructions:
- Position Frame Brackets:
- Slide the left and right frame brackets onto the receiver assembly.
- Clamp Frame Brackets:
- Position and clamp the frame brackets to the bottom of the vehicle frame so that the receiver assembly with ball mount is centered on the vehicle, ensuring adequate coupler clearance.
- Drill Attachment Holes:
- Using the frame brackets as templates, drill two 1/2" holes into the vehicle frame rail.
- If the holes in the frame brackets do not align with those in the receiver assembly, drill one 1/2" diameter hole in each bracket for attachment.
- Loosely Fasten Frame Brackets:
- Loosely fasten the frame brackets to the frame rail using carriage bolts and reinforcing plates.
- If no access holes are available for the bolts/plates, they may need to be fish-wired or the bumper loosened.
- Remove the clamps.
- Tighten All Bolts:
- Tighten all bolts to the specified torque.
Safety Notes:
- Warning: Failure to follow all instructions may result in product failure, property damage, or serious injury.
- Wear eye protection while working beneath the vehicle.
- Never cut access or attachment holes with a torch.
- Ensure proper vehicle support to prevent damage or injury during installation.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Hitch Type: Weight Carrying (Do not use with spring bars for weight distribution)
- Safety Compliance: Complies with V.E.S.C. Regulation V-5 and SAE J684 requirements for safety in towing systems.
Additional Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product includes a warranty covering [specific duration and coverage details]. For complete warranty instructions, please download the full installation PDF.
