Bulldog 10x 12K 2-Speed Square Trailer Jack w/ Planetary Gearbox 26" Lift Non Spring Return

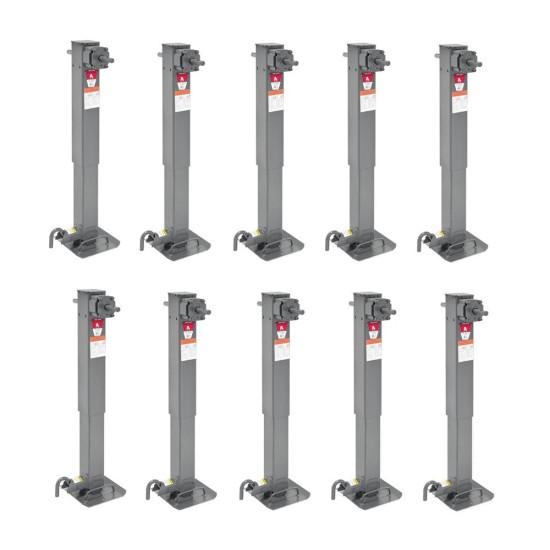

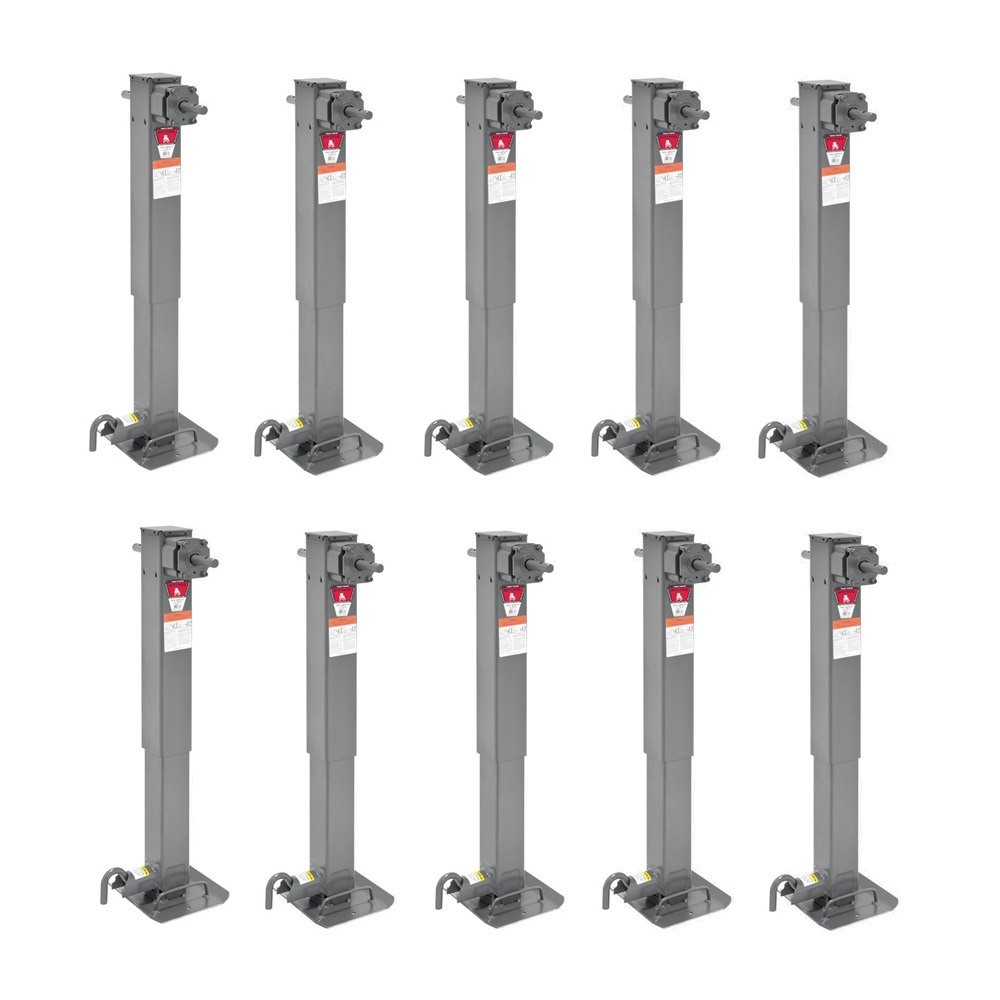

Model: BDTJ76Pack of 10 Bulldog 12,000 lb 2-Speed Square Trailer Jacks with Planetary Gearbox – 26″ Lift
Equip your fleet with reliable, heavy-duty lifting support. This bundle of 10 Bulldog 12,000 lb 2-Speed Square Trailer Jacks with integrated Planetary Gearboxes delivers smooth, efficient operation for agricultural, construction, and industrial trailers. Each jack ensures superior lifting performance, durability, and easy handling under full loads.
Bundle Contents:

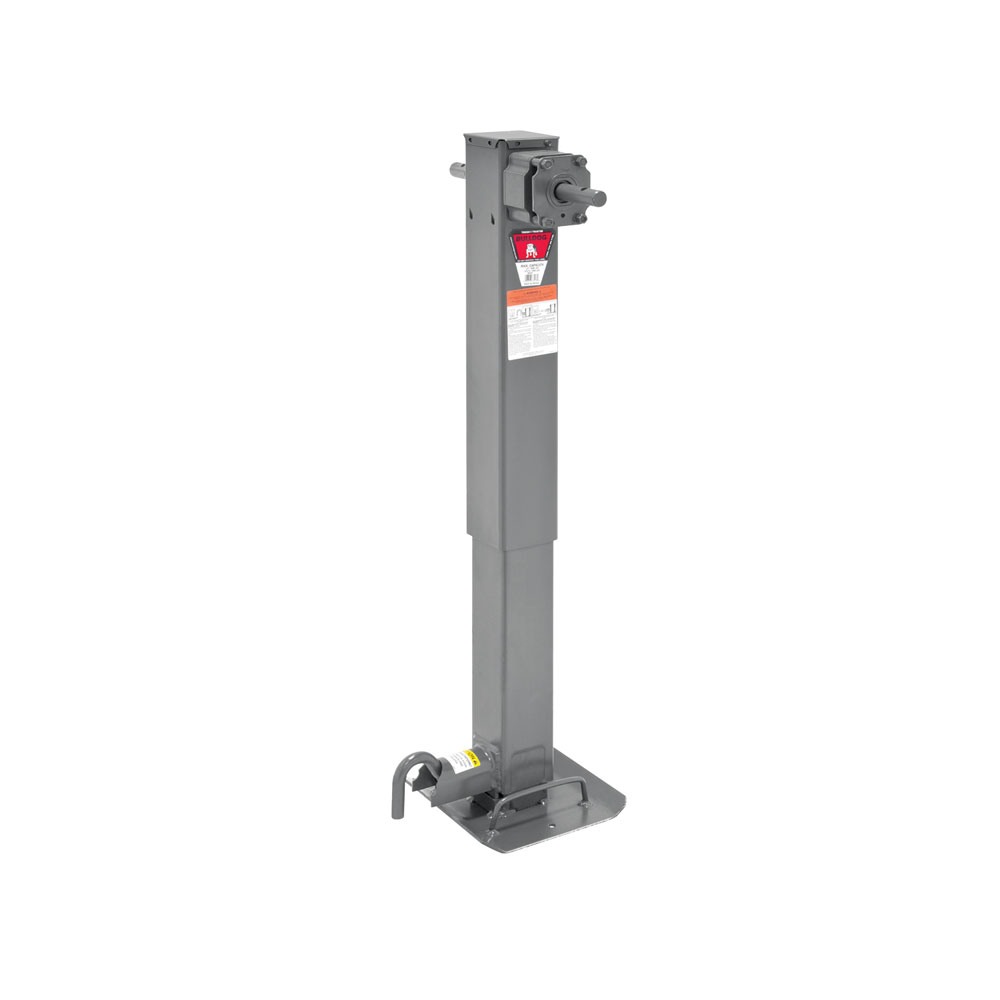

- QTY (10): Bulldog 12,000 lb 2-Speed Square Trailer Jack w/ Planetary Gearbox, 26″ Lift, Non-Spring Return
- 12,000 lbs lift capacity with sidewind crank and 12-1/2″ travel
- First 2-Speed gearbox designed specifically for drop leg jacks
- Low gear: 27 turns per 1″ (planetary), 29 turns per 1″ (traditional) for full lifting power
- High gear: 9 turns per 1″ for fast cranking when unloaded
- State-of-the-art 2-Speed gearbox for maximum power and speed under all loads
- Designed for modern agricultural, construction, and industrial trailer applications
- User-friendly design provides smooth, easy operation
- Engineered alloy construction for enhanced strength, stability, and sideload capability
- Planetary gearbox fits within the width profile of the outer tube, eliminating the need for spacers
Recommendation: Always verify compatibility with your trailer’s mounting specifications, and perform regular maintenance—such as lubrication and inspection—to ensure long-lasting, reliable performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 30 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 56 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 29.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 55.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
