Bulldog 10x 12K 2-Speed Square Trailer Jack w/ Traditional Gearbox 26" Lift

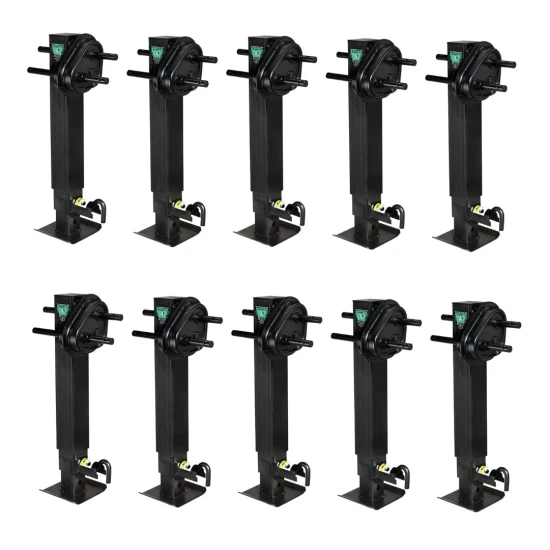

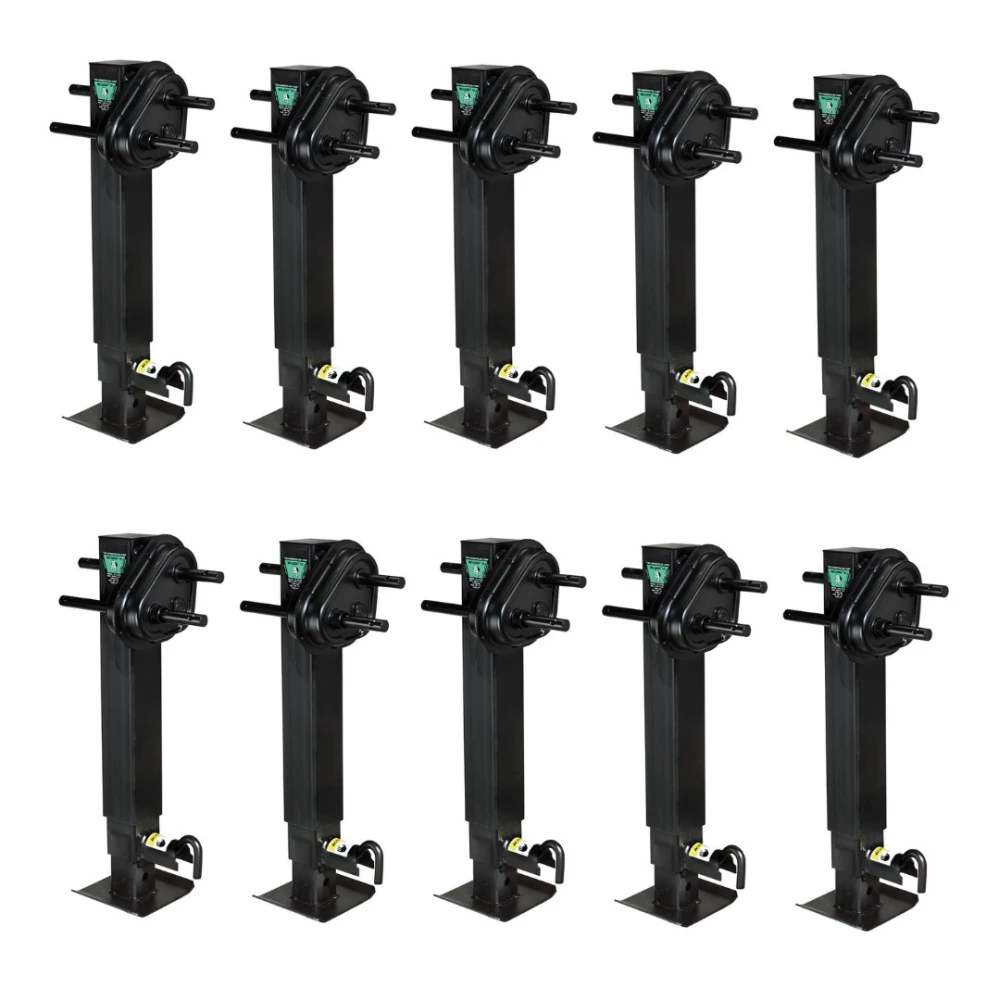

Model: BDTJ9610-Pack Bulldog 12K Two-Speed Square Drop Leg Trailer Jacks with Traditional Gearbox, 26″ Lift
Equip your fleet, farm, or worksite with ten heavy-duty Bulldog two-speed square trailer jacks. Each jack boasts a 12,000 lb static capacity and 10,000 lb lift capacity, powered by the industry’s first drop-leg gearbox design. With a 26″ travel range and sidewind handle crank, these jacks deliver smooth, powerful lifting in low gear and rapid cranking in high gear—ideal for agricultural, construction, and industrial trailers.
Bundle Contents:
- QTY (10): 12K Two-Speed Square Trailer Jack with Traditional Gearbox, 26″ Lift
- First two-speed gearbox engineered for drop-leg jack applications
- Low gear: 27 turns per 1″ (planetary) & 29 turns per 1″ (traditional) for maximum power
- High gear: 9 turns per 1″ for rapid cranking when unloaded
- Sidewind handle crank for smooth, user-friendly operation
- Spring-return drop leg design for fast engagement and secure support
- Engineered alloy construction for enhanced strength, stability, and sideload capability
- Planetary gearbox fits within the outer tube profile—no spacers needed
- Durable black powdercoat finish resists corrosion
Always verify compatibility with your original equipment, perform routine lubrication and inspection of gearbox components, and ensure drop-leg pins are securely engaged before towing.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Bracket-to-Bottom Clearance (Extended) | 54.6 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
