Bulldog 10x 12K Square Trailer Jack w/ 26" Lift Drop Leg Non Spring Return
Model: BDTJ48Bulldog 10-Pack 12,000 lb Square Trailer Jacks w/ 26″ Drop Leg Non-Spring Return
Equip your heavy-duty trailers with a complete set of ten Bulldog 12,000 lb capacity square trailer jacks featuring a 26″ drop leg non-spring return design. Built from 7-gauge superior alloy steel and finished in durable gray powdercoat, these direct-weld HD jacks ensure reliable support and ease of operation across agricultural, construction, and utility applications.
Bundle Contents:

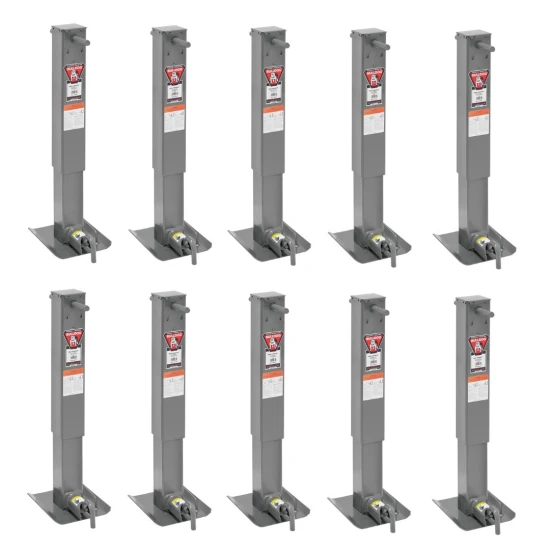

- QTY (10): Bulldog 12,000 lb Square Trailer Jack w/ 26″ Lift Drop Leg Non-Spring Return
- HD 4″ square tubing, 7-gauge alloy steel construction
- Gray powdercoat finish; optional painted labels or full powder coat
- 12.5″ screw travel with 13.5″ additional drop-leg adjustment
- Drop leg features five positioning holes; non-spring return design
- Sidewind handle crank with 1:1.5 gear ratio for smooth operation
- Front-facing or side-facing drop-leg plunger pin options
- 4″ outer tube diameter supports 12,000 lb static and 10,000 lb lift capacity
- Direct weld HD jack mounting style for heavy-duty trailer frames
We recommend verifying your trailer’s original equipment requirements before installation, and performing regular lubrication and inspections to maintain peak performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 54 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.5 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
