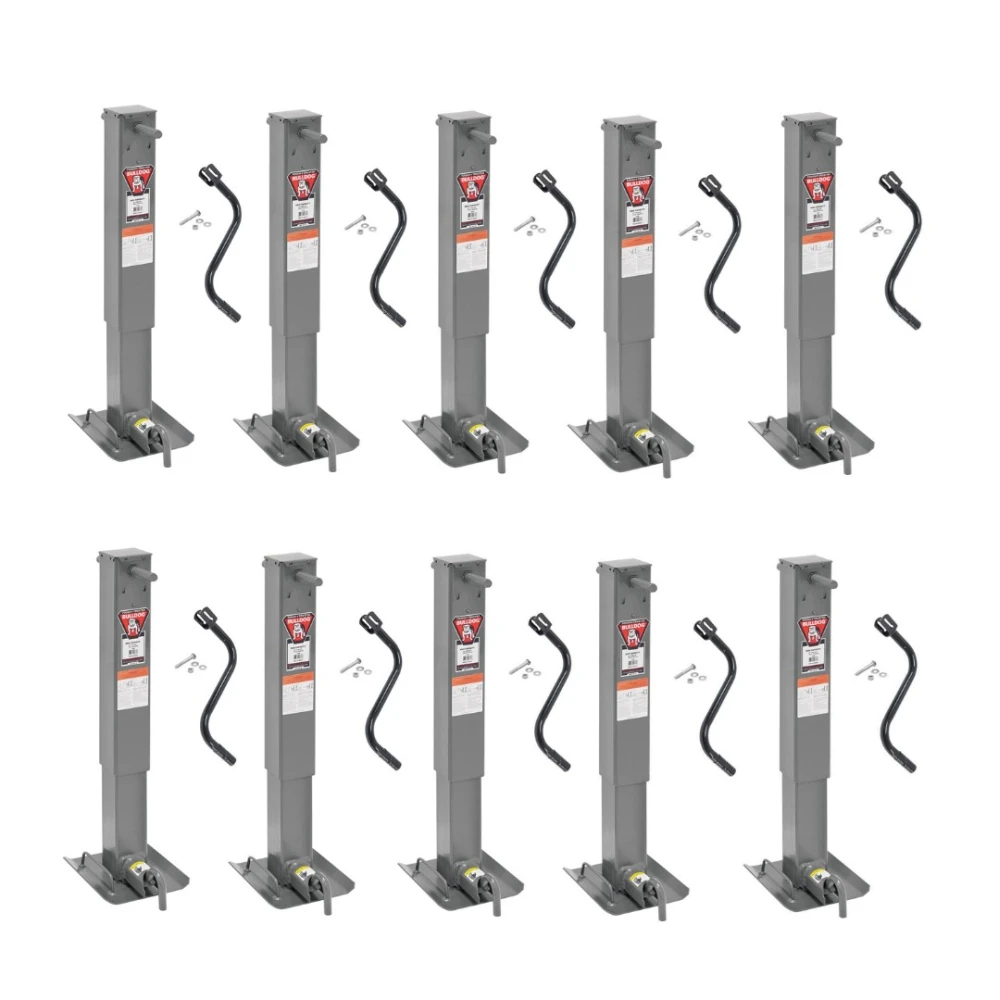

Bulldog 10x 12K Square Trailer Jack w/ 26" Lift Sidewind Non Spring Return
Model: BDTJ52Bulldog 10-Pack 12,000 lb Square Trailer Jacks with 26″ Sidewind Drop Leg
Get ten heavy-duty Bulldog 4″ square trailer jacks, each rated for 12,000 lb static load and 10,000 lb lift capacity. These Sidewind Non Spring Return jacks feature a durable gray powdercoat finish, a bolstered gear box with grease fitting, and a versatile drop-leg design—perfect for agricultural, construction, utility, and livestock trailers.
Bundle Contents:
- QTY (10): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Sidewind, 12.5″ Lift Travel
- 4″ square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg
- Drop-leg option with 5 positioning holes
- Easy-access gear box with grease fitting for routine maintenance
- Non Spring Return drop leg
- 12.5″ screw travel, 13.5″ of additional adjustment with drop leg
- Front-facing drop leg plunger pin or side-facing plunger pin
- Painted (with or without labels) or optional gray powdercoat
- Sidewind handle with 1:1.5 gear ratio
We recommend verifying fitment with your trailer’s original mounting configuration and performing regular maintenance—such as greasing gears and checking for corrosion—to ensure long-term reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 53 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.3 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$2,532 99 $2,687.50 6% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,687.50 $2,532 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ52
- Includes: 12K Drop Leg Jack
