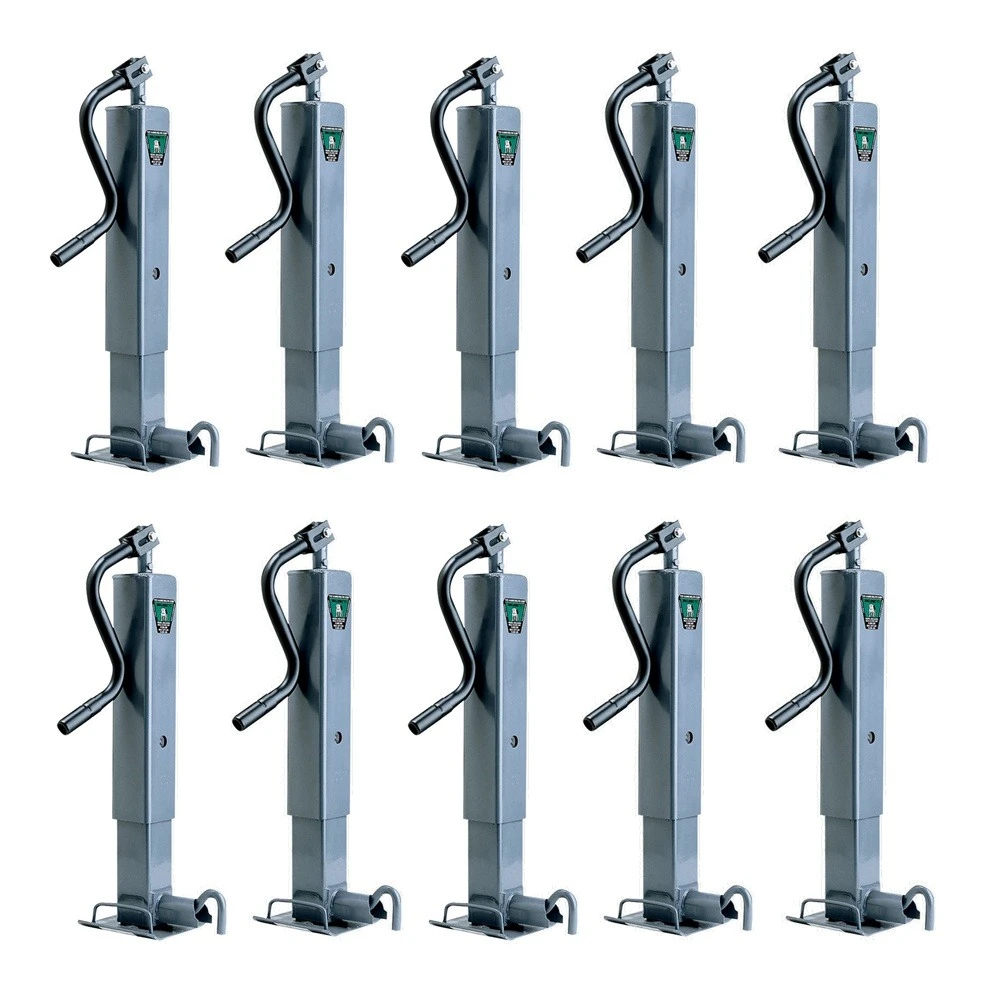

Bulldog 10x 12K Square Trailer Jack w/ 26" Lift Topwind Non Spring Return and Crank
Model: BDTJ84Bulldog 12,000 lb Topwind 4" Square Trailer Jack – 10 Pack (Non Spring Return)
Get a full set of 10 Bulldog 12,000 lb Topwind 4" Square Trailer Jacks with 26" lift and non spring return drop legs—built for maximum strength and reliability in agricultural, construction, and heavy‐duty trailer applications. This bundle ensures you have premium jacks on hand for every trailer, offering superior support capacity and effortless crank action even under load.
Bundle Contents:
- QTY (10): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Topwind, 12‐1/2 Inch Travel
- Strong, durable, and sturdy with 12,000 lbs. support capacity and 10,000 lbs. lift capacity.
- 4" square tubing constructed of 7-gauge superior alloy steel for maximum strength.
- Painted outer tube and drop leg for corrosion resistance.
- Drop leg option with 5 positioning holes; choose front or side facing plunger pin.
- Easy-access gearbox with grease fitting for routine maintenance.
- 12.5" screw travel plus 13.5" adjustment when drop leg is deployed.
- Painted (with or without labels) or powder coat finish option for customization.
- Sidewind gear ratio of 1:1.5 for smooth and efficient operation.
Note: Always verify compatibility with your trailer’s original mounting setup, perform regular maintenance, and keep moving parts lubricated for optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12,000 LB Static Capacity |
| Jack Lifting Load Capacity | 10,000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$2,314 99 $2,625.00 12% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,625.00 $2,314 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ84
- Includes: 12K Drop Leg Jack
