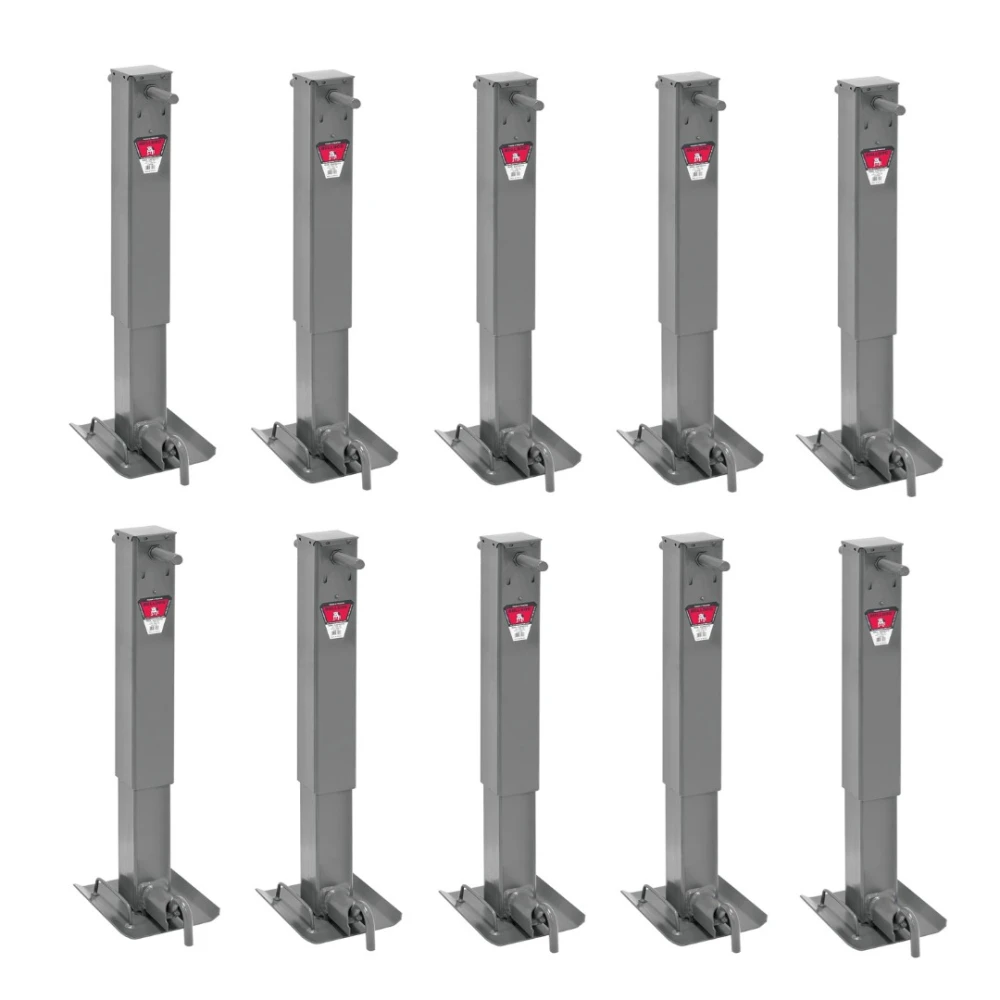

Bulldog 10x 12K Square Trailer Jack w/ Sidewind 26" Lift Drop Leg Non Spring Return
Model: BDTJ56Bundle of 10 Bulldog 12,000 lb Square Trailer Jacks w/ Sidewind 26″ Lift Drop Leg Non-Spring Return
This bundle includes ten heavy-duty Bulldog 12,000 lb support-capacity square jacks with sidewind handles and non-spring return drop legs. Perfect for fleets, dealerships, or contractors who demand consistent performance and reliability across multiple trailers. Each jack is built from 4″ 7-gauge alloy steel tubing with a gray powdercoat finish, offering superior strength, rust resistance, and long-term durability.
Bundle Contents:
- QTY (10): HD Square Trailer Jack, 12,000 lbs Support Capacity, Sidewind, 12½″ Travel, No Handle
- 4″ square tubing, 7-gauge superior alloy steel construction
- Durable painted outer tube and drop leg with gray powdercoat finish
- Drop leg option with 5 positioning holes for versatile mounting
- Easy-access gear box with grease fitting for routine maintenance
- Spring return drop leg or non-spring return drop leg option
- 12.5″ screw travel with 13.5″ of additional adjustment
- Front-facing or side-facing drop-leg plunger pin
- Painted (with or without labels) or optional powdercoat finish
- Sidewind models feature a 1:1.5 gear ratio for smooth cranking
For best results, verify compatibility with your original equipment, perform regular grease and inspection routines, and ensure proper mounting torque. Proper maintenance will help maximize service life and reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 10,001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12,000 LB Static Capacity |
| Jack Lifting Load Capacity | 10,000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non-Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 53 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.3 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
