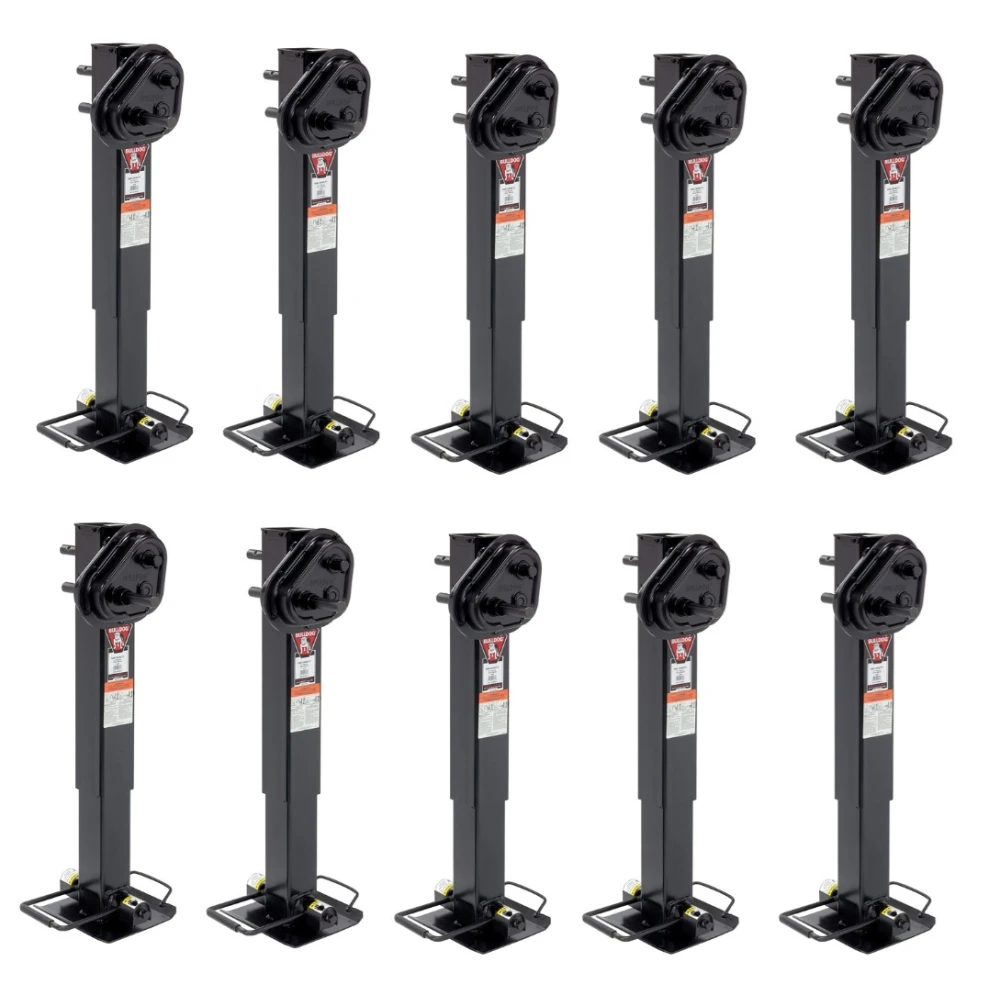

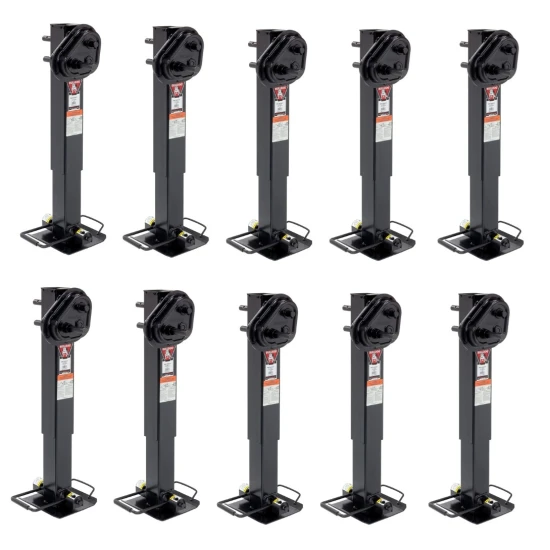

Bulldog 10x 25K 2-Speed Square Trailer Jack w/ Twin Cam Gearbox & Drop Leg for Heavy-Duty
Model: BDTJ80Bundle of 10 Bulldog 25K 2-Speed Twin Cam Square Trailer Jacks with Drop Leg
Get ten of the industry’s strongest heavy-duty trailer jacks, each featuring a dual-speed gearbox and a patented Twin Cam™ drop leg mechanism. Built for rugged performance, these jacks support up to 25,000 lbs, offering fast operation under load and precise control. Perfect for agricultural, construction, and industrial trailers requiring reliable lifting and adjustment.
Bundle Contents:
- QTY (10): Twin Cam™ 2-Speed Square Trailer Jack, 25,000 lbs. Support Capacity, Sidewind, 12-1/2" Travel with Drop Leg
- Industry’s strongest drop leg jack with enclosed Twin Cam™ pin mechanism
- Twin Cam™ mechanism increases vertical capacity with dual 3/4" pins
- Two-speed gearbox: high gear 9 turns/in for loads up to 12,500 lbs; low gear 29.5 turns/in for loads up to 25,000 lbs
- Easy access grease fittings for internal gear lubrication
- Patented screw stop for extended screw/nut life and serviceable internal components
- 12.5" of screw travel and drop leg with 5 positions providing 13.5" adjustment
- 10" × 10" heavy gauge steel foot plate and 1" diameter steel input shaft
- Spring return and non-spring return drop legs available
- Compatible with BULLDOG Powered Drive electric motor system (reduces lift capacity to 7,500 lbs)
For optimal performance, verify fitment with your original equipment manufacturer specifications and perform periodic maintenance on grease fittings, screws, and footplates to ensure long-lasting, trouble-free use.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 25,000 LB Static Capacity |
| Jack Lifting Load Capacity | 25,000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.5 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$6,398 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$6,398 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ80
- Includes: 2-Speed 25K Dual Cam Jack
