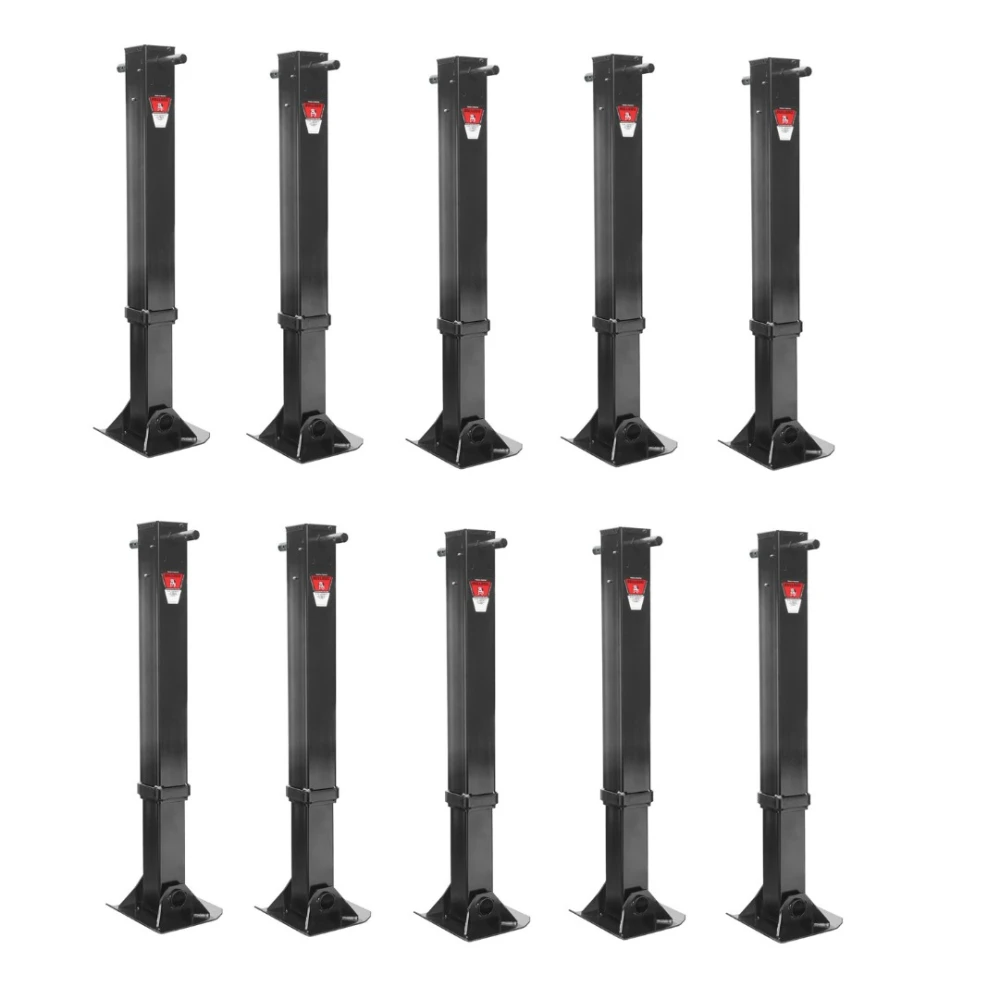

Bulldog 10x 45K Trailer Jack Weld-On w/ 17" Lift Fixed Leg
Model: BDTJ6010-Pack Bulldog 45K Heavy-Duty Weld-On Trailer Jacks with 17″ Lift Fixed Leg
Equip your heavy-duty trailers with a reliable set of welded-on jacks designed for maximum lifting capacity and durability. This 10-pack includes Bulldog’s single-speed, direct-weld mount jacks—each delivering 45,000 lb lifting capacity and 90,000 lb static capacity. Built for rugged performance, these jacks feature a 17″ lift range, high-efficiency double lead screws, and a black powdercoat finish.
Bundle Contents:
- QTY (10): Trailer Jack Accessory, Heavy Duty Jack, Single Speed, Direct Weld Mount (Crank Sold Separately)
- AAR & TTMA rated (all values per pair): 45,000 lbs. lifting capacity (@ 100 ft. lbs input torque), 90,000 lbs. static capacity
- Competitive cranking ratios: Low speed gear 27.3 turns per inch; High speed gear 4.5 turns per inch
- 17″ of travel
- High-efficiency, double lead screw
- Heavy-duty, self-leveling screw
- Crank included – cross shaft sold separately
- Black painted finish
- Industry-leading 5-year warranty
Before installation, verify compatibility with your trailer frame and perform regular maintenance—greasing gearboxes and checking fasteners—to extend jack life and ensure safe operation.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 17 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 45000 LB Static Capacity |
| Jack Lifting Load Capacity | 22500 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 32 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 31.7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 48.7 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
