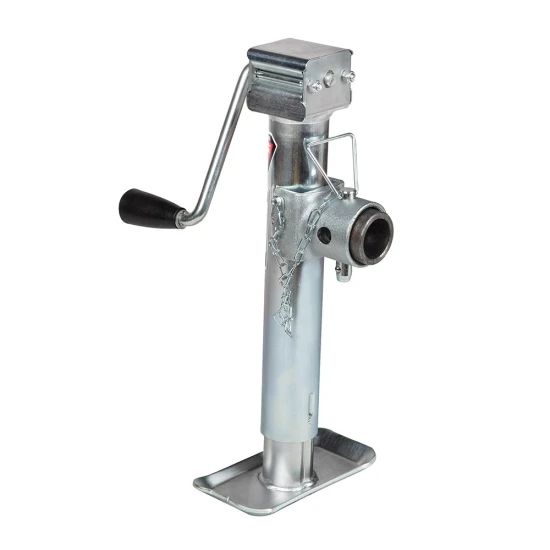

Bulldog 10x 5K Pipe Mount Swivel Trailer Jack w/ 10" Lift and Sidewind Handle
Model: BDTJ196Bulldog 10x 5K Pipe Mount Swivel Trailer Jacks with 10" Lift & Sidewind Handle
This bundle includes 10 heavy-duty Bulldog pipe mount swivel trailer jacks, each rated for 5,000 lbs and featuring a 10" lift with a convenient sidewind handle. These jacks are trusted across agricultural, livestock, and commercial trailer industries for their field-proven durability and dependable performance.
Bundle Contents:

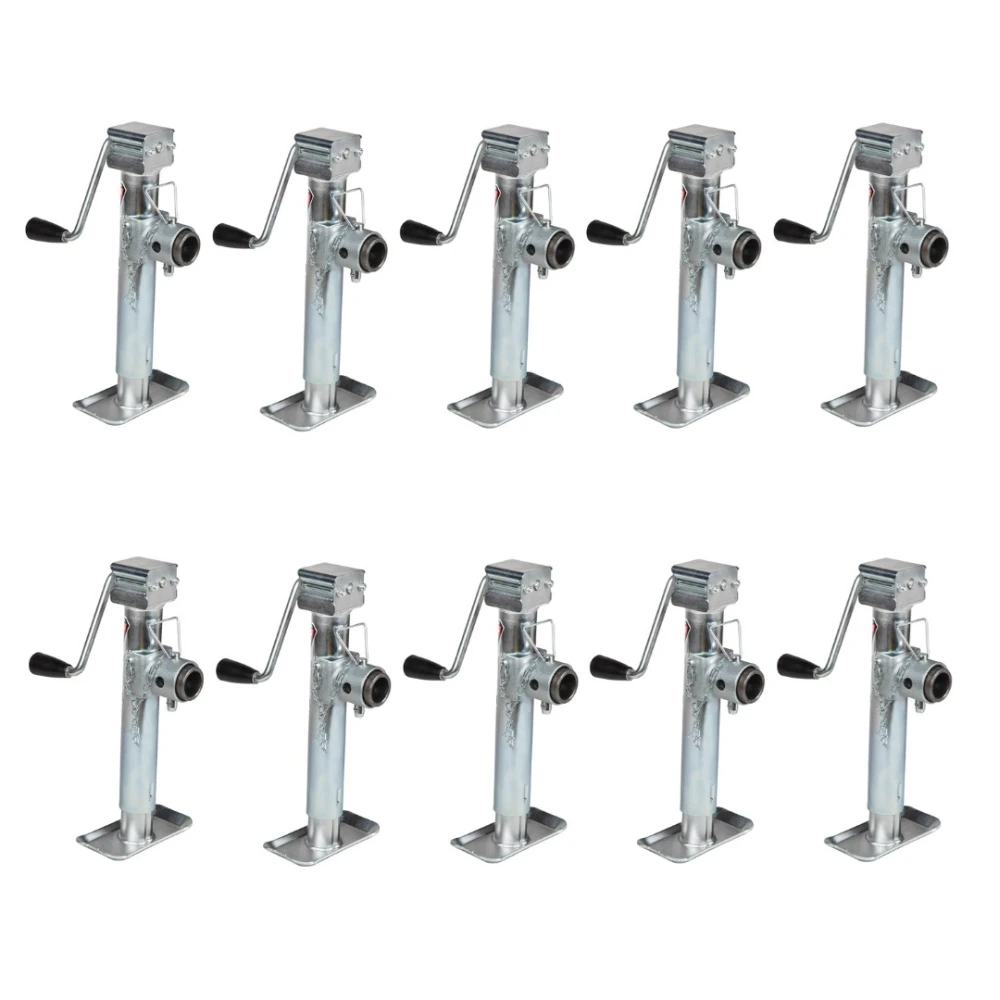

- QTY (10): Bulldog 5K Pipe Mount Swivel Trailer Jack – 10" Lift, Sidewind
- 5,000 lbs lift capacity per jack

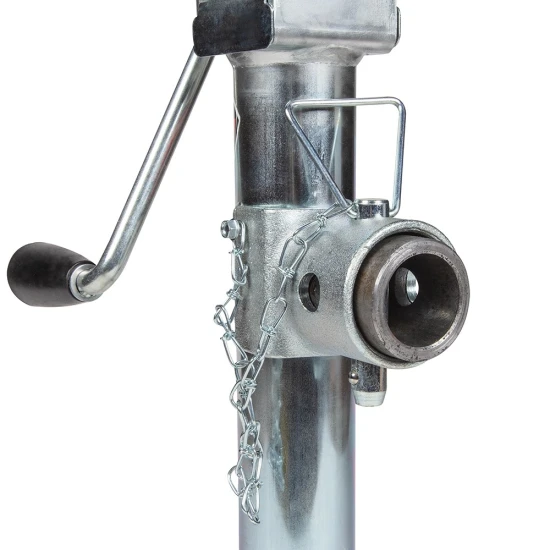

- Pipe mount swivel with weld-on bracket

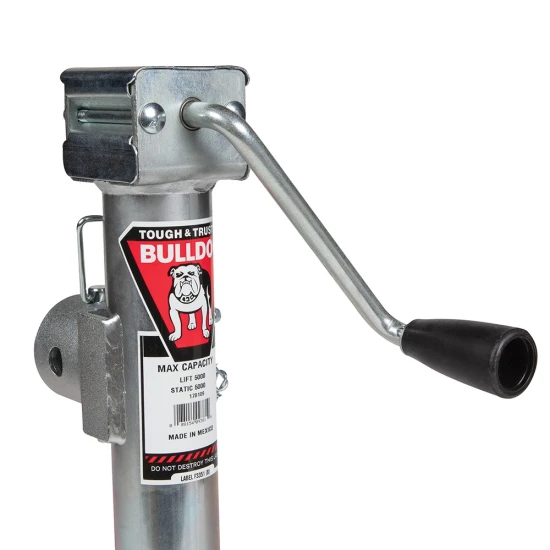

- Sidewind handle for easy cranking

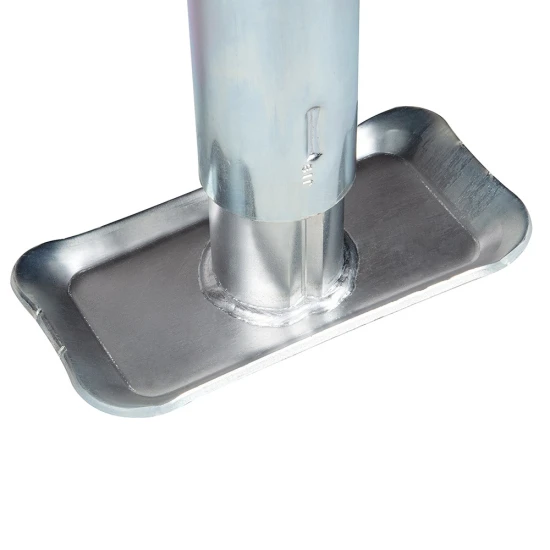

- Fixed leg with footplate base
- 2.25" outer tube, 2" inner tube
- Corrosion-resistant silver zinc finish
- 10" travel range with 20.5" max extended height
Always verify fitment and capacity with your original trailer equipment. Regular maintenance of jacks is recommended to ensure long-term reliability and performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Medium Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Finish | Silver Zinc Plated |
| Static Load Capacity | 5000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Foot Type | Footplate |
| Leg Style | Fixed Leg |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tubing Diameter | 2 Inch |
| Shape | Round Jack |
| Bracket-to-Bottom (Retracted) | 10.5 Inch |
| Bracket-to-Bottom (Extended) | 20.5 Inch |
| Bracket-to-Top Clearance | 6.2 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$936 99 $1,277.80 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,277.80 $936 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ196
- Includes: Pipe-Mount Swivel Jack
