Bulldog 10x 5K Snap Ring Swivel Trailer Jack w/ 15" Lift Topwind and Footplate
Model: BDTJ345Bulldog 10x 5,000 lb Snap Ring Swivel Jacks – 15" Lift, Topwind Handle & Footplate
This high-performance trailer jack bundle includes 10 heavy-duty Bulldog snap ring swivel jacks, ideal for commercial, livestock, and agricultural trailers. Each jack offers dependable 5,000 lb lift capacity with a topwind crank, robust construction, and ergonomic design, making them a trusted solution for demanding environments.
Bundle Contents:

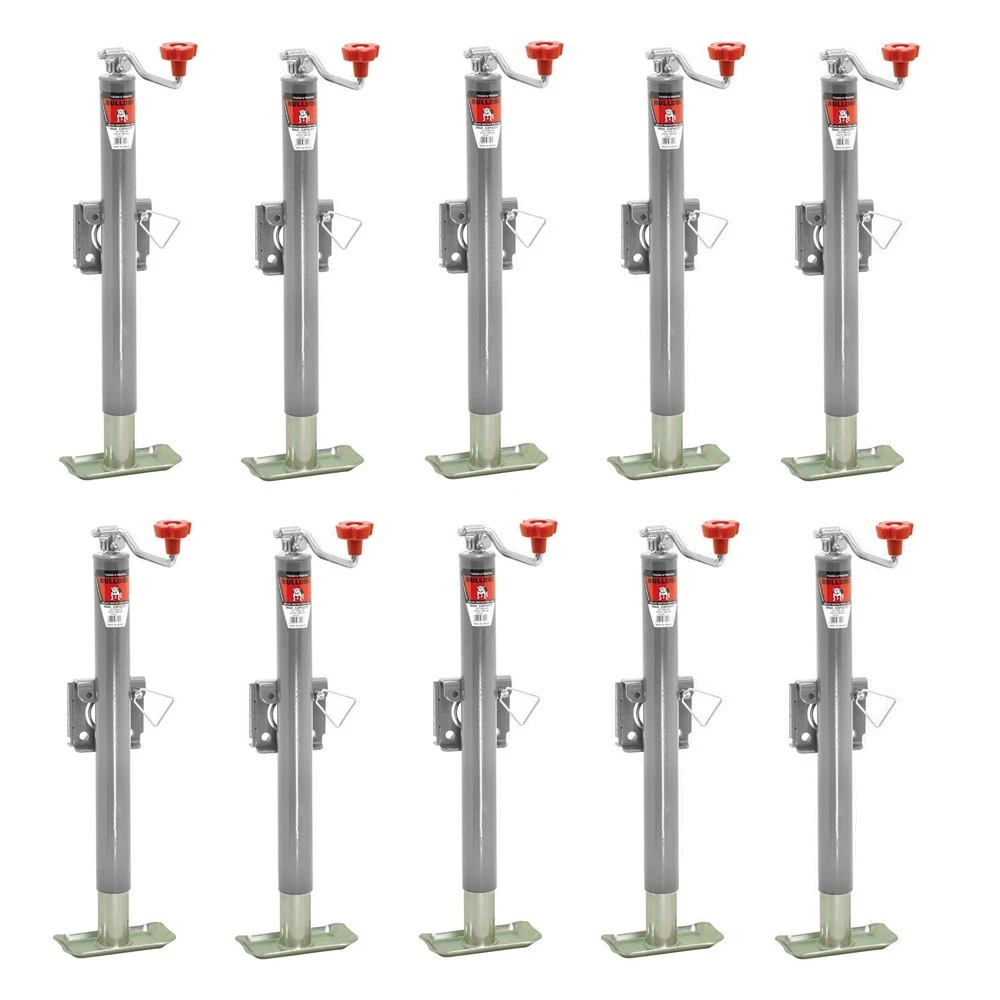

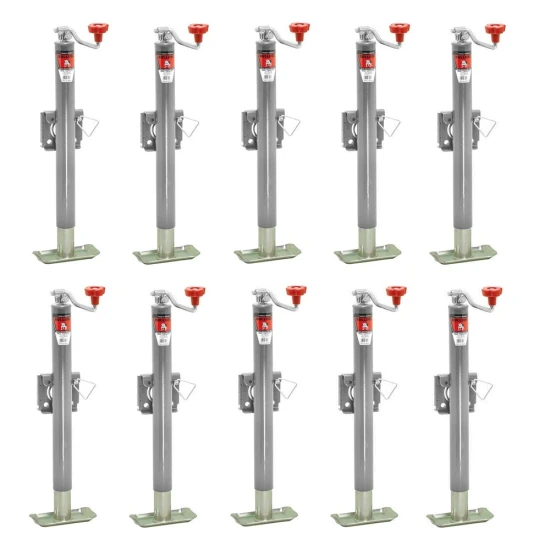

- QTY (10): Bulldog 5K Snap Ring Swivel Trailer Jack – 15" Lift, Topwind, Footplate
- 5,000 lb lift capacity with topwind handle
- Weld-on side mount with snap ring swivel design
- 15" of vertical lift; 2.25" outer tube, 2" inner tube
- Gray powder-coated outer tube and zinc inner tube
- Fixed leg with footplate for stable load support
- Ergonomic handle and precision-fitted parts
Always confirm fitment with your trailer’s mounting style and perform regular inspections to ensure long-term reliability and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Style | Snap Ring Swivel |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Foot Type | Footplate |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 LB |
| Lifting Load Capacity | 5000 LB |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tubing Diameter | 2 Inch |
| Swivel Type | Swivel |
| Shape | Round Jack |
| Leg Style | Fixed Leg |
| Bracket-to-Bottom Clearance (Retracted) | 14.50 Inch |
| Bracket-to-Bottom Clearance (Extended) | 29.50 Inch |
| Bracket-to-Top Clearance | 10 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$857 99 $1,147.60 25% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,147.60 $857 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ345
- Includes: Round Snap-Ring Swivel Jack
