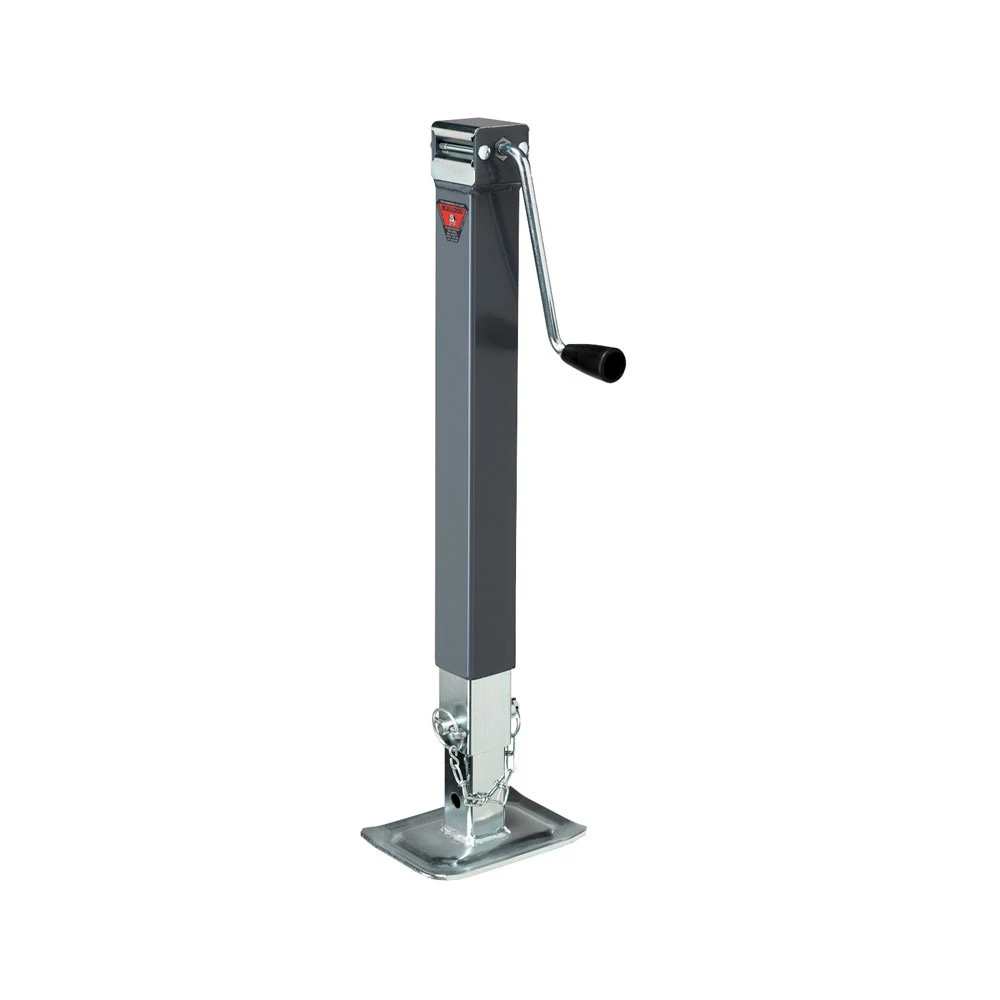

Bulldog 10x 8K Square Trailer Jack w/ 15" Lift Sidewind and Footplate

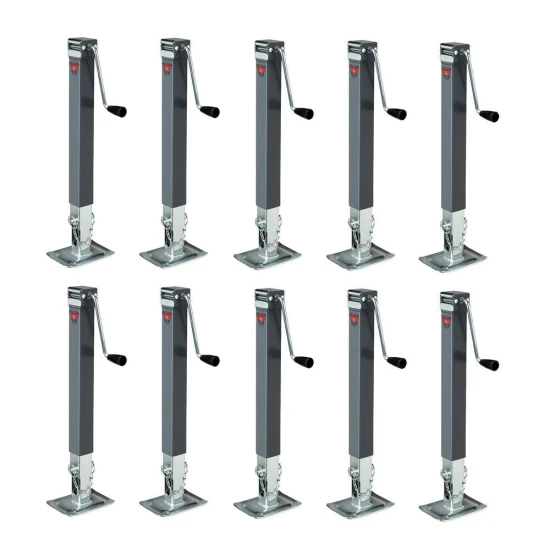

Model: BDTJ15210-Pack Bulldog 8,000 lb Square Sidewind Trailer Jack with 15″ Lift & Footplate
Get reliable support and smooth operation with this 10-pack of Bulldog 8,000 lb square sidewind trailer jacks. Ideal for agricultural, industrial, and utility trailers, each jack delivers exceptional side-load strength and a 15″ travel range for versatile height adjustment in tight spaces.
Bundle Contents:
- QTY (10): Square Trailer Jack, No Mount
- 8,000 lbs. support capacity
- Sidewind, weld-on design
- 15″ lift travel
- Painted outer tube – final finish or primer
- Zinc-plated inner tube & drop leg
- 4.7″ outer/inner tube overlap for optimal side load
- 5/8″ screw stem resists twisting off
- Patented screw nut stop prevents damage at full extension
- Bushing in top cap with eagle claw grip
- 1/4″ cross pin guards against shearing
- 1 : 1.33 gear ratio for smooth cranking
Always verify compatibility with your trailer’s OEM specifications and perform regular lubrication and inspections to prolong service life.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square Jack |
| Retracted Clearance | 25 Inch Bracket-to-Bottom |
| Extended Clearance | 54 Inch Bracket-to-Bottom |
| Top Clearance | User-Configurable |
| Exact Retracted | 25.06 Inch |
| Exact Extended | 53.56 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$1,093 99 $1,437.50 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,437.50 $1,093 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ152
- Includes: 8K Drop Leg Jack
