Bulldog 10x 8K Square Trailer Jack w/ 15" Lift Topwind Handle and Footplate
Model: BDTJ14810-Pack Bulldog 8K Square Trailer Jack with 15″ Topwind Lift & Footplate

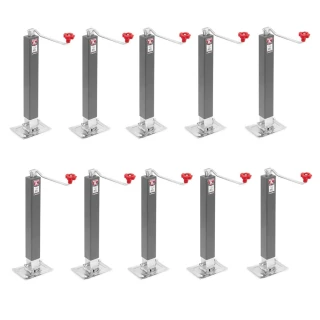

This bundle includes ten heavy-duty Bulldog square trailer jacks, each rated for an 8,000 lb static load. With a smooth topwind handle and durable footplate, these jacks are perfect for agricultural, construction, and utility trailers—especially where space is tight and 3″ or 4″ tubing won’t fit.
Bundle Contents:

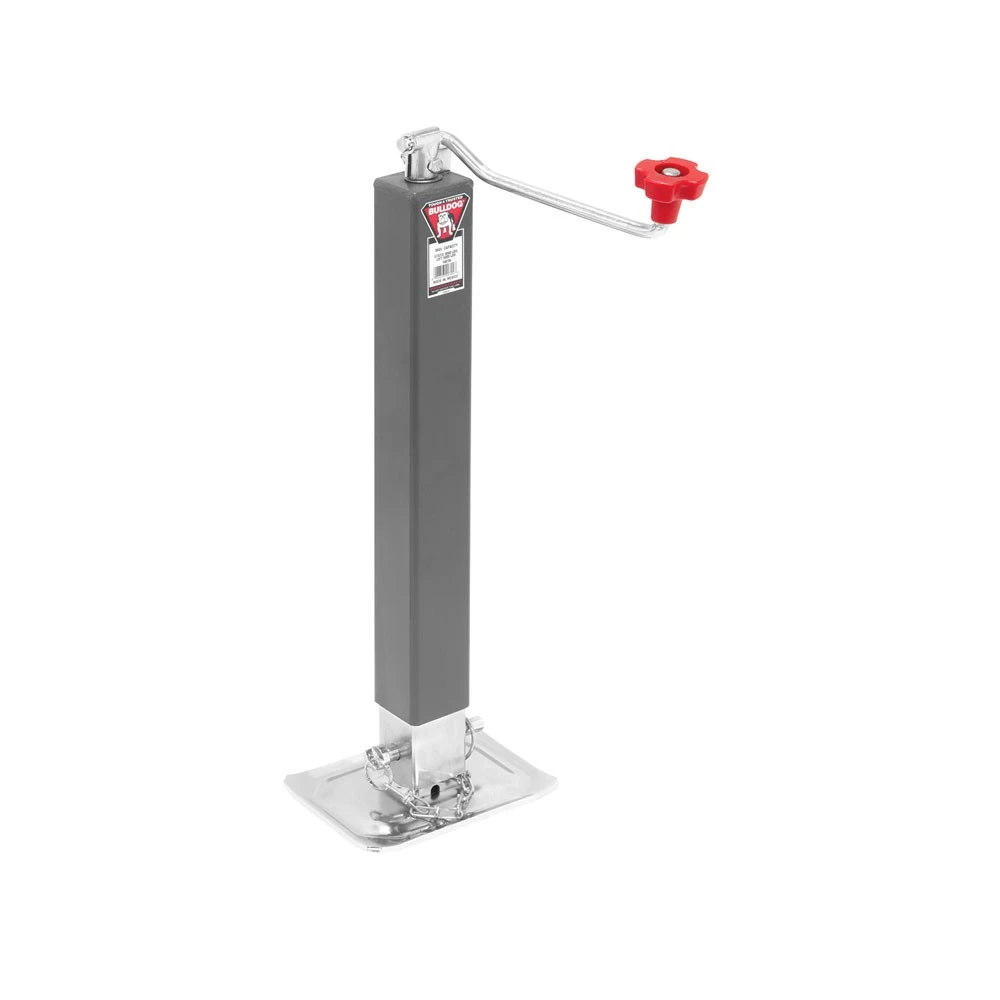

- QTY (10): Bulldog 8,000 lb Square Trailer Jack with 15″ Topwind Lift & Footplate
- Supports up to 8,000 lb static capacity
- 15″ travel with topwind handle and eagle claw grip
- Zinc-plated inner tube and drop leg for corrosion resistance
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem minimizes risk of twisting
- Patented screw-nut stop prevents damage at full extension
- 1:1.33 gear ratio for smooth operation
Always verify with your trailer’s original equipment recommendations and inspect jacks regularly for wear, lubrication, and proper function.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non-Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 23 Inch |
| Bracket-to-Bottom Clearance (Extended) | 51 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bottom Clearance (Retracted) | 22.66 Inch |
| Exact Bottom Clearance (Extended) | 51.41 Inch |
| Exact Top Clearance | User-Configurable |
