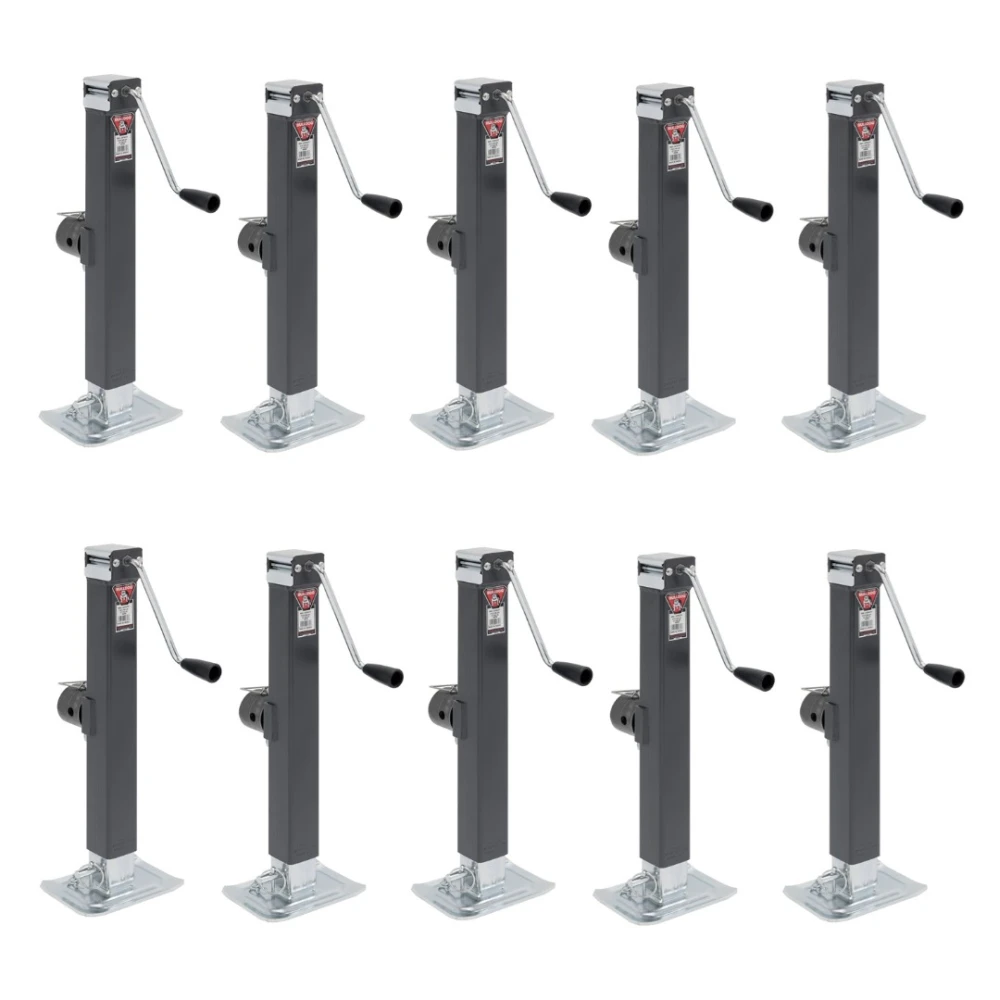

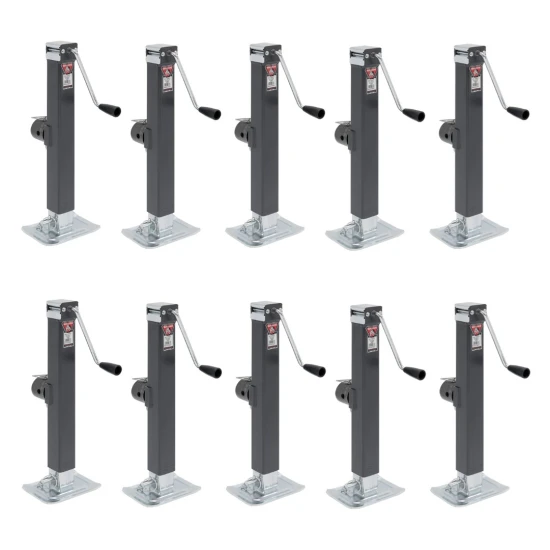

Bulldog 10x 8K Square Trailer Jack w/ Tubular Swivel Mount and 15" Lift
Model: BDTJ11610-Pack Bulldog 8,000 lb Square Sidewind Trailer Jacks with 15" Lift & Tubular Swivel Mount
Get a complete set of ten rugged Bulldog square trailer jacks, each rated for 8,000 lb support capacity. Featuring a 15" lift range and tubular swivel mount, this bundle ensures reliable stability and easy operation on heavy-duty, agricultural, and industrial trailers. Ideal for fleets or multi-jack applications where durability and performance matter most.
Bundle Contents:
- QTY (10): Bulldog 8,000 lb Square Trailer Jack with Tubular Swivel Mount and 15" Lift
- 7001–8000 lb support capacity
- Painted outer tube finish for final coating or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- 4.7" outer/inner tube overlap for optimal side-load performance
- 5/8" screw stem to prevent twisting under load
- Patented nut stop to protect screw and nut at full extension
- Sidewind handle with 1:1.33 gear ratio for smooth lifting
- Drop leg footplate, non-spring return design
- Swivel mount for 360° positioning
We recommend verifying your trailer’s original mounting configuration, performing regular lubrication, and inspecting load capacities before use to ensure safe and reliable operation.
| Specifications: | |
|---|---|
| Weight Capacity | 7001-8000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 8000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.5 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 13 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 41 Inch |
| Approx Bracket-to-Top Clearance | 12 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 12.66 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 41.16 Inch |
| Exact Bracket-to-Top Clearance | 12.40 Inch |
