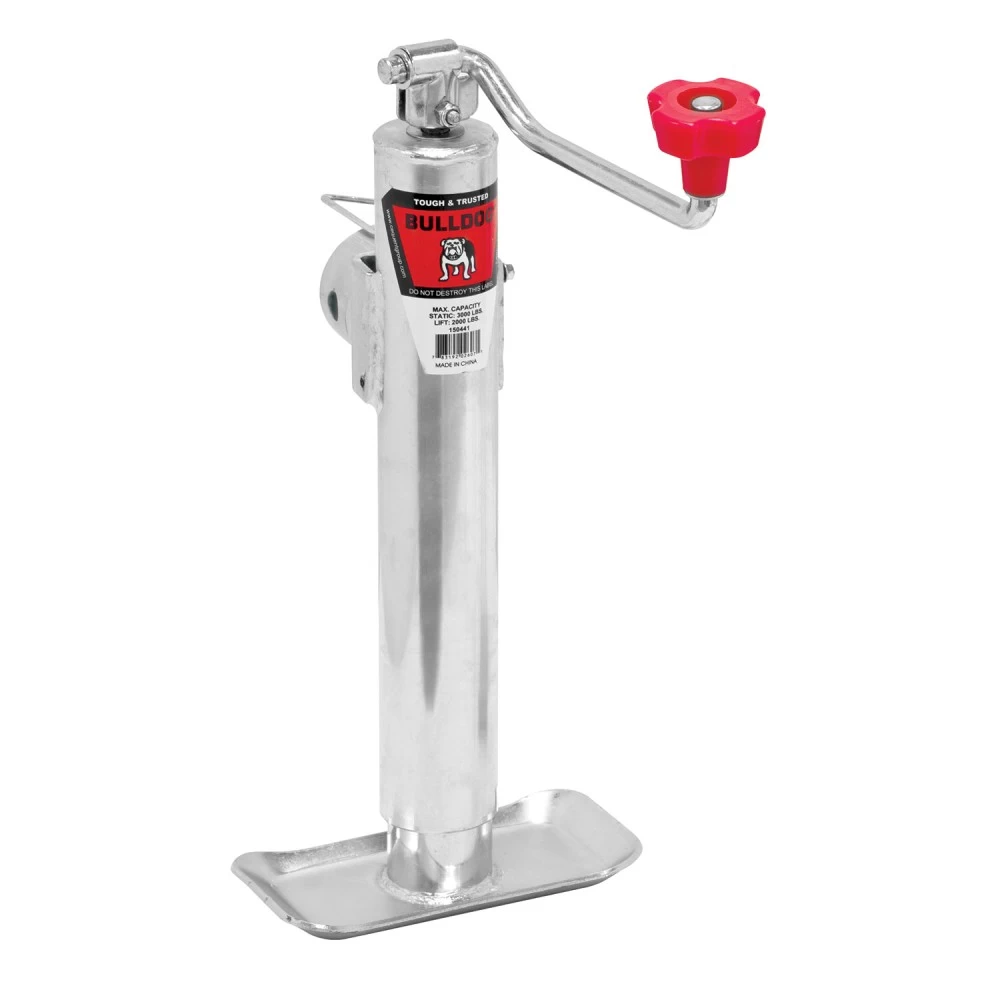

Bulldog 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 10" Lift w/ Pull Pin Zinc
$87.37
- Stock: In Stock
- Manufacturer: Bulldog
- Model: 150441
BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Zinc outter and inner tubes
-
Limited 5-year warranty
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 11"
-
Extended Bracket Height: 21"
-
Travel/Lift: 10"
-
Clearance: 4" from bracket to top
-
Weld-On Tubular Mount
-
Male Mount Included
-
9/16" pin and foot plate
-
Handle Radius: 6.65"
Specification | |
Jack Style | Pipe Mount |
Finish | Zinc |
Static Capacity | 2000 |
Lift Capacity | 2000 |
Lift Style | Topwind |
Travel | 10" |
Retracted | 11.00" |
Extended | 21.00" |
Clearance | 4.00" |
Inner tubing diameter | 2" |
Leg | Fixed Leg |
Outer tubing diameter | 2.25" |
Swivel | Yes |
Foot | Footplate |
Jack Shape | Round |
Description Facts | Weld-on tubular mount, with 9/16” pin and foot plate. Clear zinc finish. Mating mount sold separately. |
