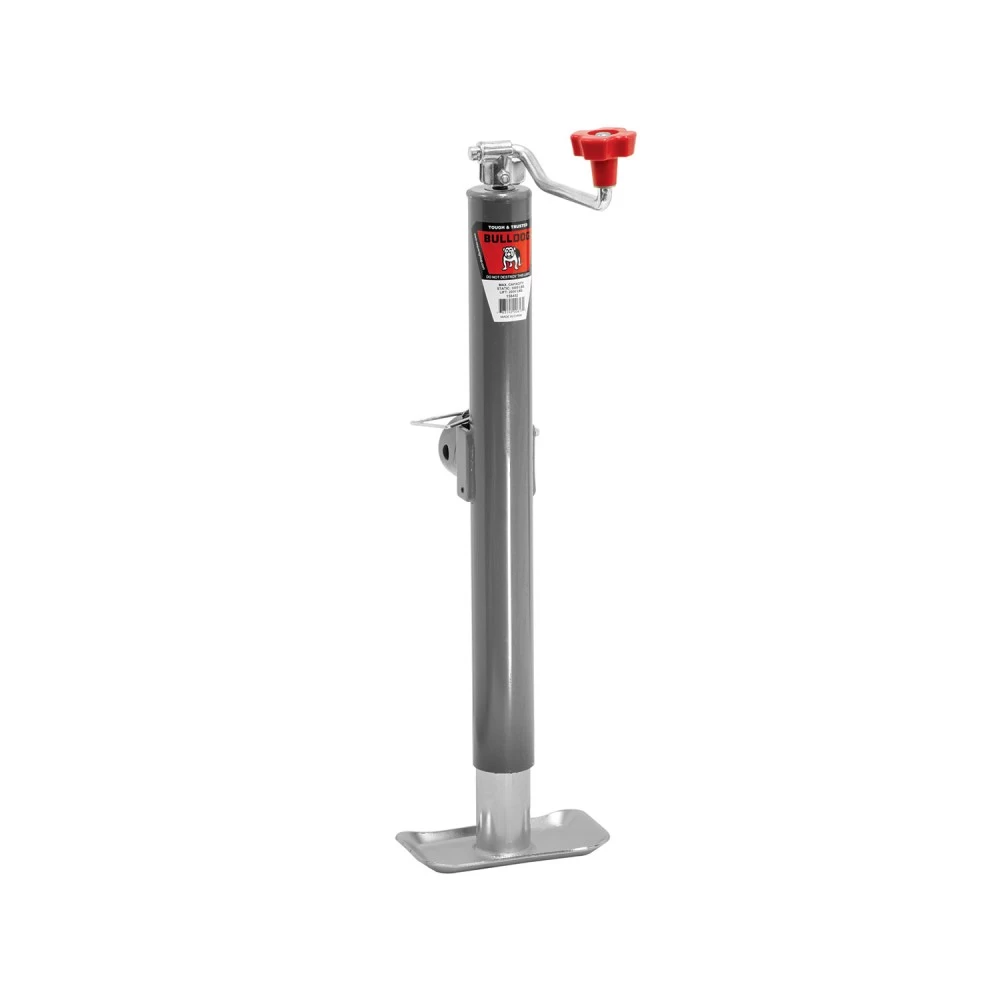

Bulldog 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 15" Lift w/ Pull Pin
Model: 158452BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Grey painted outer and clear zinc inner tube
-
Limited 5-year warranty
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 14.50"
-
Extended Bracket Height: 29.50"
-
Travel/Lift: 15"
-
Clearance: 10" from bracket to top
-
Weld-On Tubular Mount
-
Male Mount Included
-
9/16" pin and foot plate
-
Handle Radius: 6.65"
$97 07 $105.76 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$105.76 $97 07
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $24.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 158452
- UPC: 783192006172
- Includes: Round Pipe Mount Swivel Jack
Description
Get Expert Help
Bulldog 2,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 15" Lift w/ Pull Pin Install Notes
Installation Instructions for Tongue Jacks
Tools Required:
- Ratchet
- Socket set
- Torque wrench
Step-by-Step Instructions:
General Installation Notes:
- Ensure no interference with the tow vehicle, tongue, ground, or mounted accessories in all positions (stationary or in motion).
- Verify there is no obstruction in handle swing or swivel positions, both before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure with locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Installation:
- Snap Ring Models:
- Place the jack bracket over the mount and fully seat the snap ring into the groove.
- Bolt-Through Models:
- Insert the jack bracket into the recessed opening on the mount.
- Place the small end of the bushing into the jack bracket and onto the bolt.
- Tighten the locknut until there is minimal movement in the bushing.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- Weld the jack in place using a 3/16” fillet weld by an AWS-certified welder.
- Align the jack with the coupler before welding, ensuring proper positioning of the foot (if equipped).
- For Bolt-On Applications:
- Use three 3/8"-16 grade-5 bolts with washers.
- Torque bolts to 15-20 ft-lbs.
Direct-Mount Instructions:
- Weld the jack directly to the mounting surface using a 3/16” fillet weld at two points on each side of the jack.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Never exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid applying side forces as they can cause jack failure.
- Ensure all locking mechanisms (plunger pins, snap rings) are properly engaged.
- Do not attempt to adjust the drop foot or leg while under load.
- Always replace damaged or worn parts before use.
- Keep children away from the product and the supported load.
Maintenance:
- Lubricate internal gearing and bushings annually with automotive grease for side-wind models.
- Apply light oil to the handle unit for both side-wind and top-wind models.
- Flush the assembly with fresh water and reapply lubricant if used in marine environments.
Warranty Information:
This product is covered under a limited warranty. For complete warranty details and exclusions, refer to the original product documentation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, refer to the manufacturer's full documentation.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow these instructions may result in property damage, serious injury, or death.
