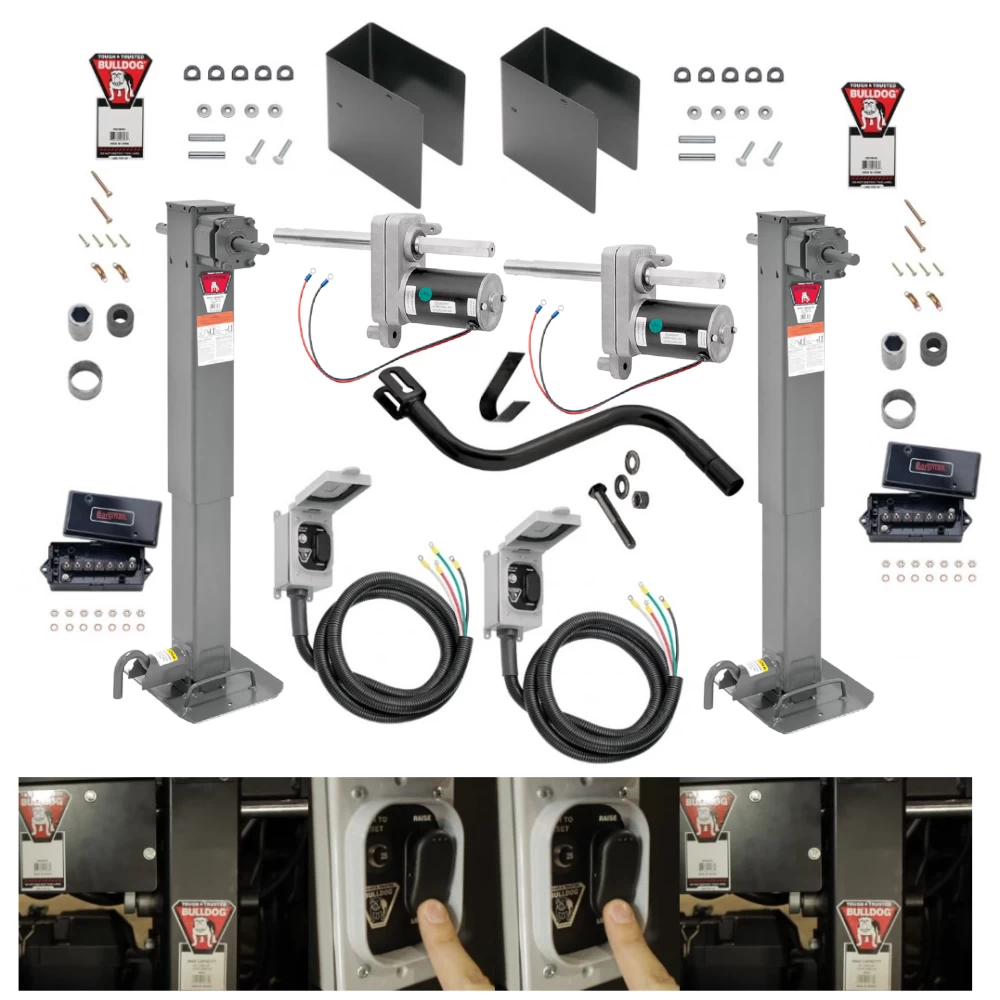

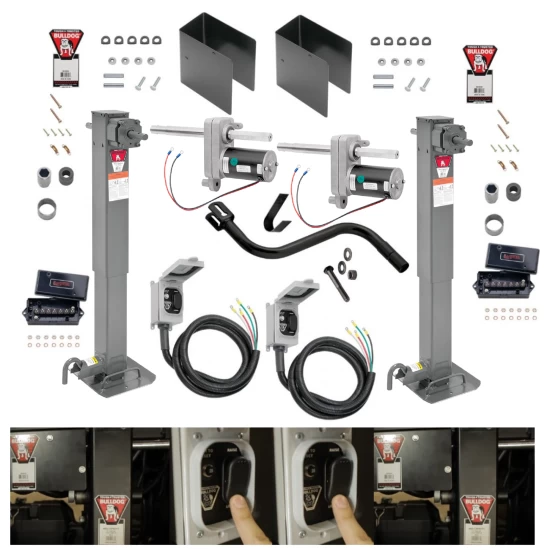

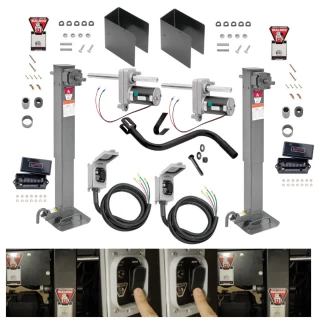

Bulldog 24K 2‑Speed Electric Leveling Dual Motor Landing Gear Set Tandem Two Speed Trailer Jacks Planetary Gearbox Non Spring Return Drop Legs Curbside Plunger Pins, Tandem Twin Bulldog Electric Powered‑Drive Motors, Manual Override Crank
Model: 183401X2 1824180100X2 1400920383Bulldog 2-Speed Planetary Gearbox Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

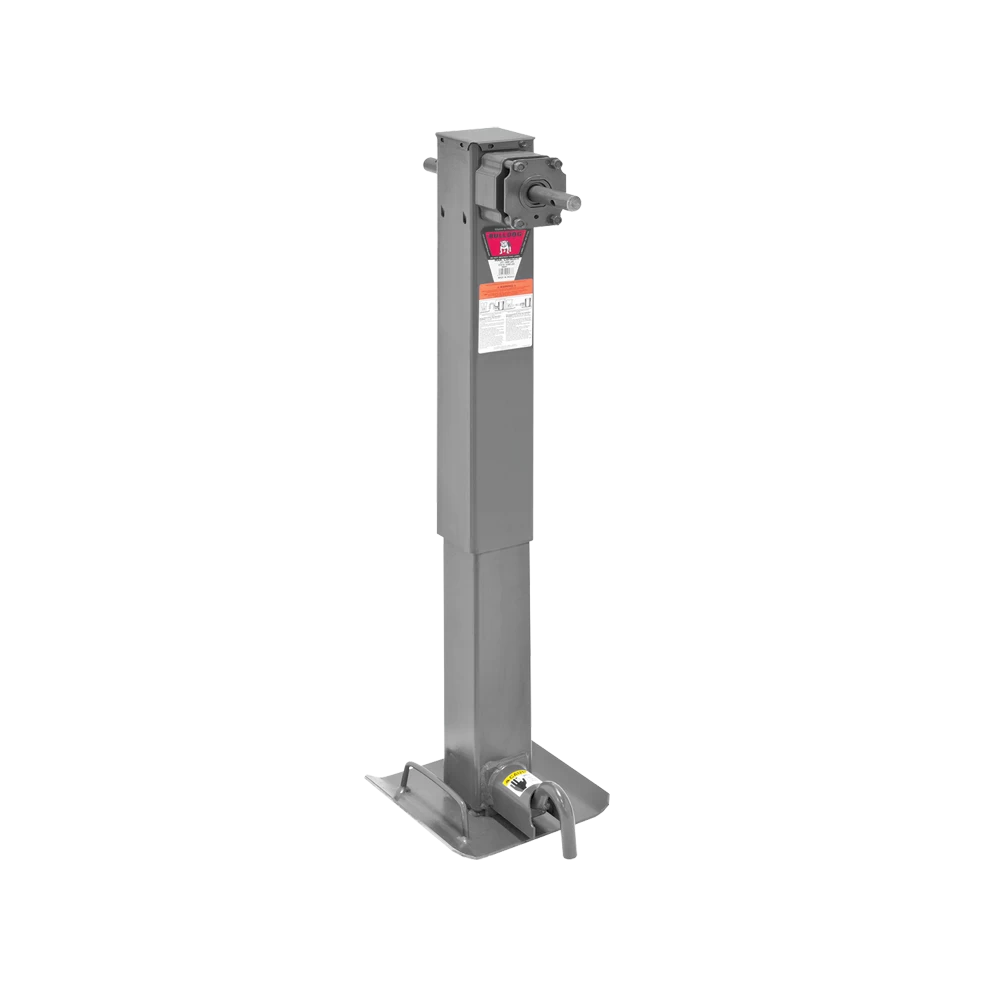

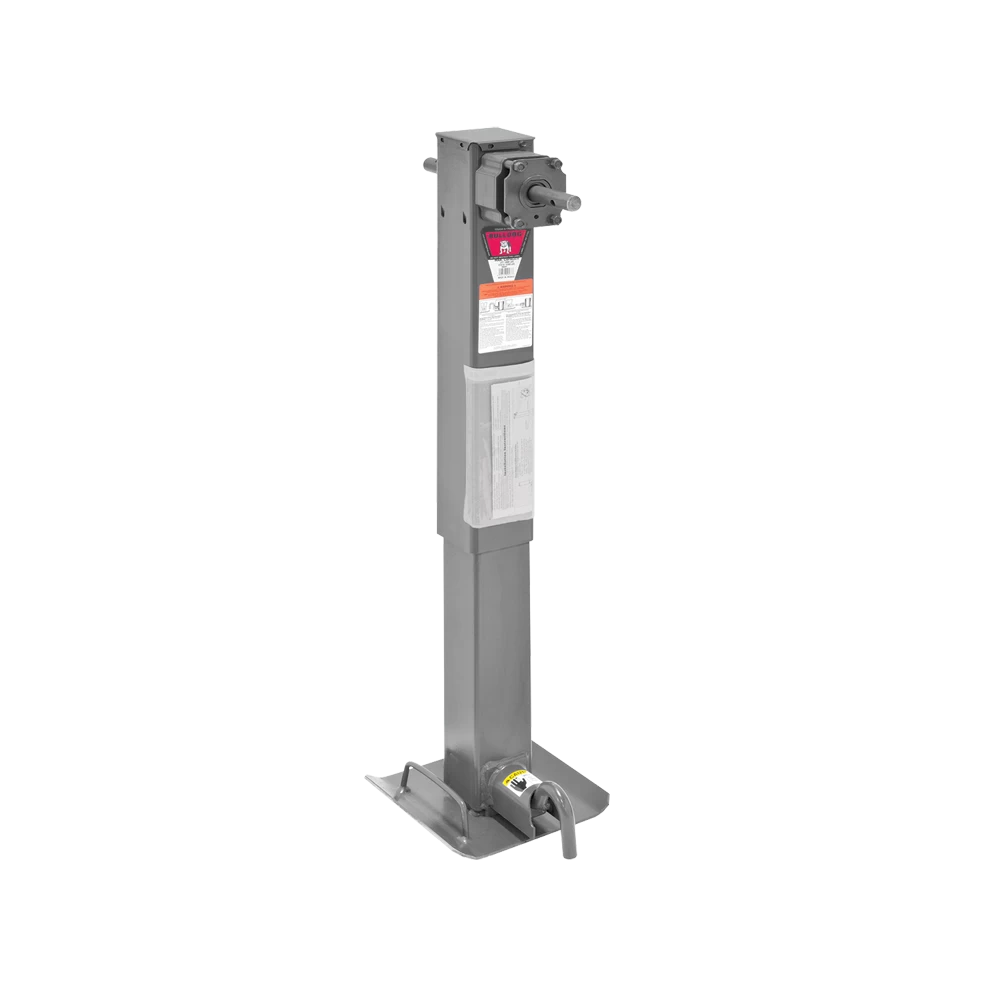

Introducing the Bulldog 2-Speed Landing Gear 2-Pack (Model 183401) equipped with Planetary Gearbox and Non-Spring Return Drop Leg, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (Model 1824180100). Designed for a variety of trailers, this bundle offers strength and efficiency, complemented by a Manual Override Crank.
Please Note: Each jack features a separate motor, requiring individual switches for optimal operation. For leveling, separate wiring is recommended. Both motors may connect to one battery, but a single switch for both is not advised.
Key Features:
- Durable 4" Square Tubing made from 7-gauge alloy steel, painted for corrosion resistance.
- Adjustable Drop Leg with 5 positioning holes for flexible setup.
- 2-Speed Planetary Gearbox for efficient cranking, with low and high gear settings.
- Seamless gear shifting thanks to the planetary gearbox design.
- Non-Spring Return Drop Leg for easy adjustment and 12.5" of screw travel.
- Curbside Facing Plunger Pin for convenience.
- Powder Coat Finish for durability and protection.
- Sidewind Model with a 1:1.5 gear ratio for smooth operation.
Experience the ease of a Springless Drop Leg for effortless adjustment.
ASABE S485 Compliant: Bulldog products adhere to ASABE S485 standards for quality and reliability.
Technical Specifications:
- Bracket Height: Retracted at 29-1/2", Extended at 42", with a total lift of 26".
- Travel: 12-1/2" with drop legs offering an additional 13-1/2".
- Manual Lift Capacity: 10,000 lbs per Jack, with Electric Lift Capacity of 7,500 lbs.
- Outer Tube Dimensions: 4" width made from 7-gauge steel.
- 5-year warranty for peace of mind.
Bulldog Electric Motor Powered-Drive Kit 2-Pack:
- Designed for faster, easier lifting and compatible with Bulldog Single-Speed Landing Gears.
- Compact design, quiet operation, and maintenance-free with weatherproof components.
- Electric Lift Capacity: 7,500 lbs per motor, ensuring efficient lifting.
- Application: Suitable for Bulldog Single-Speed Landing Gears with a 1" shaft size.
Upgrade with the Bulldog 2-Speed Planetary Gearbox Landing Gear and Leveling Jacks 2-Pack Bundle for enhanced trailer functionality. For inquiries or to order, contact us at 877-869-6690. Invest in this ultimate bundle for superior performance and reliability.
$2,118 49 $3,252.37 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$3,252.37 $2,118 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $529.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 183401X2 1824180100X2 1400920383
- Includes: 24K 2-Speed Dual Leanding Gear Jacks + Dual Motors
Description
Get Expert Help
Bulldog 24K 2-Speed Electric Leveling Dual Motor Landing Gear Set Tandem Two Speed Trailer Jacks Planetary Gearbox Non Spring Return Drop Legs Curbside Plunger Pins, Tandem Twin Bulldog Electric Powered-Drive Motors, Manual Override Crank Install Notes
Installation Instructions for 12,000 lb. Square Tube Jack
General Installation Notes:
- Follow all instructions provided without any modifications.
- Do not position any part of the body under the jack or the load being supported.
- Fully retract and/or rotate the jack before towing.
- Verify the drop leg pin is fully inserted before using the jack.
- Block wheels to prevent rolling when operating the jack or coupling the trailer.
- Never exceed the maximum rated capacity. Refer to markings or decals on the product for rated capacity.
- Avoid excessive side forces, as they may lead to jack failure.
- Replace bent, broken, or worn parts before use.
- Use only on flat surfaces. For tandem applications, align jacks to share the load equally.
- All welding must be performed by an AWS-certified welder.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- Welding must be performed by an AWS-certified welder.
- Apply three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface. Space welds as far apart as possible for maximum load strength.
- For tandem applications, align jacks carefully to ensure they raise and lower together, sharing the load.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically and secure the jack to the pivot tube with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Verify the jack is not supporting any load.
- Place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin to disengage, then carefully move the leg to the desired position.
- Rotate the pin to engage it into the adjustment hole and ensure it is fully seated.
- Check for no clearance between the pin and housing. Lubricate if necessary. If the pin cannot be fully seated, do not use the jack.
Non-Spring Return Drop Leg:
- Verify the jack is not supporting any load.
- Grasp the handle of the footplate to control the descent of the drop leg.
- Rotate the drop leg pin to disengage, then move the leg to the desired position.
- Rotate the pin to engage it into the adjustment hole and ensure it is fully seated.
- Check for no clearance between the pin and housing. Lubricate if necessary. If the pin cannot be fully seated, do not use the jack.
Maintenance:
- Annually lubricate the gears, bushings, and screw of the jack with automotive grease.
- For side-wind models, use a grease gun at the lubrication points near the input shaft and rotate the handle to distribute the grease.
- Apply lightweight oil to the input shaft bushings and drop leg pin assembly.
- Keep the drop leg pin and spring clean and lubricated.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points during operation.
- Never adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects in workmanship under normal use.
- Exclusions: Wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Contact Information:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Powered Drive for Jacks
Tools Required:
- Welding equipment (performed by an AWS-certified welder)
- Standard tools for bolts, nuts, and wiring
Safety Instructions:
- Never position any part of the body under the jack or supported load.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before using the jack.
- Avoid excessive side forces to prevent jack failure.
- Disconnect the battery ground cable before installation to prevent electrical shock.
- Replace bent, broken, or worn parts before use.
Installation Instructions:
Step 1: Remove the Jack Cross Shaft
- If the jack has non-welded hex bushings, consult the manufacturer's service bulletin for instructions.
- For planetary two-speed jacks, refer to the manufacturer's guidelines or specific service bulletins.
Step 2: Install the Powered Drive
- Temporarily replace the jack cross shaft with the powered drive/shaft assembly.
- Install the shaft on the non-geared side of the jack, ensuring the motor is facing downward and within the jack's profile.
Step 3: Position the Torque Stop Tube
- With the powered drive temporarily installed, use it to locate the torque stop tube on the jack's outer tube.
- Mark the location of the torque stop tube and weld it to the jack's outer tube using AWS-certified welding procedures.
Step 4: Final Assembly
- Reinstall the powered drive/shaft and place the energy-absorbing rubber bumper into the torque stop tube to prevent motor rotation.
- Attach the powered drive cover using 1/4” x 1” bolts and rubber-bonded washers. Torque bolts to 6 ft-lbs.
- Optionally, apply thread lock to the bolts.
Step 5: Tandem Jack Systems
- Use the included hex coupling to connect tandem jacks.
- Weld the coupling to a 1” Schedule 40 pipe and cross-drill a 3/8” hole to secure the second jack's cross shaft with a bolt and locknut.
Wiring Instructions:
- Disconnect the battery ground cable.
- Attach the terminal box to the trailer for connection of powered drive and harness leads.
- Route and secure all leads using non-split tubing or loom.
- Mount the switch box at a convenient location on the trailer.
- Reconnect the battery ground cable and test the powered drive operation.
- Seal all terminal box entrances with sealant to protect the wiring.
Operation:
- Raising the Trailer: Extend the drop leg and fully engage the pin. Press the "RAISE" switch until the trailer is fully lifted.
- Lowering the Trailer: Press the "LOWER" switch until the trailer rests on the ball and the jack is no longer under load.
- In the event of power loss, reset the breaker or manually crank the jack using the powered drive assembly.
Maintenance:
- The powered drive is sealed and maintenance-free.
- Regularly maintain the jack and battery system. Ensure all connections are tight and free of corrosion.
- Fully charge the battery before use.
Limited Warranty:
- 5-Year Limited Warranty: Covers material and workmanship defects under normal use.
- Excludes normal wear, misuse, or improper installation.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow instructions may result in property damage, serious injury, or death.
