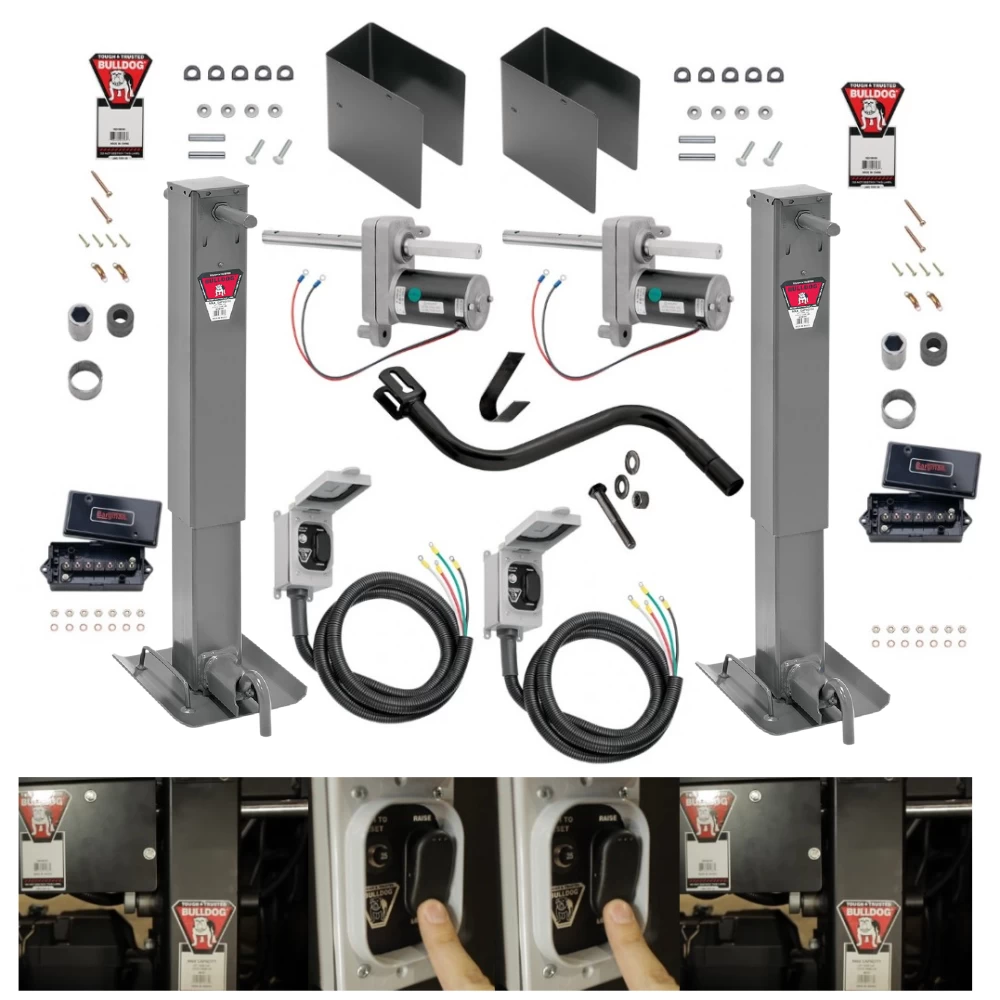

Bulldog 24K Electric Leveling Dual Motor Landing Gear Set Dual Single Speed Trailer Jacks Non Spring Return Drop Legs Curbside and Roadside Facing Plunger Pins w/ Manual Override Crank, Tandem Twin Bulldog Electric Powered-Drive Motors
Model: 182404 182411 1824200100X2Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!
Introducing the Bulldog Landing Gear 2-Pack (182404 and 182411), featuring Non-Spring Return Drop Legs, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). Designed for a wide range of trailers including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, this bundle enhances your trailer's functionality with added convenience and a Manual Override Crank.
Please Note: Each jack comes with a separate motor, requiring individual switches for operation, although both motors can be connected to the same battery for convenience. It is not advised to wire both jacks to a single switch.
Key Features:
- Durable 4" Square Tubing made from 7-gauge alloy steel.
- Corrosion-resistant paint on outer tubes and drop legs for extended longevity.
- Adjustable Drop Leg with five positioning holes for enhanced flexibility.
- Conveniently accessible gear boxes and grease fittings for easy maintenance.
- Non-Spring Return Drop Legs allowing for 12.5" of screw travel and 13.5" additional adjustment.
- Plunger Pins for both curbside and roadside, aligning with the handle side for convenience.
- Long-lasting powder coat finish for ultimate protection.
- Sidewind Model featuring a 1:1.5 gear ratio for efficient cranking.
Springless Drop Leg efficiency allows for effortless adjustment without manual lifting.
ASABE S485 Compliant: Bulldog products assure top-tier quality and reliability.
Technical Specifications:
- Bracket Height: 27-3/8" retracted to 39-7/8" extended.
- Total Lift of 26" with a travel of 12-1/2".
- Drop Legs offering 13-1/2" of adjustment.
- 10,000 lbs Manual and 7,500 lbs Electric Lift Capacity per Jack.
- Static Capacity of 12,000 lbs per Jack, totaling 24,000 lbs.
- Dimensions: Outer Tube Width 4", made from 7-gauge steel.
- 5-year warranty coverage.
Bulldog Electric Motor Powered-Drive Kit 2-Pack:
- Enhanced lifting efficiency compatible with Bulldog Single-Speed Landing Gears.
- Compact, quiet, and efficient design ideal for heavy-duty trailers.
- Maintenance-free with weatherproof components.
- Includes manual operation option for emergencies.
Motor Kit Specifications:
- 12 volt DC Motor Power with 7,500 lbs Electric Lift Capacity per motor.
- Designed for Bulldog Single-Speed Landing Gears.
- Dimensions: 16-1/2" x 3-1/8" x 7-3/16".
- Limited 5-year warranty.
For a seamless upgrade to your trailer's capabilities, consider the Bulldog Landing Gear and Leveling Jacks Bundle. Contact us at 877-869-6690 to order and take a step towards more efficient and effortless trailer operations. Invest today for superior performance and peace of mind.
$2,189 99 $2,825.46 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,825.46 $2,189 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: 182404 182411 1824200100X2
- Includes: 24K 1-Speed Dual Leanding Gear Jacks + Dual Motors
