Bulldog 24K Electric Leveling Dual Motor Landing Gear Set Dual Single Speed Trailer Jacks Non Spring Return Drop Legs Front Facing Plunger Pins, Tandem Twin Bulldog Electric Powered-Drive Motors, Manual Override Crank

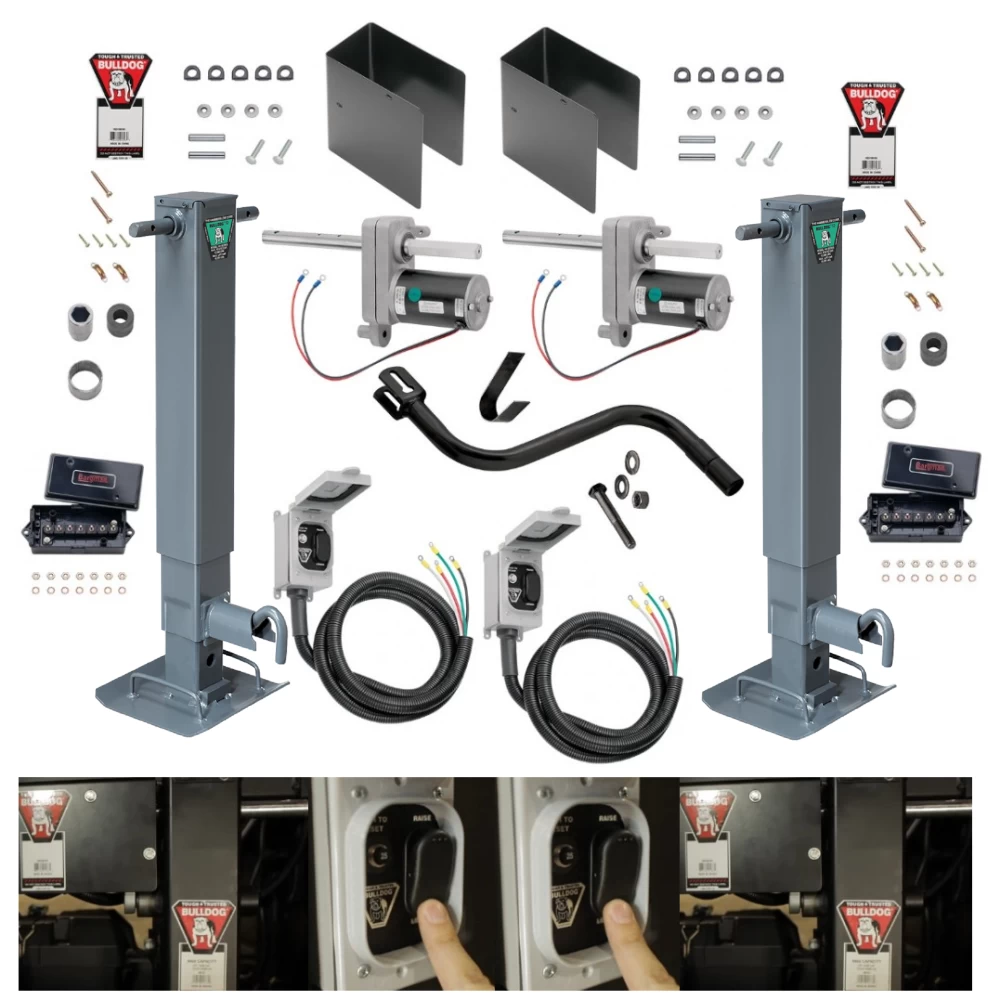

Model: 182415X2 1824200100X2 1400920383Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!
Introducing the Bulldog Landing Gear 2-Pack (182415), featuring Non-Spring Return Drop Legs, complemented by the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). Designed for a vast array of trailers, including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, this bundle offers unparalleled efficiency and convenience, enhanced with a Manual Override Crank for emergencies.
Please Note: Each jack comes with its own motor, requiring individual switches for optimal operation. While it's feasible to connect both motors to a single battery, it is advised against wiring both jacks to a single switch to utilize them effectively as leveling jacks.
Key Features:
- Durable 4" Square Tubing made from 7-gauge alloy steel for robust support.
- Protective paint on outer tubes and drop legs for corrosion resistance and longevity.
- Five adjustable positioning holes on drop legs for versatile setup configurations.
- Convenient gear box access and grease fittings simplify routine maintenance.
- Non-Spring Return Drop Legs allowing for 12.5" of screw travel and an additional 13.5" of adjustment.
- Front-Facing Plunger Pins for added operational convenience.
- Durable powder coat finish ensures long-lasting protection against the elements.
- Sidewind model featuring a 1:1.5 gear ratio for efficient and smooth cranking.
Effortlessly adjust drop legs with a simple pin pull, eliminating manual lifting.
ASABE S485 Compliant: Bulldog products guarantee top-tier quality and reliability, meeting stringent standards.
Technical Specifications:
- Bracket Height from 27-3/8" retracted to 39-7/8" extended, offering a total lift of 26".
- 13-1/2" Drop Legs for extensive adjustability.
- 10,000 lbs Manual and 7,500 lbs Electric Lift Capacity per Jack, with a combined Static Capacity of 24,000 lbs.
- Outer Tube Dimensions include a width of 4" made from 7-gauge steel.
- 5-year warranty for peace of mind and reliability.
Bulldog Electric Motor Powered-Drive Kit 2-Pack:
- Boost the efficiency of your Bulldog jacks with these kits, ideal for heavy-duty trailers.
- Compact, silent, and efficient design fits easily in tight spaces.
- Maintenance-free with weatherproof components for long-term performance.
- Manual operation option available for emergency scenarios.
Kit Specifications:
- 12 volt DC Motor Power with 7,500 lbs Electric Lift Capacity per motor.
- Suitable for Bulldog Single-Speed Landing Gears.
- Dimensions: 16-1/2" length x 3-1/8" width x 7-3/16" height.
- Limited 5-year warranty for added assurance.
For a seamless upgrade to your trailer's lifting capabilities, opt for the Bulldog Landing Gear and Leveling Jacks Bundle. Contact us at 877-869-6690 for inquiries or to order this premier lifting solution. Elevate your trailer operations today for unmatched performance and reliability.
$2,732 99 $2,806.71 3% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,806.71 $2,732 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: 182415X2 1824200100X2 1400920383
- Includes: 24K 1-Speed Dual Leanding Gear Jacks + Dual Motors
