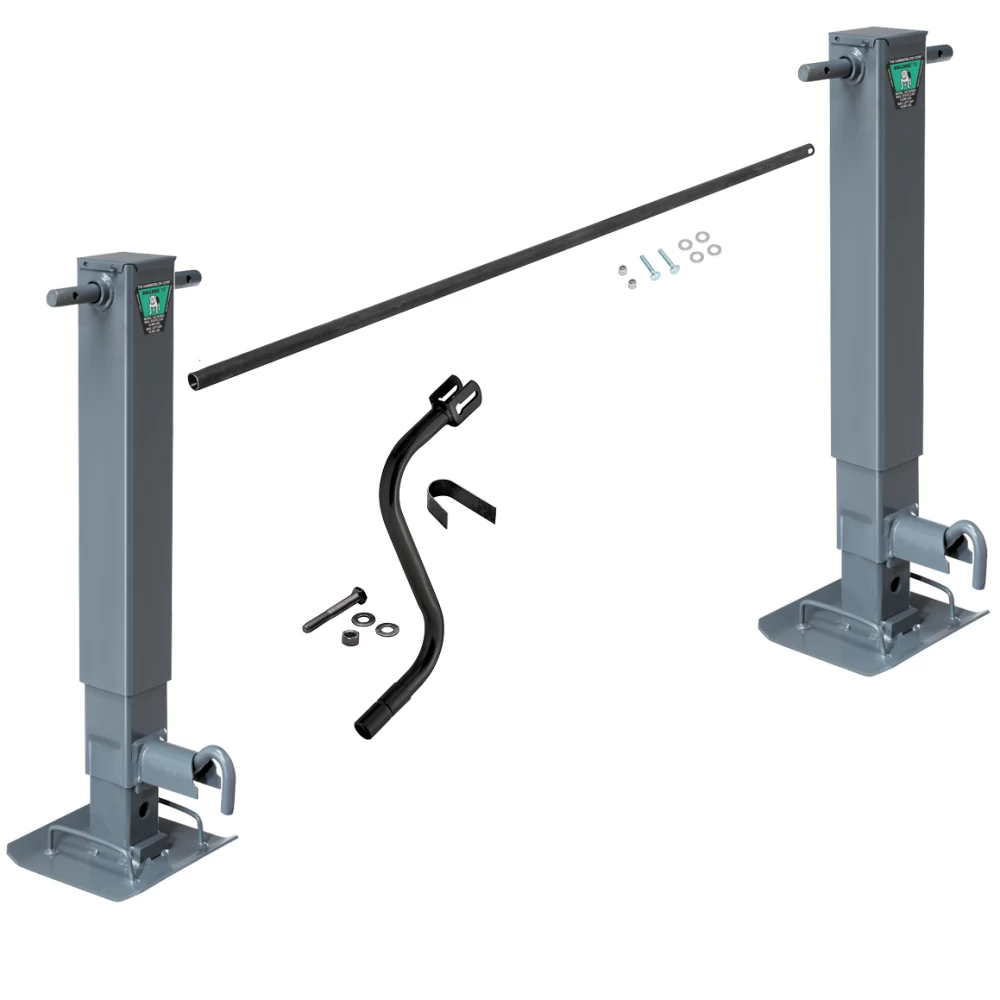

Bulldog 24K Landing Gear Set Dual Single Speed Trailer Jacks Non Spring Return Drop Legs Front Facing Plunger Pins, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank
Model: 182415X2 CS730300 1400920383Bulldog Tandem 24K Dual Trailer Jacks Landing Gear with Crosshaft
Transform your trailer setup with the Bulldog Landing Gear 2-Pack - 182415, featuring front-facing plunger pins and Non-Spring Return Drop Legs, linked together by a crossdrive crosshaft CS730300. This setup is ideal for a wide range of trailers and promises ease of use alongside outstanding performance.

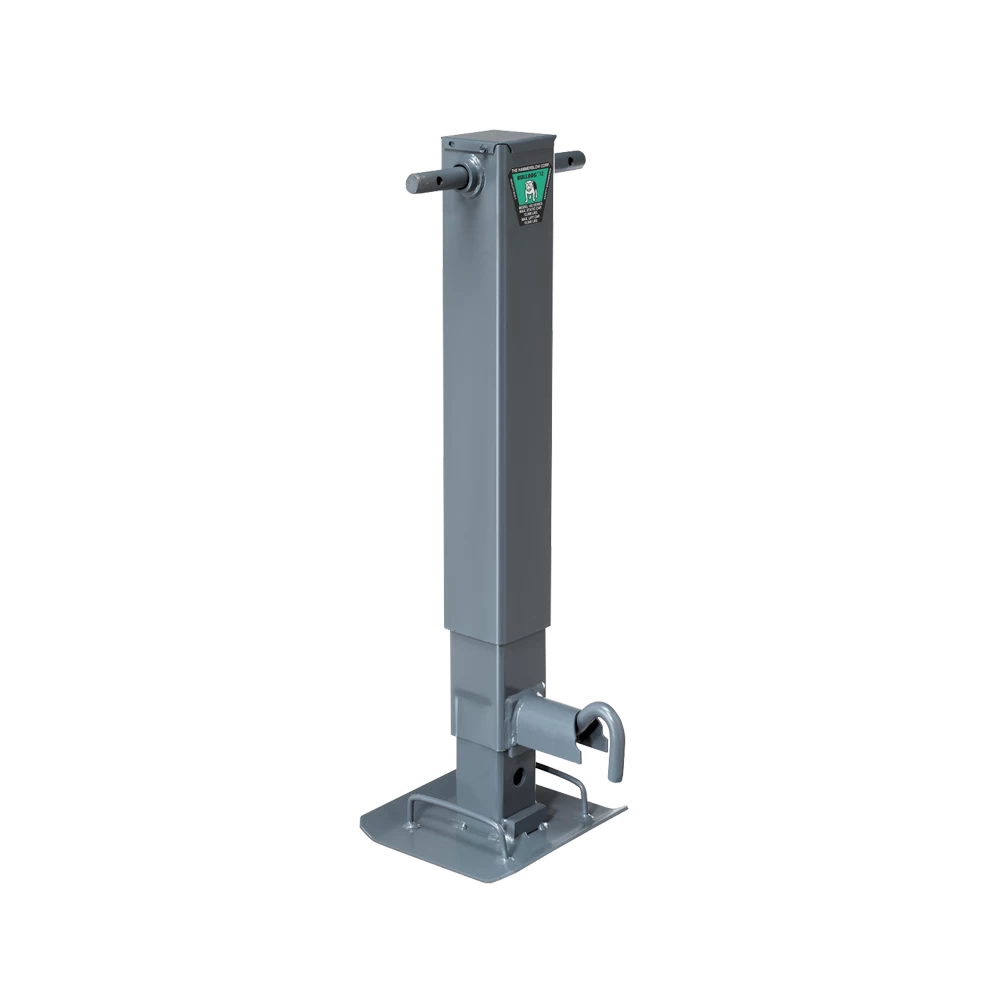

The Bulldog Trailer Jack 182415 is expertly constructed from heavy-duty steel with a weather-resistant finish, ready to provide reliable support for your heavy-duty trailers.
Key Features:
- Robust 4" Square Tubing made from 7-gauge alloy steel to handle demanding tasks.
- Protective Paint Coating on the outer tubes and drop legs to resist corrosion and enhance longevity.
- Tandem operation through a crosshaft, allowing single-handle control from one side.
- Adjustable Drop Leg with five positioning options for versatile setup configurations.
- Easy-Access Gear Box with grease fittings for hassle-free maintenance.
- Non-Spring Return Drop Legs providing 12.5" of screw travel and 13.5" of additional adjustment.
- Front-Facing Plunger Pins for convenience on both the parent and companion jacks.
- Durable Powder Coat Finish for extended jack protection.
- Sidewind Model with a 1:1.5 gear ratio for smooth and efficient operation.
Enjoy the convenience of Springless Drop Legs that lower effortlessly, simplifying setup and breakdown.
ASABE S485 Compliant
BULLDOG products meet ASABE S485 standards, assuring you of their quality and reliability.
Technical Specifications:
- Bracket Height: 27-3/8" (Retracted), 39-7/8" (Extended)
- Total Lift: 26"
- Travel: 12-1/2"
- Drop Legs: 13-1/2"
- Combined Manual Lift Capacity: 20,000 lbs
- Combined Static Capacity: 24,000 lbs
- Outer Tube Dimensions: 4" wide, made from 7-gauge steel
- 5-year warranty for your peace of mind.
Crosshaft Specifications

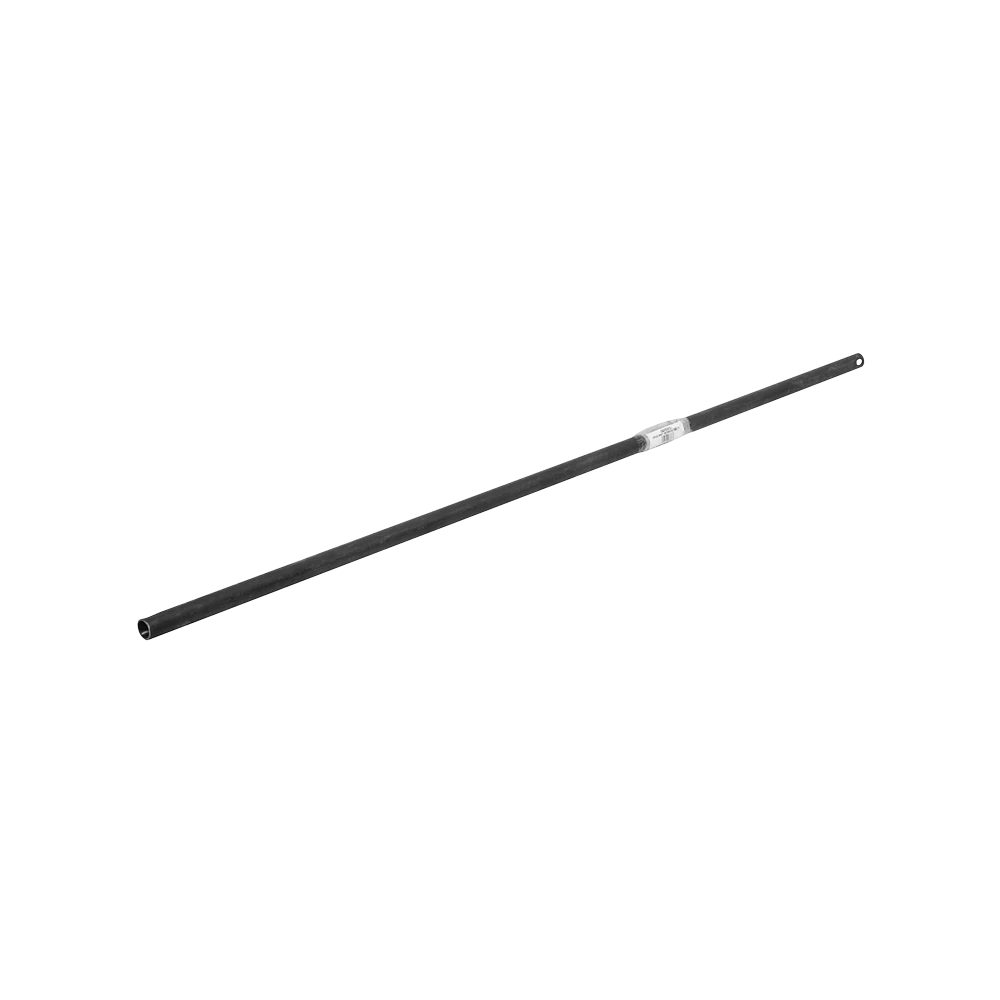

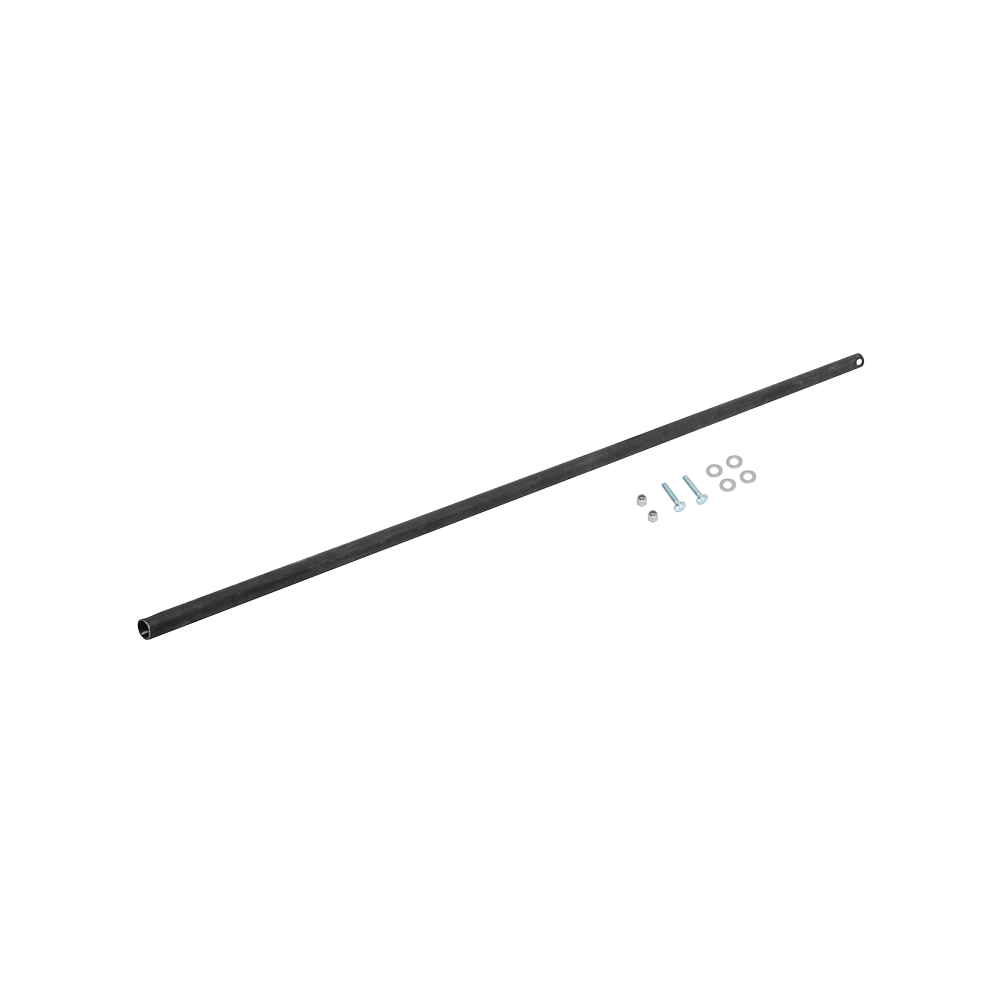

The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware facilitates tandem operation, and its length can be adjusted for your specific needs.
Depend on the BULLDOG Trailer Jacks 182415 for unrivaled reliability and robustness, all under a 5-year warranty. Call us at 877-869-6690 to upgrade your trailers with the finest equipment available. Our landing gear jacks are ASABE S485 certified, signifying their superior strength and durability.
$664 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$664 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $166.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 182415X2 CS730300 1400920383
- Includes: 24K Landing Gear Jacks
Description
Get Expert Help
Bulldog 24K Landing Gear Set Dual Single Speed Trailer Jacks Non Spring Return Drop Legs Front Facing Plunger Pins, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank Install Notes
Installation Instructions for 12,000 lb Square Tube Jack
General Installation Notes:
- Follow these instructions carefully without alterations.
- Never position any part of your body under the jack or the load being supported.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before operating the jack.
- Block wheels to prevent rolling during jack operation or trailer coupling.
- Never exceed the maximum rated capacity as marked on the product.
- Avoid excessive side forces to prevent jack failure.
- Replace bent, broken, or worn parts before use.
- Use only on flat surfaces. For tandem applications, align jacks to share the load equally.
- All welding must be performed by an AWS-certified welder.
- Check for interference during all stages, including handle swing and swivel positions.
Tools Required:
- Torque wrench
- Welding equipment (if applicable)
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- Welding must be performed by an AWS-certified welder.
- Apply three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface.
- Space the welds as far apart as possible for maximum strength.
- For tandem applications, align the jacks to raise and lower together, sharing the load equally.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically.
- Mate the jack to the pivot tube and secure it with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Verify the jack is not under load.
- Place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin to disengage it and carefully move the leg to the desired position.
- Rotate the pin back to engage it into the adjustment hole and ensure it is fully seated.
- If clearance exists between the pin handle and housing, lubricate and re-seat the pin.
Non-Spring Return Drop Leg:
- Verify the jack is not under load.
- Grasp the handle of the footplate to control the drop leg's descent.
- Rotate the drop leg pin to disengage it and move the leg to the desired position.
- Rotate the pin back to engage it into the adjustment hole and ensure it is fully seated.
- If clearance exists between the pin handle and housing, lubricate and re-seat the pin.
Maintenance:
- Annually lubricate the gears, bushings, and screws with automotive EP2 grease.
- For side-wind models, use a grease gun at lubrication points near the input shaft.
- Apply lightweight oil to the input shaft bushings and drop leg pin assembly.
- Keep all components clean and lubricated regularly.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points during operation.
- Never adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, or unauthorized modifications.
- For warranty claims, refer to the full installation manual or contact technical support.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
