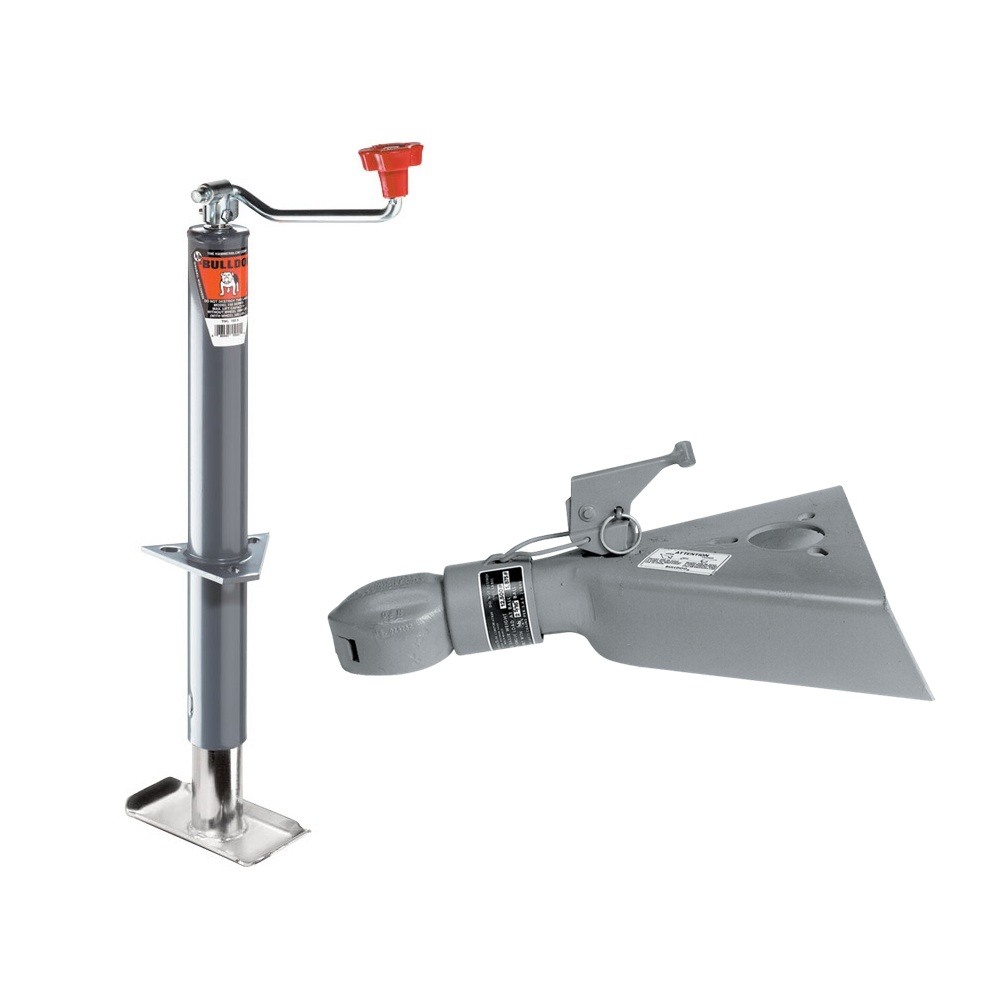

Bulldog 2K A-Frame Trailer Jack and Footplate 15" Lift Topwind w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC280Bulldog 2K A-Frame Topwind Trailer Jack & 12.5K Collar-Lok Coupler Bundle
This heavy-duty bundle combines the industry-standard Bulldog 2,000 lb A-Frame round jack with a robust 12,500 lb Collar-Lok™ coupler. Ideal for utility, horse/livestock, cargo, and construction trailers, it delivers smooth operation, dependable vertical and side-load capacity, and long-lasting corrosion resistance.
Bundle Contents:

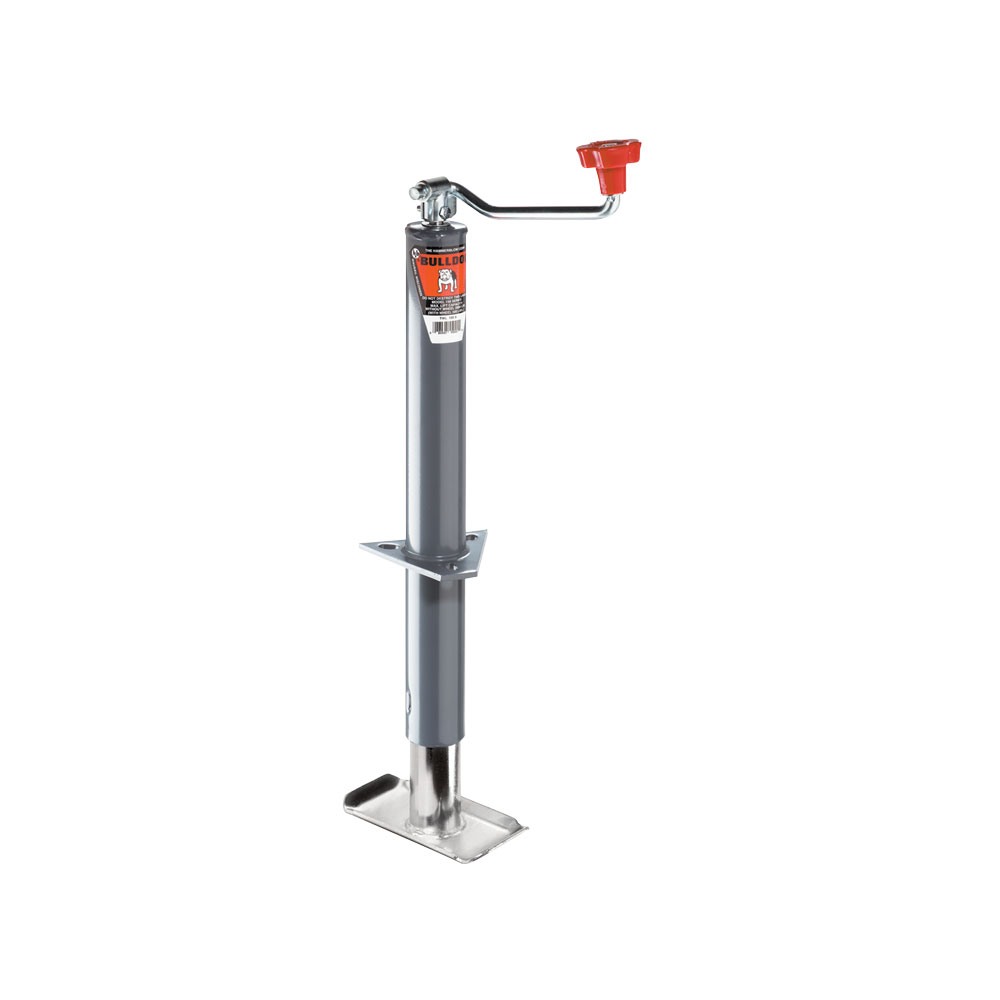

- QTY (1): Round Trailer Jack, A-Frame, 2,000 lb Lift Capacity, Topwind, Bolt-On, 15″ Travel
- Grey powder-coat finish on outer tube; clear zinc inner tube
- Fixed-leg footplate for stable support
- Topwind handle crank for effortless lifting
- 8″ retracted to 23″ extended clearance
- Non-swivel design for A-Frame triangular center mounts
- QTY (1): Bulldog Collar-Lok™ A-Frame Coupler, 2 ⅝″ Ball, 12,500 lb Capacity
- Automatic, continuously tight ball fit
- Hinged socket for fast hookup
- Clear visual indication of proper closure
- Strong in both static and dynamic loading
- Adjustable to match various trailer tongue heights
We recommend confirming your trailer’s original equipment requirements and performing regular lubrication and inspections to ensure optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 1,001–2,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | Round A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15″ |
| Jack Finish | Gray Powdercoat / Clear Zinc Inner Tube |
| Static & Lift Capacity | 2,000 lb |
| Foot Type | Fixed Leg Footplate |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2.00″ |
| Bracket-to-Bottom Clearance | 7.5″ (Retracted) / 22.5″ (Extended) |
| Bracket-to-Top Clearance | 17″ |
| Electric Lift | No |
| Custom Bundle | No |
