Bulldog 2K A-Frame Trailer Jack and Footplate 15" Lift Topwind w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC291Bulldog 2K Topwind A-Frame Trailer Jack & 15K Cast-Head Coupler Bundle
Upgrade your trailer’s stability and ease-of-use with this rugged Bulldog bundle. It pairs a 2,000 lb Topwind A-Frame jack—complete with a durable footplate—with a 15,000 lb cast-head “Wedge-Latch” coupler for 2-5/16″ balls. Ideal for agricultural, horse, livestock, cargo, and construction trailers, this combo delivers smooth operation and long-lasting performance.

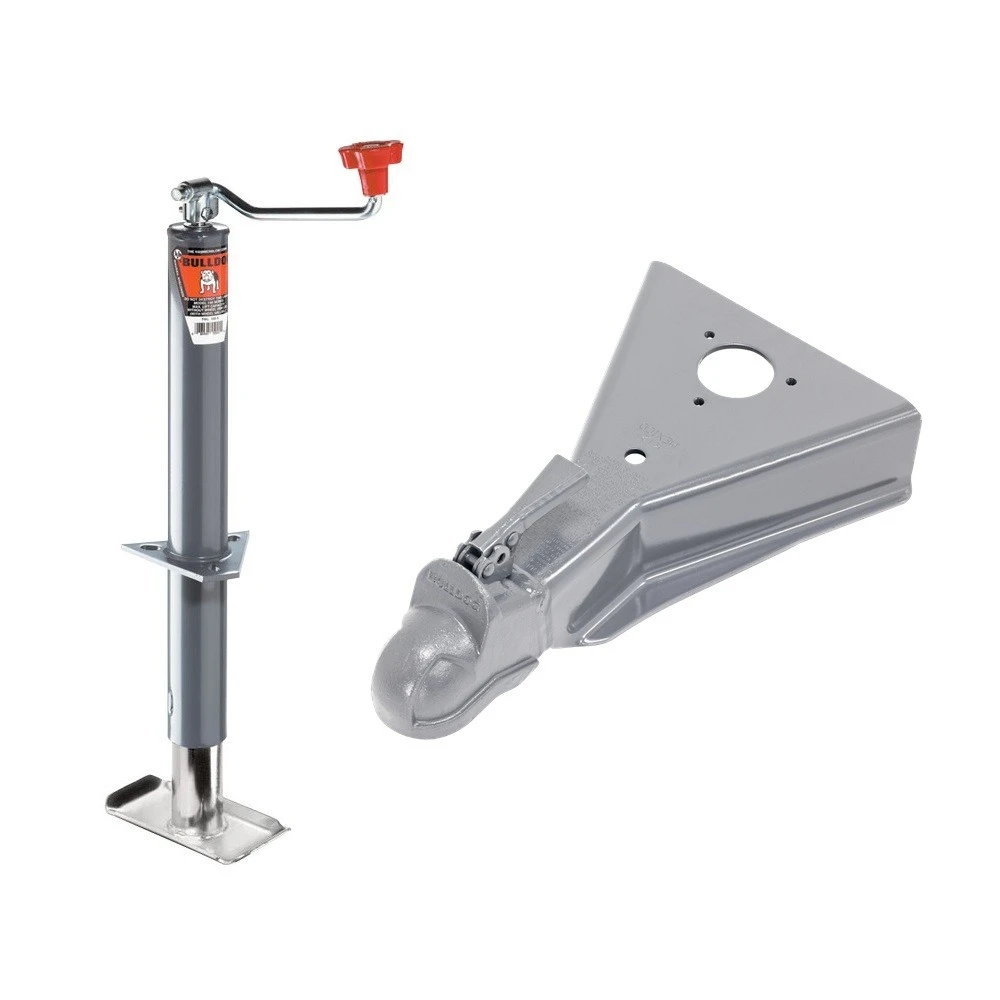

Bundle Contents:

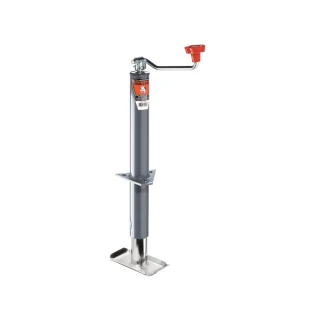

- QTY (1): Round Trailer Jack, A-Frame, 2,000 lb Lift Capacity, Topwind, Bolt-On, 15″ Travel
- Smooth, comfortable ergonomic design
- Dependable vertical and side-load capacity
- Proven reliability for long-term use at rated loads
- Precision-fitted parts for extra stability
- Grey powder-coat finish on outer & inner tubes
- Custom finishes available upon request

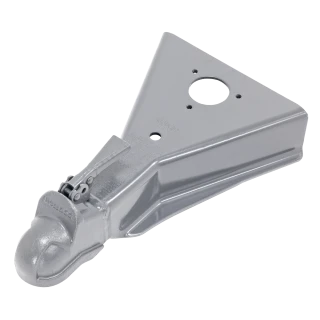

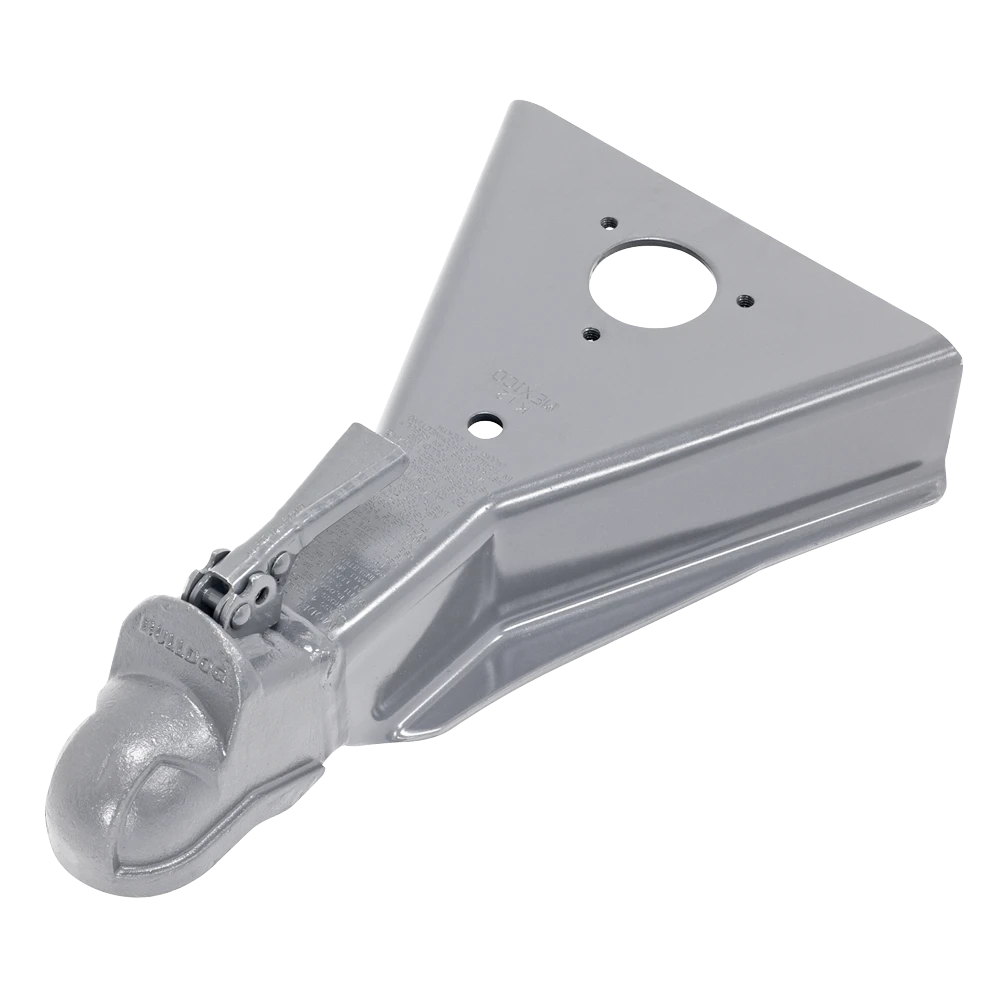

- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 15,000 lb Capacity
- Quick and easy to engage
- Strong, secure on the road
- Patented Wedge-Latch ball-clamp design
- Fast hook-up and disconnect
- Meets SAE standard J684
Recommendation: Always verify compatibility with your trailer’s OEM mount, keep moving parts lubricated, and inspect hardware regularly for the best performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 1,001–2,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Lift Mechanism | Topwind Handle Crank |
| Travel Range | 15″ Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 2,000 lb |
| Lifting Load Capacity | 2,000 lb |
| Foot Type | Footplate |
| Leg Style | Fixed Leg |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Bracket-to-Bottom Clearance (Retracted) | 7.5″ |
| Bracket-to-Bottom Clearance (Extended) | 22.5″ |
| Bracket-to-Top Clearance | 17″ |
| Coupler Type | 15K Cast-Head “Wedge-Latch” |
| Ball Size | 2-5/16″ |
| Standards | SAE J684 |
$240 99 $258.13 7% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$258.13 $240 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC291
- Includes: A-Frame Jack w/ Footplate, Trailer Coupler
