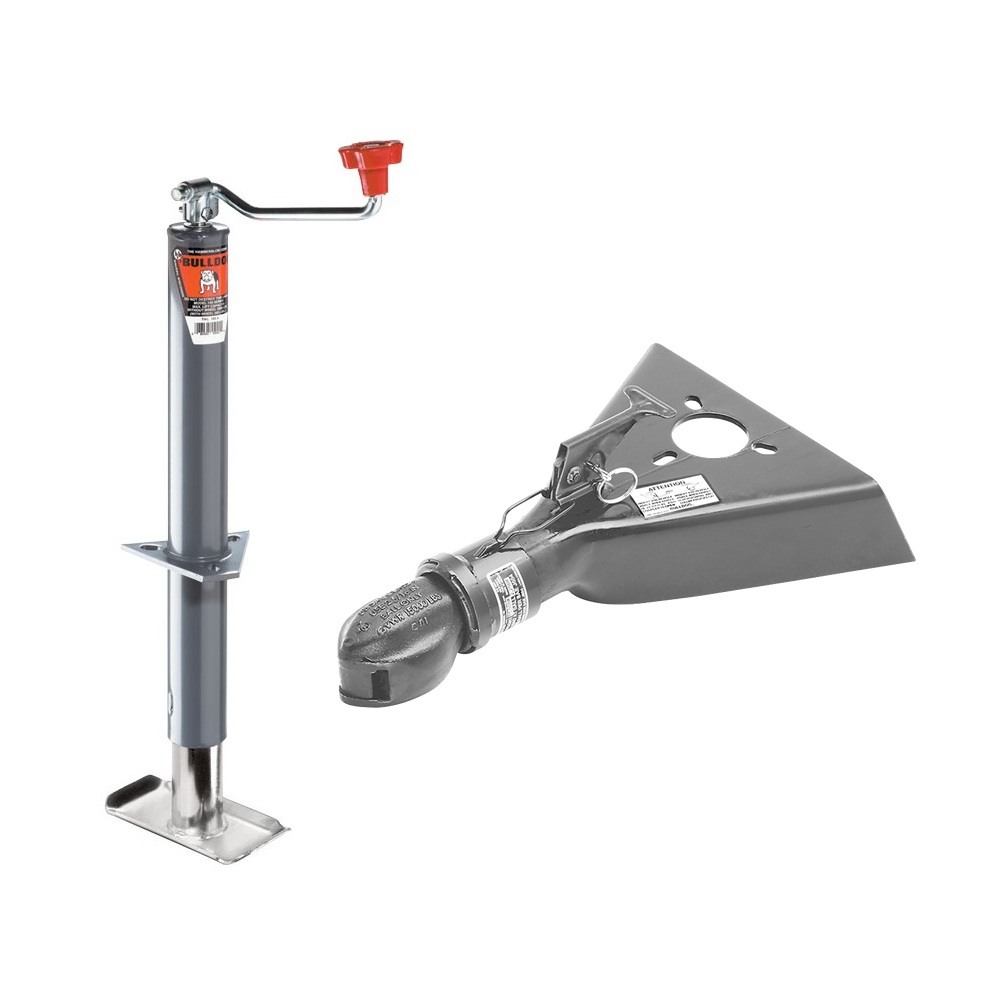

Bulldog 2K A-Frame Trailer Jack and Footplate 15" Lift Topwind w/ 15K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC287Bulldog 2K Topwind A-Frame Jack & 15K Collar-Lok Coupler Bundle
Get reliable, field-proven performance with this complete Bulldog bundle: a 2,000 lb-capacity Topwind A-Frame trailer jack featuring 15″ of smooth lift, paired with our industry-leading 15K Collar-Lok coupler for 2-5/16″ balls. Built to withstand heavy-duty agricultural, commercial, and recreational use, this bundle delivers unmatched stability and ease of hookup.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 2,000 lbs. Lift Capacity, Topwind, Bolt-On, 15″ Travel
- Industry-standard, field-proven reliability across agricultural, commercial, and livestock applications.
- Smooth, ergonomic design with precision-fitted parts for extra stability.
- Dependable vertical and side load capacity for secure support.
- Durable gray powder-coat outer tube and clear zinc inner tube resist corrosion.
- Custom finishes available upon request.
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16″ Diameter, 15,000 lbs. Capacity
- Automatic, continuously tight ball fit ensures a secure connection.
- Robust static and dynamic load performance for utility, cargo, and livestock trailers.
- Hinged ball socket for easy hookup and disengagement.
- Clear visual indicator confirms proper closure.
- Adjustable design maintains level operation with various tow vehicles.
Be sure to verify fitment with your trailer’s existing A-frame mount and perform routine inspections and lubrication to maintain peak performance.
| Specifications: | |
|---|---|
| Weight Capacity | 1001–2000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 2000 lb |
| Lifting Load Capacity | 2000 lb |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Approx. Bracket-to-Bottom Clearance (Retracted) | 8″ |
| Approx. Bracket-to-Bottom Clearance (Extended) | 23″ |
| Approx. Bracket-to-Top Clearance | 17″ |
| Electric Lift | Non-Electric |
| Custom Bundle | No |
| Exact Retracted Clearance | 7.5″ |
| Exact Extended Clearance | 22.5″ |
| Exact Top Clearance | 17″ |
$266 99 $291.88 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$291.88 $266 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC287
- Includes: A-Frame Jack w/ Footplate, Trailer Coupler
