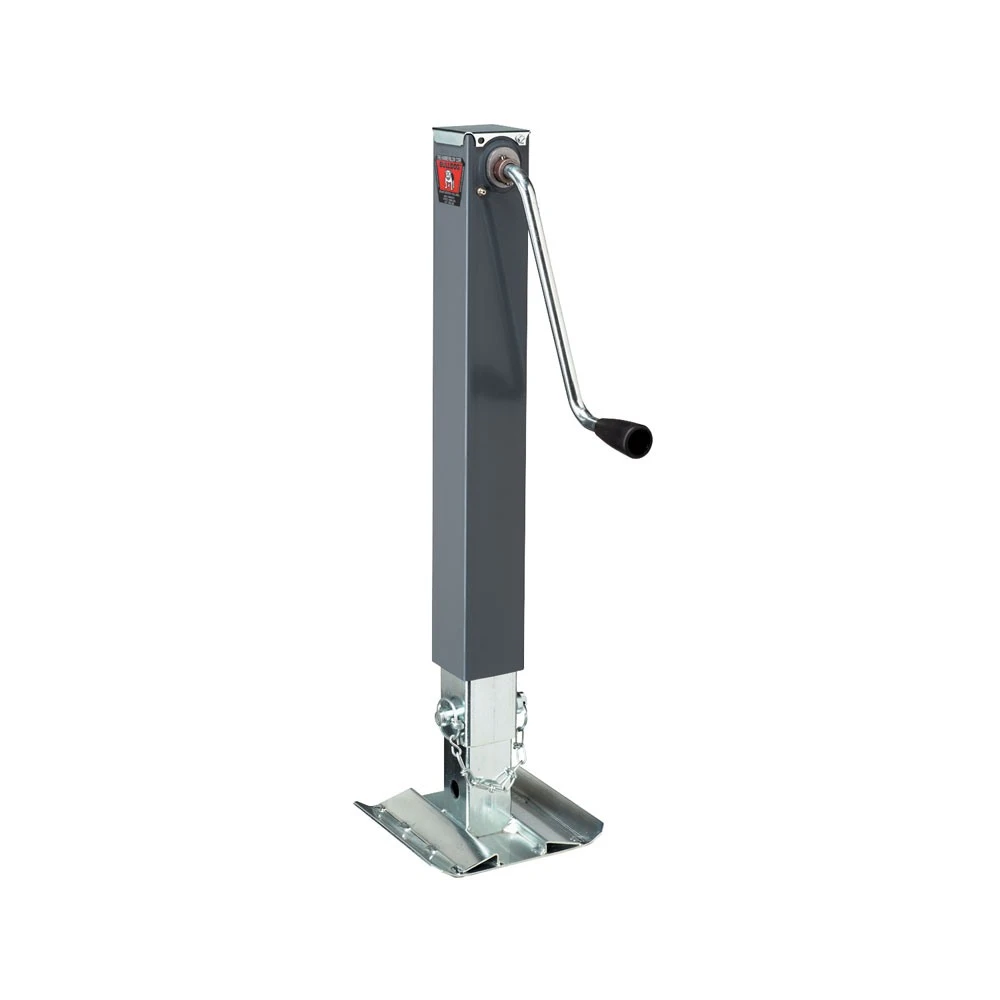

Bulldog 2x 10K Square Trailer Jack w/ 15" Lift Sidewind and Footplate

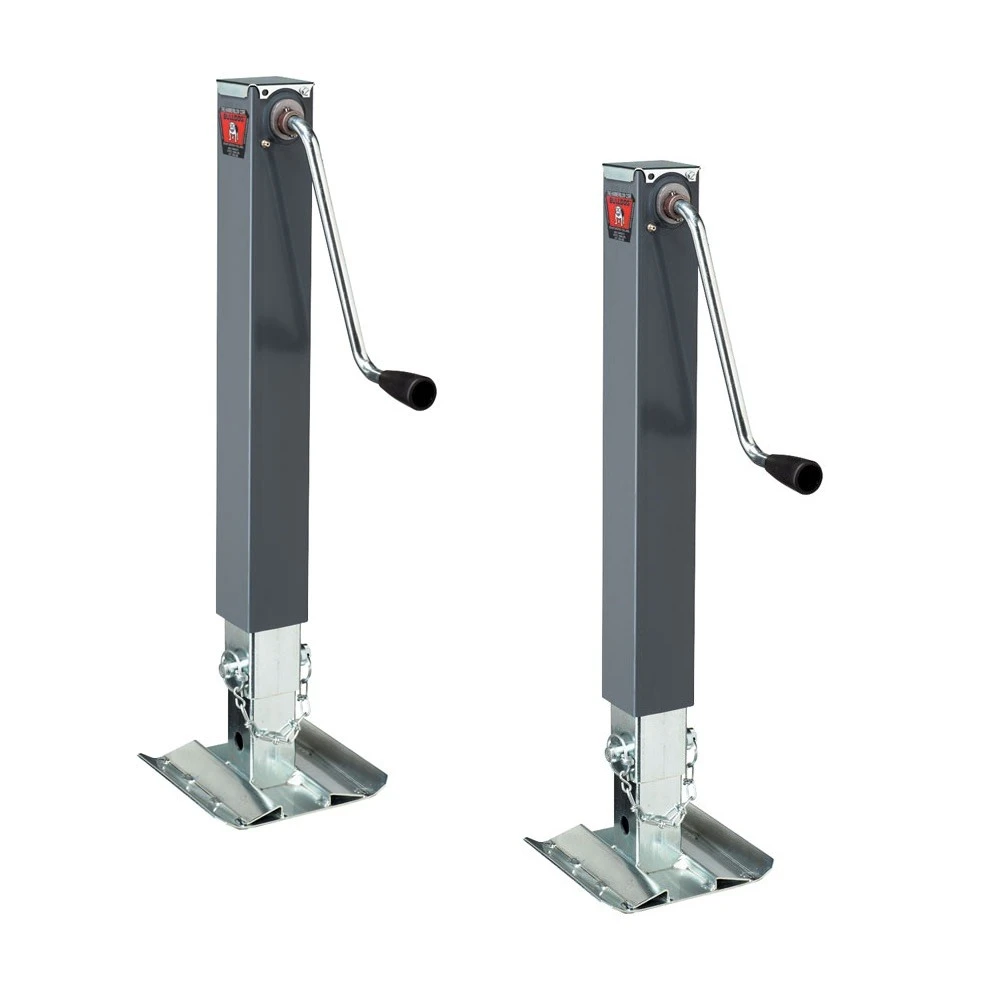

Model: BDTJ137Bulldog 10K Square Trailer Jack Bundle – 2-Pack, 15″ Sidewind w/ Footplate
Get the perfect balance of capacity, speed, and effort with this 2-pack bundle of Bulldog 10,000 lb square trailer jacks. Designed to fill the gap between 8K and 12K offerings, these weld-on, sidewind jacks deliver smooth, reliable operation and long-term durability for heavy-duty trailers.
Bundle Contents:
- QTY (2): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Sidewind, Weld-On, 15″ Travel
- Heavy-gauge 3″ square tubing allows for direct weld mounting—no burn through
- Gray powdercoat painted outer tube serves as primer or final finish
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforcement ribs prevent water retention and add strength
- Precision manufactured for smooth, easy cranking over time
- Grease zerk fitting for quick lubrication
- Oil-impregnated bushing improves bearing and gear life
- Direct weld to outer tube is standard
- Sidewind handle with 1:1.86 gear ratio for efficient lift
Recommendation: Always verify compatibility with your original equipment, perform regular lubrication, and inspect welds before each use to ensure optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 8001–10000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10000 LB Static Capacity |
| Lifting Load Capacity | 7200 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 3 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 25.67 Inch |
| Bracket-to-Bottom Clearance (Extended) | 54.17 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$322 73 $450.00 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$450.00 $322 73
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BDTJ137
- Includes: 10K Drop Leg Jack
