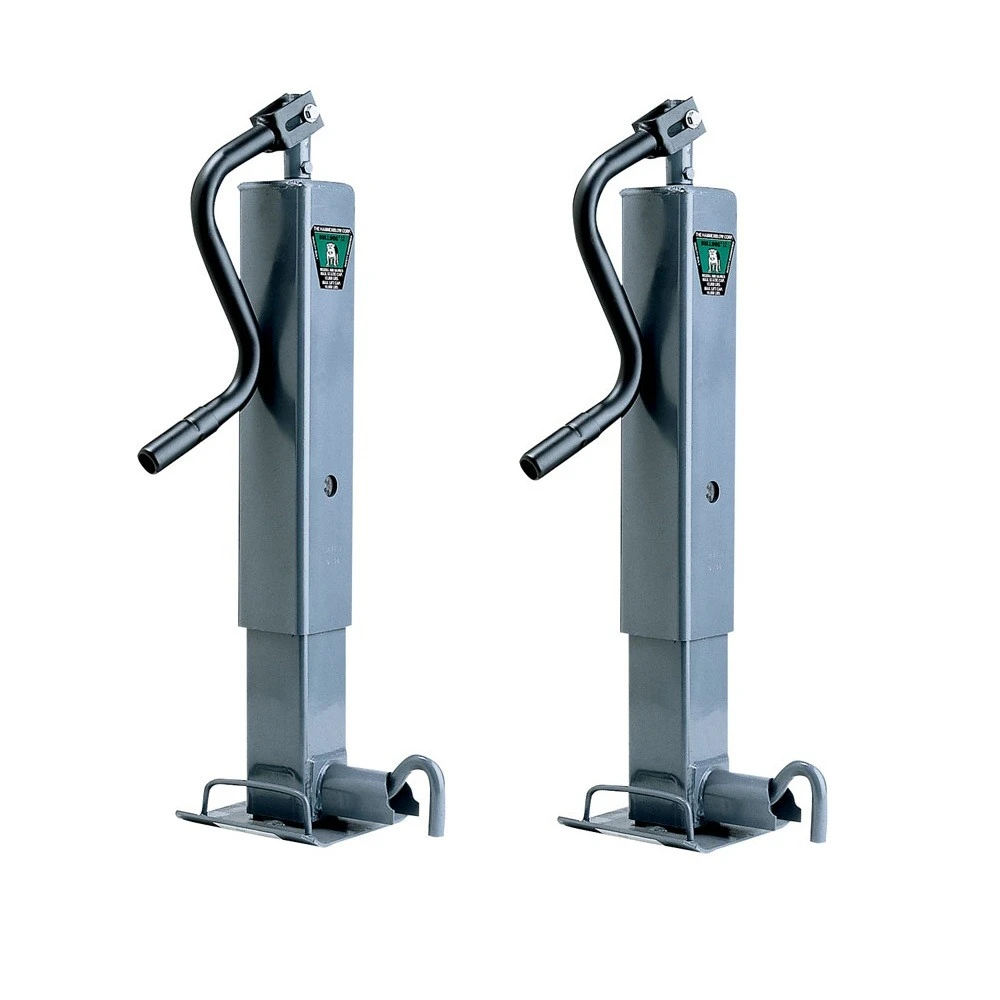

Bulldog 2x 12K Square Trailer Jack w/ 26" Lift Topwind Non Spring Return and Crank
Model: BDTJ81Bulldog 12,000 lb Topwind Square Trailer Jack Set (2-Pack)
This bundle includes two heavy-duty Bulldog 12,000 lb support capacity square trailer jacks with topwind mechanism and 26″ lift. Ideal for agricultural, construction, and heavy-duty utility trailers, these jacks deliver reliable support, smooth adjustment, and long-lasting performance.
Bundle Contents:
- QTY (2): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Topwind, 12-1/2″ Travel
- 4″ square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg for corrosion resistance
- Drop leg option with 5 positioning holes
- Easy-access gearbox with grease fitting for routine maintenance
- Non-spring return drop leg design for secure load support
- 12.5″ screw travel, 13.5″ additional adjustment with drop leg
- Front-facing drop leg plunger pin or side-facing drop leg plunger pin
- Painted finish (with or without labels) or optional powder coat
- Sidewind handle with 1:1.5 gear ratio for smooth operation
We recommend verifying that the direct weld mounting style matches your trailer’s frame and performing regular lubrication via the easy-access grease fitting to ensure long service life.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$507 99 $525.00 3% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$525.00 $507 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ81
- Includes: 12K Drop Leg Jack
