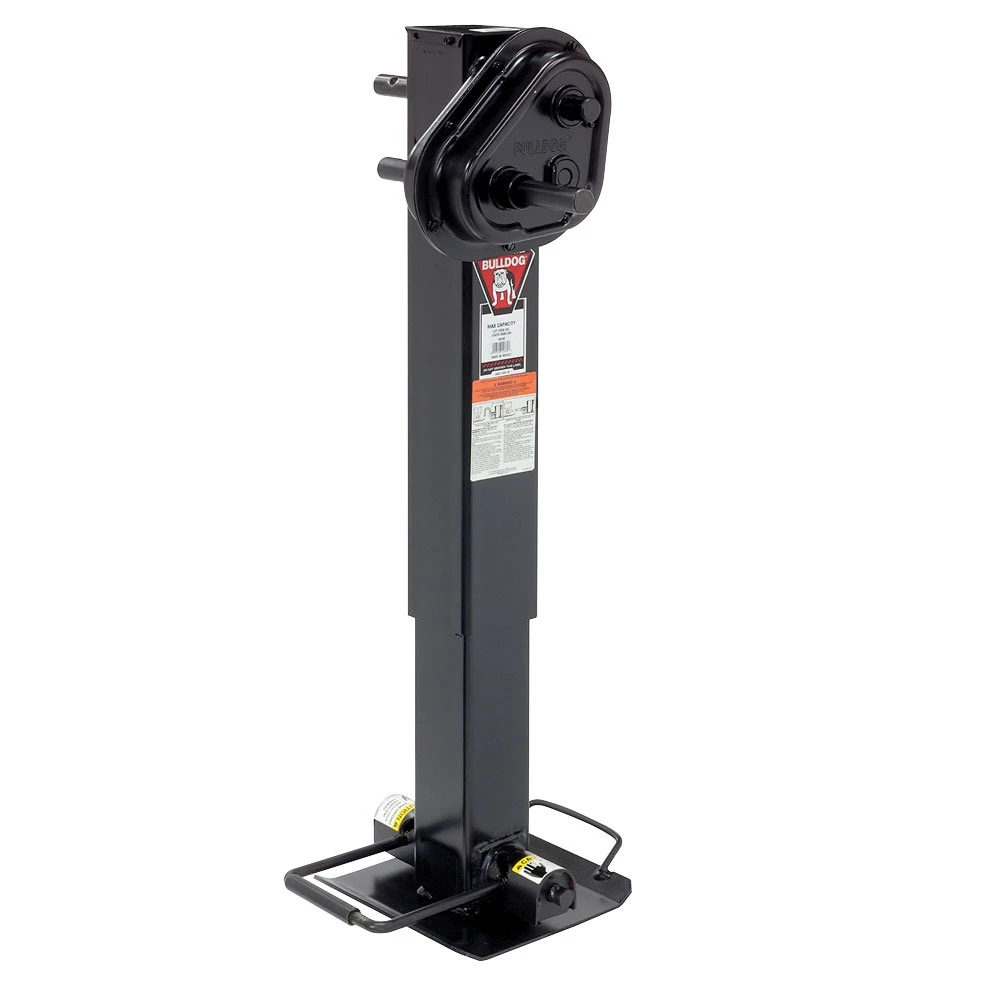

Bulldog 2x 25K 2-Speed Square Trailer Jack w/ Twin Cam Gearbox & Drop Leg for Heavy-Duty

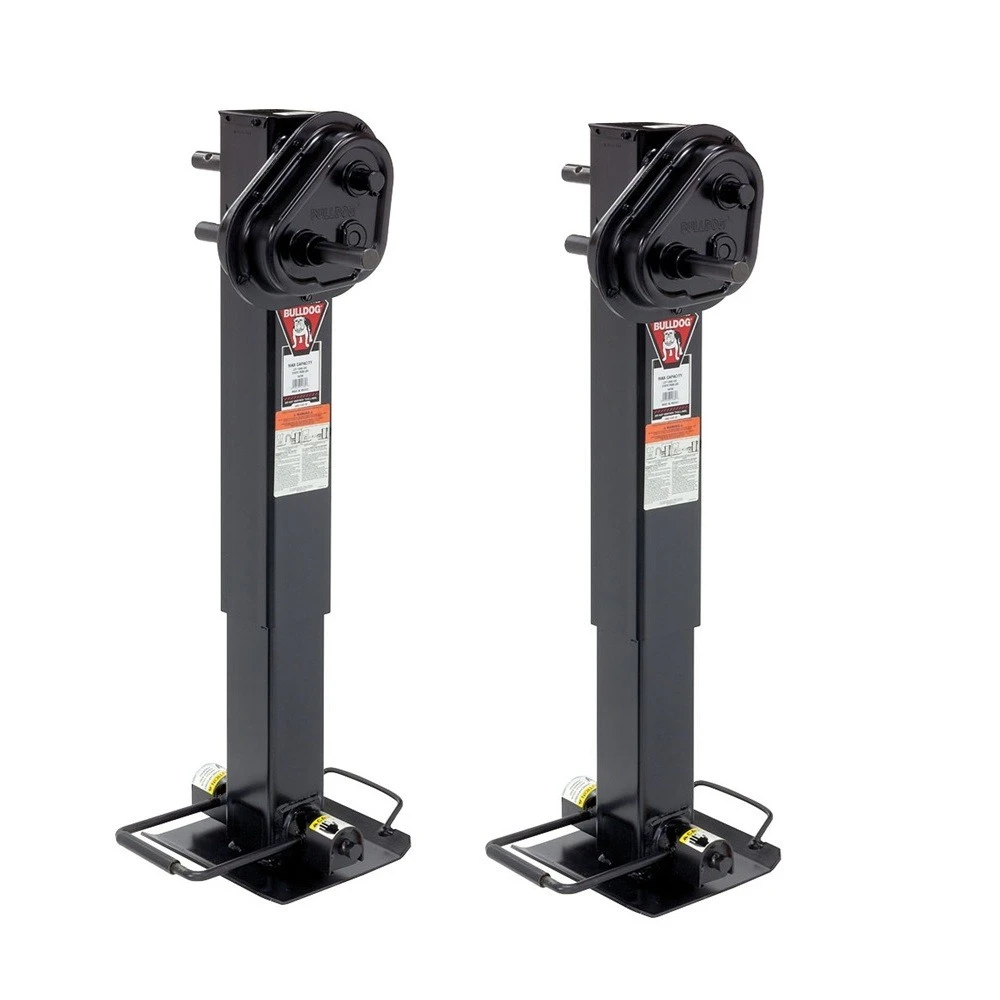

Model: BDTJ772-Pack Bulldog 25K 2-Speed Square Trailer Jacks w/ Twin Cam Gearbox & Drop Leg
Upgrade your heavy-duty trailer setup with this bundle of two Bulldog 25,000 lb-capacity jacks. Each jack features Bulldog’s patented Twin Cam™ gearbox for smooth two-speed operation and a robust drop leg mechanism for added stability. Ideal for industrial, agricultural, or construction trailers, these jacks deliver power and precision when you need it most.
Bundle Contents:
- QTY (2): Bulldog 25K 2-Speed Square Trailer Jack w/ Twin Cam Gearbox & Drop Leg
- Twin Cam™ two-speed gearbox: high speed (9 turns per inch) for loads up to 12,500 lb; low speed (29.5 turns per inch) for loads up to 25,000 lb
- Drop leg mechanism with 5 positions and 13.5" of adjustment for precise height control
- Patented Twin Cam drop leg design engages on both sides for tighter alignment and increased capacity
- 12.5" of screw travel with spring-return and non-spring-return options
- Heavy-duty 10" × 10" steel footplate for stable support on any terrain
- Durable 1" diameter steel input shaft with easy-access grease fittings for lubrication
- Patented screw stop prevents damage when fully extended, extending gear and screw life
- Optional compatibility with Bulldog Powered Drive electric motor system (reduces lift capacity to 7,500 lb)
Before installing, verify compatibility with your trailer’s mounting bracket and regularly lubricate all grease fittings to ensure optimal performance. Routine inspection of the drop leg pins and gearbox will extend the service life of your jacks.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 25000 LB Static Capacity |
| Jack Lifting Load Capacity | 25000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.5 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
