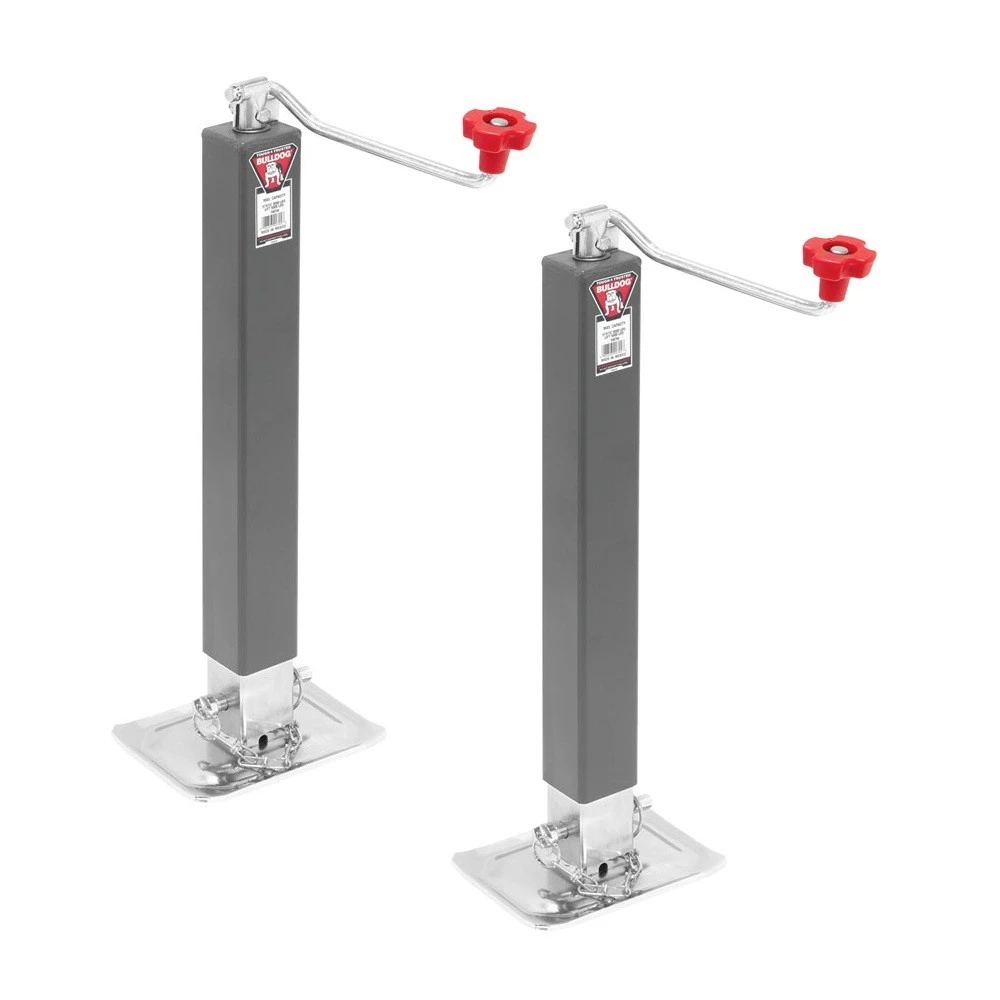

Bulldog 2x 8K Square Trailer Jack w/ 15" Lift Topwind Handle and Footplate
Model: BDTJ145Bulldog 8,000 lb Square Trailer Jack Bundle – 15″ Topwind & Footplate (2-Pack)
Equip your agricultural, industrial, or utility trailer with reliable lifting support—this bundle includes two high-capacity 8,000 lb square trailer jacks featuring a smooth topwind handle and durable footplate. Built for tight spaces and heavy loads, these weld-on jacks deliver performance and longevity in one complete package.
Bundle Contents:
- QTY (2): Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Topwind, Weld-On, 15 Inch Travel
- Bulldog’s 8,000 lb support capacity jack serves agricultural, industrial, construction, horse/livestock, and utility/cargo trailers, ideal for tight-fitting applications
- Use the painted outer tube as the final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem provides insurance against stem twisting
- Patented screw nut stop prevents damage when fully extended
- Topwind models feature a bushing in top cap and eagle claw grip
- Sidewind models include a 1/4″ cross pin connecting gear train to stem to guard against shearing
- Sidewind models have a 1:1.33 gear ratio
Before installation, verify compatibility with your trailer’s original equipment and perform regular maintenance to ensure smooth operation and maximum lifespan.
| Specifications: | |
|---|---|
| Weight Capacity | 7001-8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 8000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 23 Inch |
| Bracket-to-Bottom Clearance (Extended) | 51 Inch |
| Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Retracted Clearance | 22.66 Inch |
| Exact Extended Clearance | 51.41 Inch |
| Exact Top Clearance | User-Configurable |
$208 99 $267.50 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$267.50 $208 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ145
- Includes: 8K Drop Leg Jack
