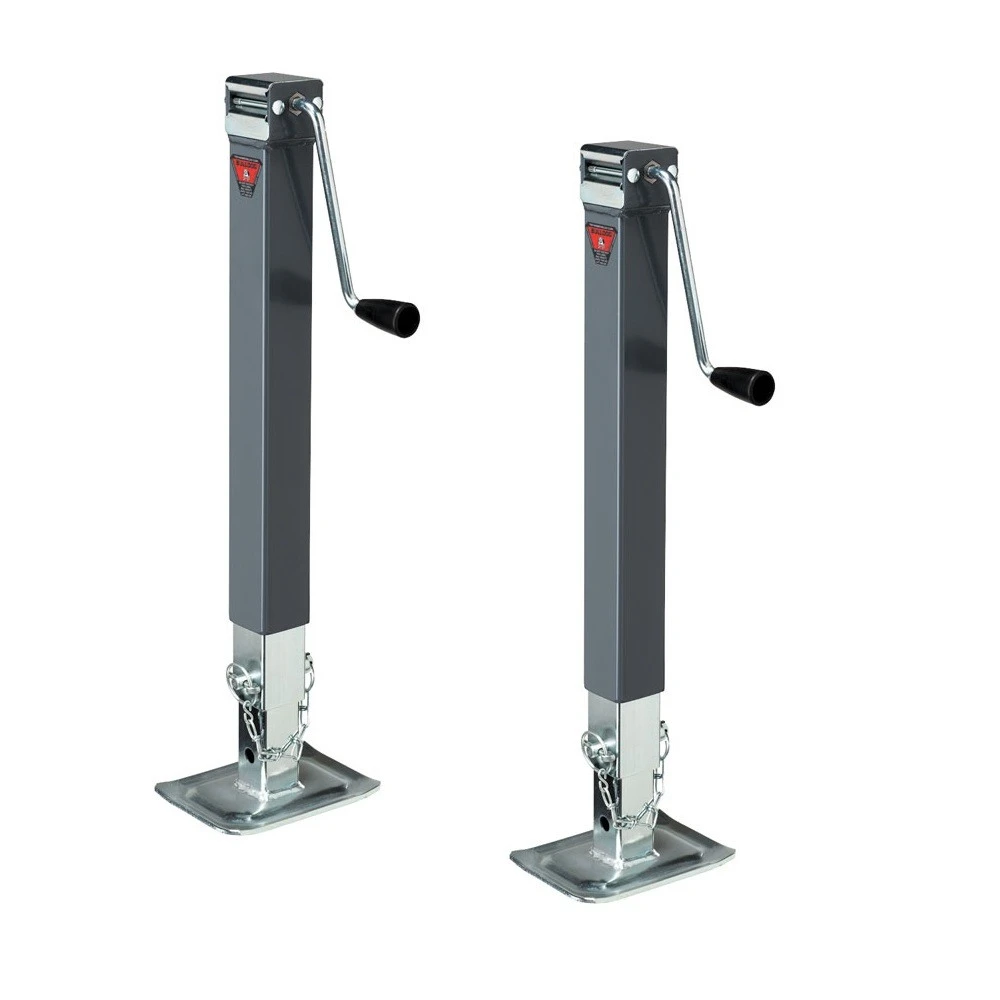

Bulldog 2x 8K Square Trailer Jack w/ Sidewind Handle and 15" Lift
Model: BDTJ153Pair of Bulldog 8,000 lb Sidewind Square Trailer Jacks – 15″ Lift
Upgrade your trailer’s support with this set of two heavy-duty Bulldog square jacks. Each jack delivers 8,000 lb of static capacity and 5,000 lb of lift, featuring a 1.33:1 sidewind gear ratio and 15″ of travel—ideal for agricultural, industrial, construction, and utility trailers.
Bundle Contents:
- QTY (2): Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15 Inch Travel
- Painted outer tube serves as finish or primer
- Zinc-plated inner tube and drop leg
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem prevents twisting off under load
- Patented screw nut stop protects when fully extended
- 1/4″ cross pin guards against jack pin shearing
- 1 : 1.33 gear ratio for smooth operation
Please verify compatibility with your original equipment and perform regular maintenance to ensure long-term performance.
| Specifications: | |
|---|---|
| Weight Capacity | 7001-8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 25 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 54 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 25.06 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.56 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
