Bulldog 2x 8K Square Trailer Jack w/ Tubular Swivel Mount and 10" Lift

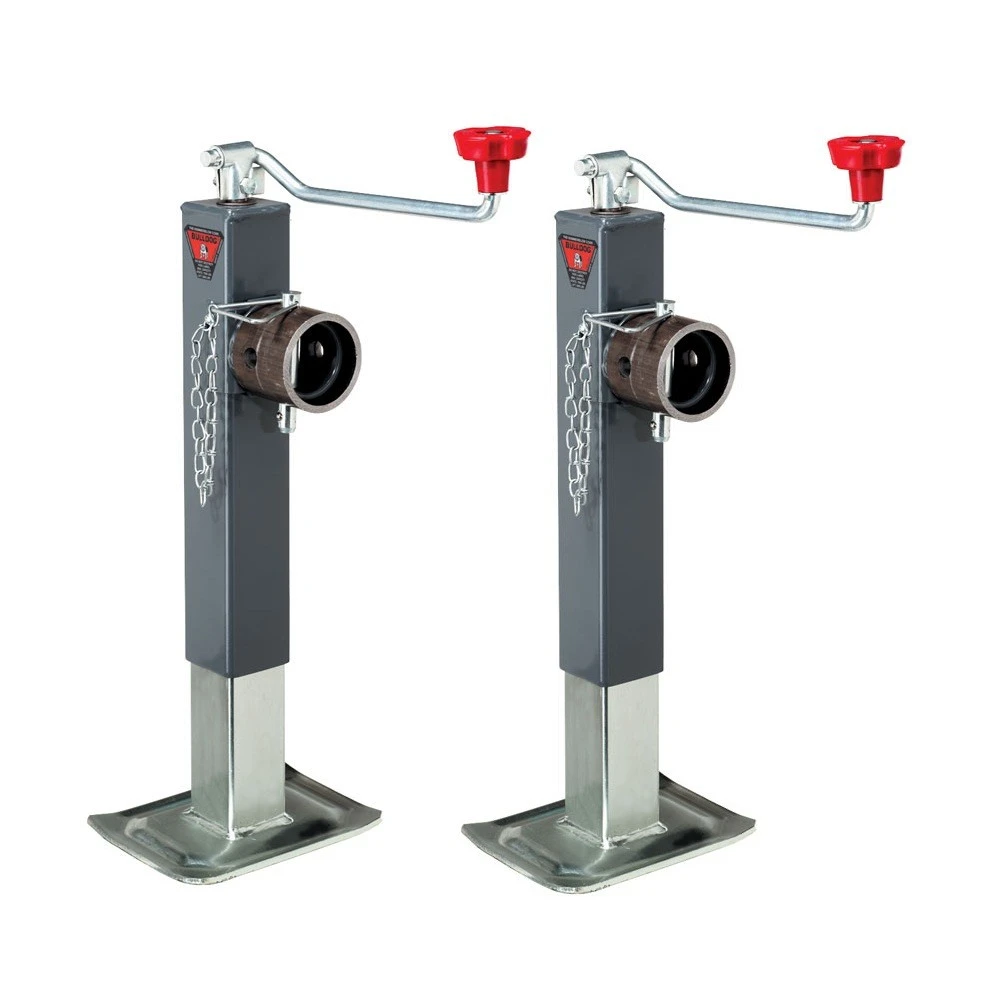

Model: BDTJ117Bulldog 2-Pack 8,000 lb Square Pipe Mount Trailer Jack – Topwind Handle, 10″ Lift
Get reliable towing support with this bundle of two Bulldog square pipe mount trailer jacks. Each jack features an 8,000 lb static capacity, a smooth topwind handle, and 10″ of lift travel—perfect for agricultural, industrial, horse/livestock, and utility trailers.
Bundle Contents:
- QTY (2): Square Trailer Jack, Side Mount, 8,000 lb Support Capacity, Topwind, Weld-On, 10″ Travel
- BULLDOG’s 8,000 lb support capacity square jack for agricultural, industrial, construction, horse/livestock, and utility/cargo trailers.
- Compact design ideal for tight-fitting applications where 3″ and 4″ square tube jacks are too big.
- Painted outer tube serves as final finish or primer.
- Zinc-plated inner tube and drop leg for corrosion resistance.
- 4.7″ outer/inner tube overlap for optimal side load performance.
- 5/8″ screw stem for twist resistance.
- Patented screw-nut stop prevents damage at full extension.
- Topwind model features bushing in top cap and eagle claw grip.
- Sidewind models include 1/4″ cross pin and 1:1.33 gear ratio (reference).
We recommend verifying your trailer’s original equipment specifications and performing regular lubrication and maintenance to keep your jacks operating smoothly.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Outer Tube Diameter | 2.5″ |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 11″ (11.41″ exact) |
| Bracket-to-Bottom Clearance (Extended) | 21″ (21.41″ exact) |
| Bracket-to-Top Clearance | 4″ (4.25″ exact) |
| Electric Lift | Non-Electric |
| Custom Bundle | No |
$229 99 $312.50 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$312.50 $229 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ117
- Includes: 8K Square Jack
