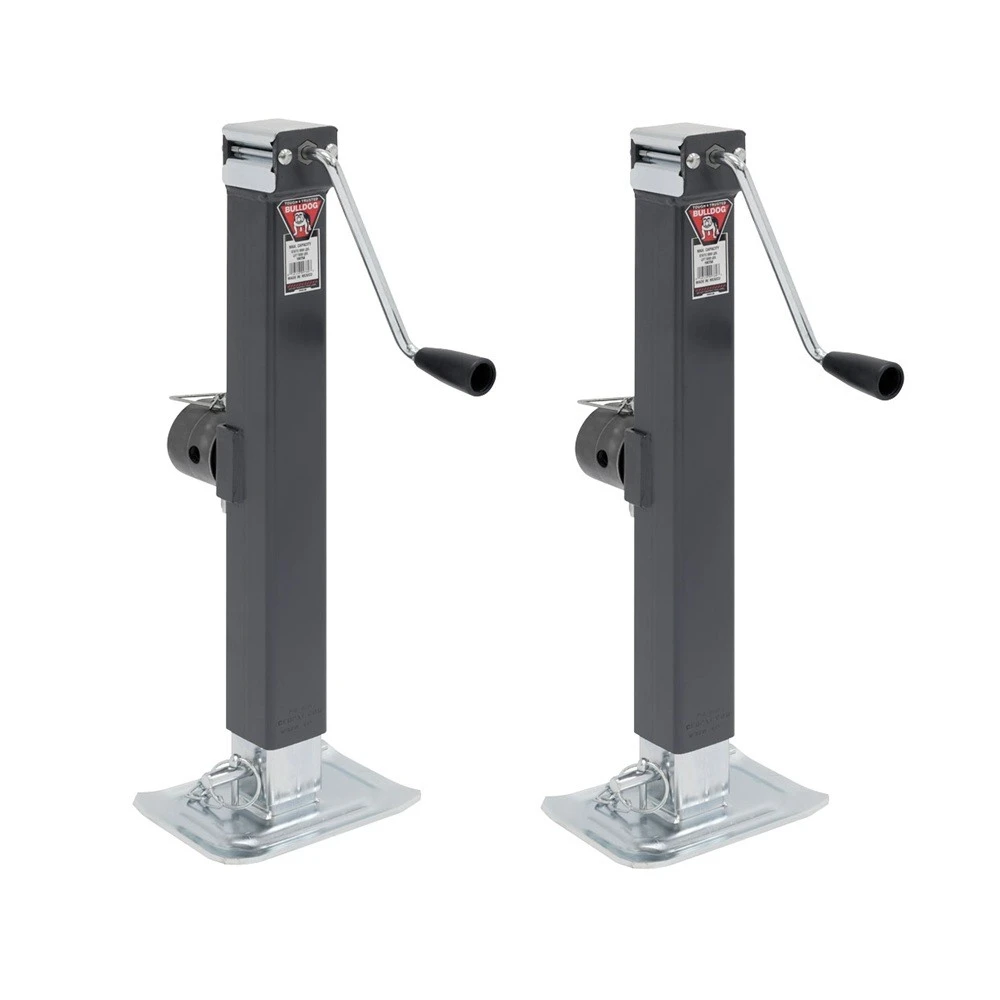

Bulldog 2x 8K Square Trailer Jack w/ Tubular Swivel Mount and 15" Lift
Model: BDTJ113Bulldog 8K Square Swivel-Mount Sidewind Trailer Jack Bundle – 2-Pack
Get unmatched durability and easy handling with our 2-pack of Bulldog 8,000 lb square trailer jacks. Designed for agricultural, industrial, and utility trailers, these compact sidewind jacks feature a tubular swivel mount and 15" lift—perfect for tight applications where larger tube jacks won’t fit.
Bundle Contents:
- QTY (2): Square Trailer Jack, Side Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15" Travel
- Painted outer tube serves as final finish or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- 4.7" overlap for optimal side-load performance
- 5/8" screw stem prevents twisting off
- Patented screw nut stop protects components when fully extended
- Topwind models include bushing in top cap and eagle-claw grip
- Sidewind models feature a 1:1.33 gear ratio with a ¼" cross-pin guard
Always verify fit with your original equipment and perform regular maintenance to ensure long-term reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 lb |
| Kit Type | Custom Bundle |
| Mounting Style | Pipe Mount Swivel Jack |
| Groups | Heavy Duty Trailers |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 15" Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 8000 lb |
| Lifting Load Capacity | 5000 lb |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non-Spring Return |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.5" Outer Tube |
| Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 12.66" |
| Bracket-to-Bottom Clearance (Extended) | 41.16" |
| Bracket-to-Top Clearance | 12.40" |
| Electric Lift | Non-Electric |
