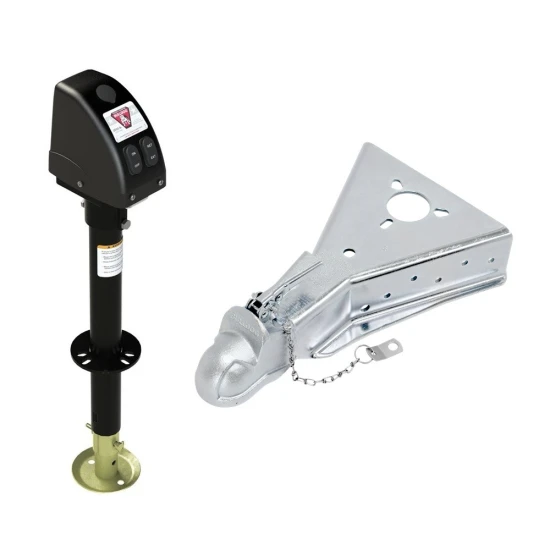

Bulldog 3.5K A-Frame Powered Drive Trailer Jack 14" Lift w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC238Bulldog 3.5K A-Frame Powered Electric Trailer Jack & 15K Cast-Head Coupler Bundle
Experience effortless trailer setup and unbeatable strength with this complete Bulldog bundle. It combines a 3,500 lb electric A-frame jack (14″ travel) with a heavy-duty 15,000 lb Cast-Head “Wedge-Latch” coupler—perfect for utility, livestock, cargo, and construction trailers using a 2-5/16″ ball.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 3,500 lb Lift Capacity, Bolt-On, 14″ Travel
- Electric lift with integrated gearbox & motor
- 22″ total travel; drop-leg footplate
- Onboard LED courtesy light for night hookup
- Emergency manual override crank included
- Corrosion-resistant finish; limited 5-year warranty
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 15,000 lb Capacity
- Patented Cast-Head “Wedge-Latch” clamp design
- Quick engage/disengage; SAE J684 compliant
- Replaceable latching hardware for extended life
- Ideal for high-capacity utility & livestock trailers
Please verify your trailer’s OE mounting and perform regular maintenance to ensure optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | A-Frame, Round, Non-Swivel |
| Lift Mechanism | 3500 lb Electric Lift |
| Travel Range | 14″ Lift |
| Finish | Black Zinc Plated |
| Static Load Capacity | 3500 lb |
| Foot Type | Footplate, Drop Leg |
| Coupler Design | Cast-Head Wedge-Latch™; SAE J684 |
| Outer Tube | 2.25″ OD; Inner Tube 2″ ID |
| Bracket-to-Bottom Clearance | 9.75″ Retracted / 31.5″ Extended |
| Bracket-to-Top Clearance | 20.5″ |
$598 99 $651.43 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$651.43 $598 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC238
- Includes: Powered A-Frame Jack, Trailer Coupler
