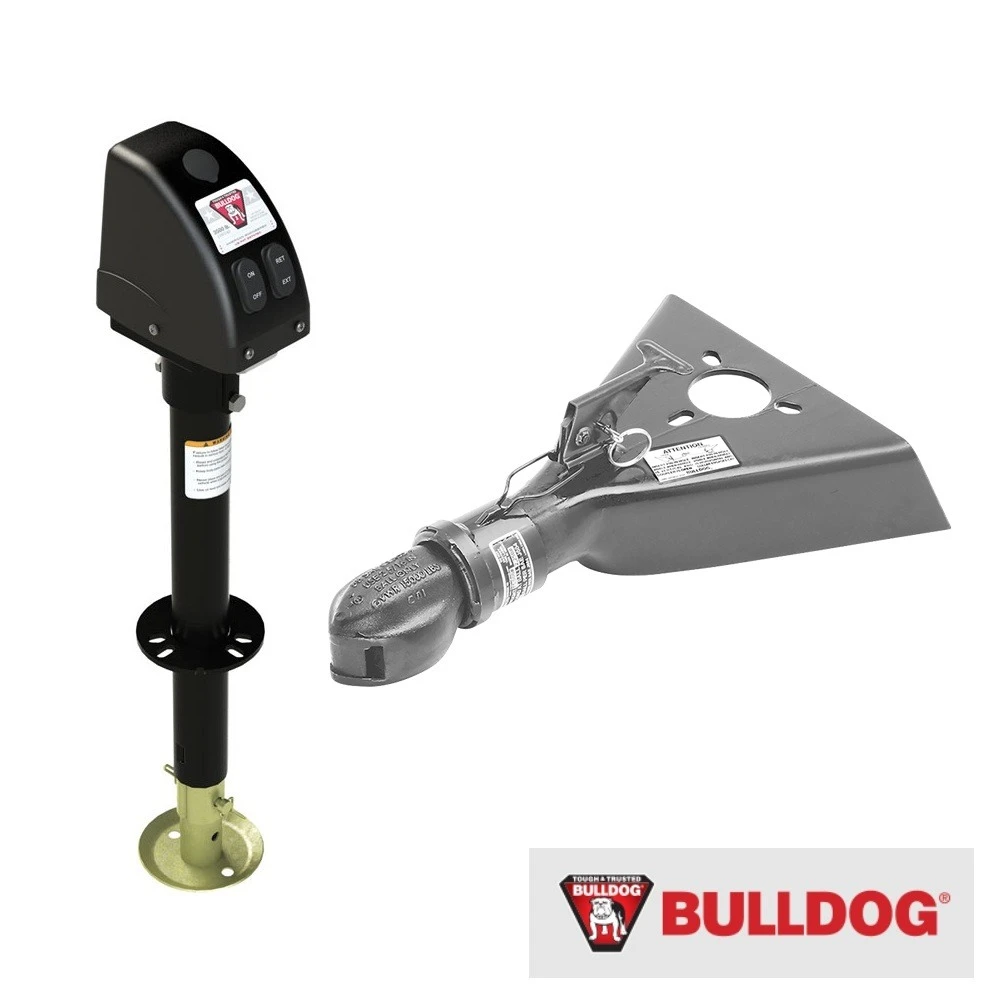

Bulldog 3.5K A-Frame Powered Drive Trailer Jack 14" Lift w/ 15K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC235Bulldog 3.5K Electric A-Frame Trailer Jack & 15K Collar-Lok Coupler
Upgrade your trailer’s hookup with this rugged Bulldog bundle. It combines a powerful 3,500 lb-capacity electric A-Frame jack featuring 14″ of lift with a 15,000 lb-rated Collar-Lok™ coupler on a 2-5/16″ ball—providing reliable performance, corrosion-resistance, and easy hookup in all conditions.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 3,500 lbs. Lift Capacity, Bolt-On, 14 Inch Travel
- Tough & Trusted: industry-leading gearbox and motor
- Positions quickly with 22″ of total travel
- Onboard LED courtesy light for night hookup
- Emergency manual override crank included
- Black zinc-plated finish for corrosion resistance
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Automatic, continuously tight ball fit
- Hinged ball socket for easy hookup
- Clear visual indication of proper closure
- Strong in static and dynamic loading
- Ideal for utility, horse/livestock, cargo, and construction trailers
We recommend verifying original equipment specifications before installation and performing regular maintenance to ensure long-term reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Zinc Plated |
| Jack Static Load Capacity | 3500 LB Static Capacity |
| Jack Lifting Load Capacity | 3500 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx. Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Approx. Bracket-to-Bottom Clearance (Extended) | 32 Inch |
| Approx. Bracket-to-Top Clearance | 21 Inch |
| Electric Lift | 3500 LB Electric Lift |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 9.75 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 31.50 Inch |
| Exact Bracket-to-Top Clearance | 20.50 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
