Bulldog 3.5K A-Frame Powered Drive Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Model: BTJC229Bulldog 3.5K Electric A-Frame Powered Drive Jack & 5K Collar-Lok™ Coupler Bundle
Equip your utility, horse/livestock, cargo, or construction trailer with this rugged bundle—including a 3,500 lb electric A-frame jack and a 5,000 lb Collar-Lok™ coupler—to simplify hookup, improve side-load strength, and ensure years of reliable performance.

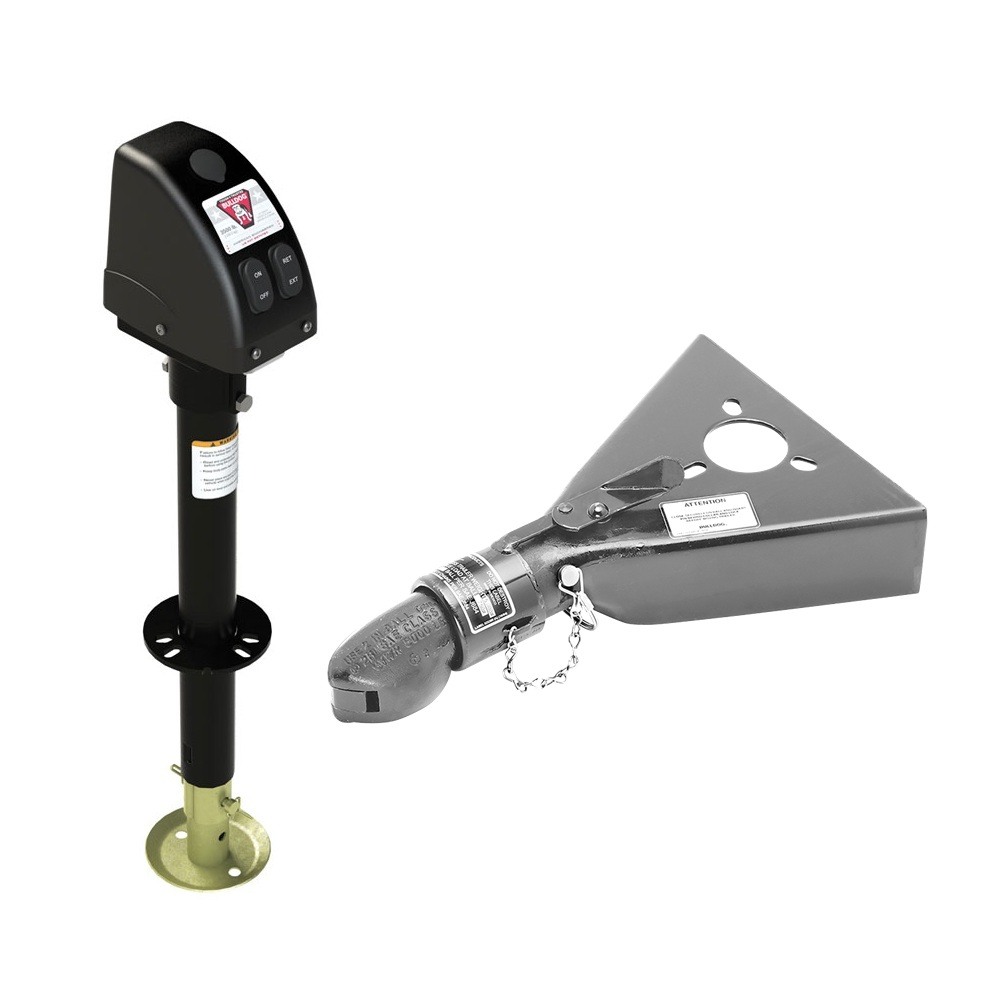

Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 3,500 lbs. Lift Capacity, Bolt-On, 14″ Travel
- 14″ total travel with 22″ positioning range
- Integrated gearbox & motor for smooth operation
- Drop leg footplate for stability when detached
- Onboard LED courtesy light for night hookup
- Manual crank override for power-loss situations
- Black zinc plating for corrosion resistance
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2″ Ball, 5,000 lbs. Capacity
- Automatic, continuously tight ball fit
- Hinged ball socket for effortless hookup
- Clear visual indicator of proper closure
- Industry-leading static & dynamic load strength
- Durable zinc finish for long-term protection
Please verify your trailer’s original equipment specifications and perform regular maintenance to maximize safety and longevity.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift (3500 lb) |
| Jack Travel Range | 14″ Lift |
| Jack Finish | Black Zinc Plated |
| Static & Lifting Load Capacity | 3500 LB |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Shape | Round Jack |
| Bracket-to-Bottom Clearance (Retracted) | 9.75″ |
| Bracket-to-Bottom Clearance (Extended) | 31.50″ |
| Bracket-to-Top Clearance | 20.50″ |
| Custom Bundle | No |
$559 99 $606.25 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$606.25 $559 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC229
- Includes: Powered A-Frame Jack, Trailer Coupler
