Bulldog 3K A-Frame Trailer Jack 15" Lift Sidewind w/ 15K Cast Head Coupler For 2-5/16" Ball

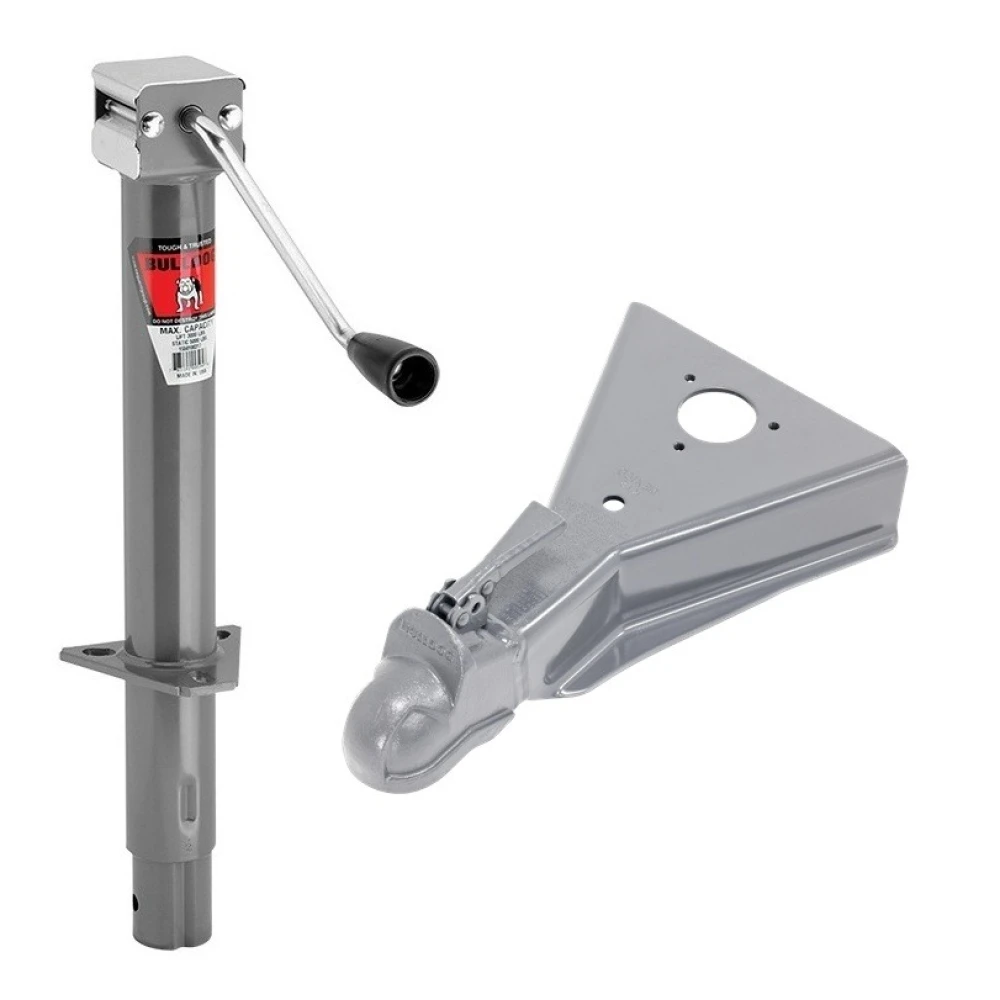

Model: BTJC128Bulldog 3K A-Frame Sidewind Jack with 15K Wedge-Latch Coupler – Complete A-Frame Trailer Upgrade Kit
Upgrade your trailer with this premium A-Frame bundle, featuring a heavy-duty 3,000 lb Bulldog sidewind jack and a 15,000 lb cast head coupler for 2-5/16” hitch balls. This pairing is perfect for utility, livestock, cargo, and construction trailers, offering unmatched reliability, superior design, and long-lasting performance.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
- Industry-standard Bulldog brand jack
- Ergonomic sidewind handle for smooth operation
- 13” lift with 3,000 lb rated capacity
- Grey painted outer and inner tubes for corrosion resistance
- Precision fitted parts ensure stability and durability

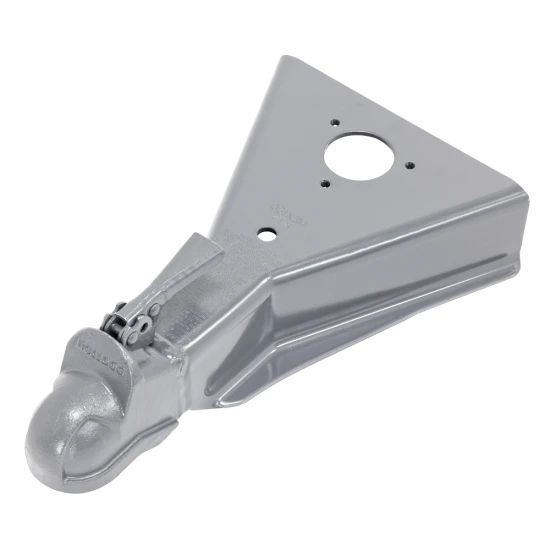

- QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Heavy-duty cast head “Wedge-Latch” design
- Quick to hook up and disconnect
- Replaceable latch hardware for extended service life
- Meets SAE J684 safety standards
- Ideal for utility, cargo, livestock, and construction trailers
Before purchase, always confirm compatibility with your trailer's original equipment. Perform regular inspections and maintenance for safe towing.
| Specifications: | |
|---|---|
| Kit Type | Trailer Jack & Coupler Upgrade Kit |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | A-Frame, Round |
| Jack Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 13 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 3,000 LB |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tube Diameter | 2 Inch |
| Electric Lift | Non Electric |
| Bracket-to-Bottom (Retracted) | 7 Inch |
| Bracket-to-Bottom (Extended) | 20 Inch |
| Bracket-to-Top Clearance | 14.50 Inch |
$241 99 $290.99 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$290.99 $241 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC128
- Includes: A-Frame Jack, Trailer Coupler
