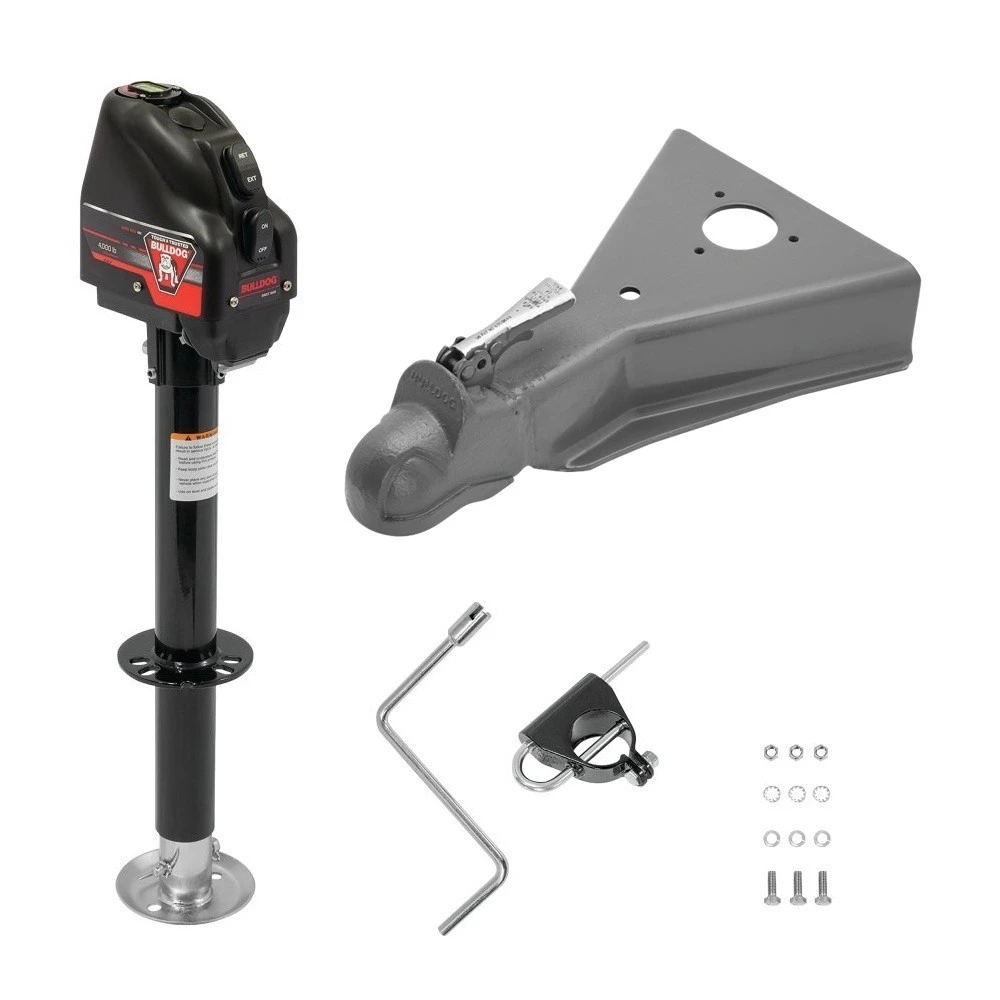

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 12.5K Cast Head Coupler for 2-5/16" Ball
Model: BTJC263BULLDOG 4,000 lb Electric A-Frame Trailer Jack with 12,500 lb Cast-Head Coupler
Upgrade your trailer setup with this heavy-duty Bulldog bundle: a powerful 4,000 lb electric A-frame jack featuring LED courtesy light and manual override, paired with a rugged 12,500 lb cast-head “Wedge-Latch” coupler for 2-5/16″ trailer balls. Engineered for durability and ease of use, it’s perfect for utility, cargo, livestock, and construction trailers.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- Positions quickly with 22″ of travel
- Integrated gearbox and motor for smooth operation
- Onboard LED courtesy light for night use
- Emergency manual override crank included
- Corrosion-resistant black zinc finish
- Limited 5-year warranty
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 12,500 lbs. Capacity
- Patented cast-head “Wedge-Latch” design
- Quick and secure ball clamp engagement
- Replaceable latching hardware for longer service life
- Meets SAE standard J684 for safety
- Ideal for utility, livestock, cargo, and construction trailers
We recommend you verify compatibility with your original equipment and perform regular maintenance to ensure optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 lbs |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Electric Lift (4000 lbs) |
| Jack Travel Range | 14″ Lift |
| Finish | Black Zinc Plated |
| Static Load Capacity | 4000 lbs |
| Foot Type | Footplate |
| Leg Style | Drop Leg, Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Bracket-to-Bottom Clearance (Retracted) | 9.75″ |
| Bracket-to-Bottom Clearance (Extended) | 31.75″ |
| Bracket-to-Top Clearance | 21″ |
| Coupler Capacity | 12,500 lbs |
$996 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$996 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC263
- Includes: Powered A-Frame Jack, Trailer Coupler
