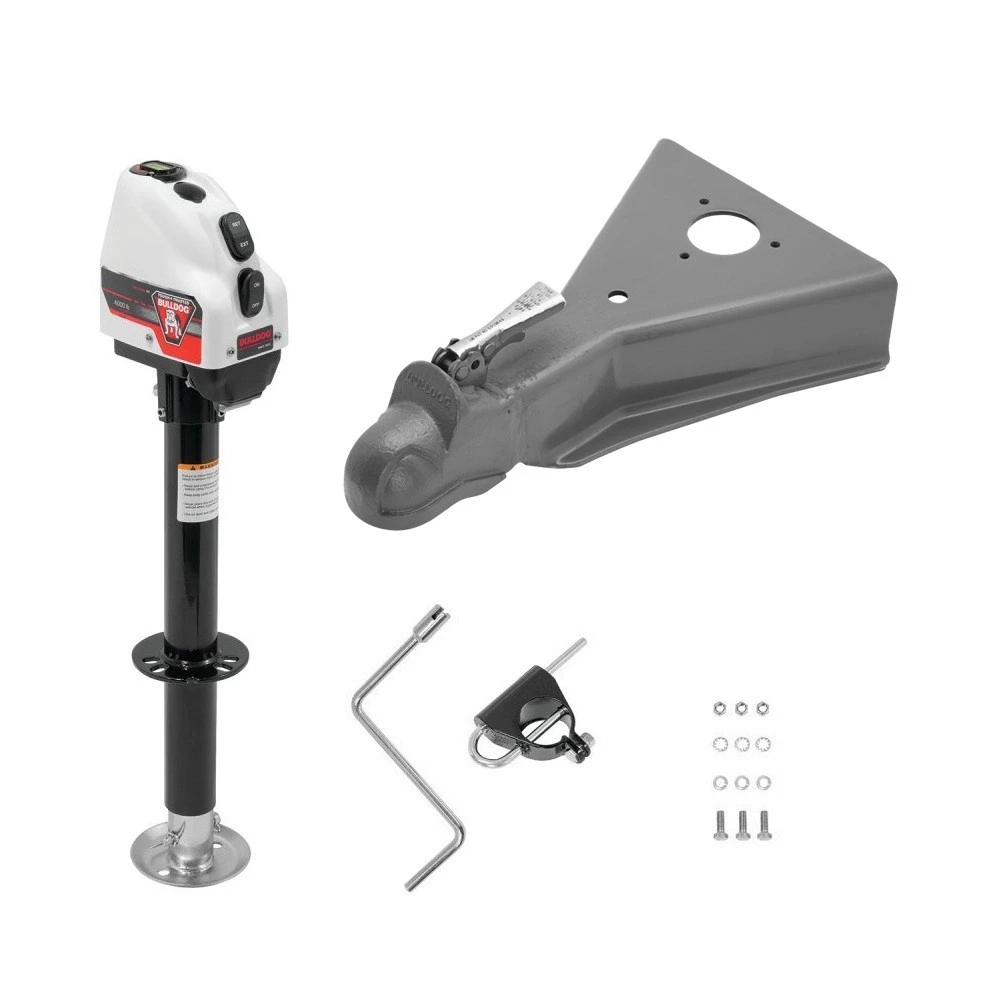

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 12.5K Cast Head Coupler for 2-5/16" Ball
Model: BTJC276Bulldog 4 000 lb Electric A-Frame Jack + 12 500 lb Cast-Head Coupler Bundle
Get unmatched strength and convenience with this Bulldog combo: a 4 000 lb-capacity powered A-frame jack paired with a 12 500 lb cast-head “Wedge-Latch” coupler. Perfect for utility, cargo, horse, livestock, and construction trailers, this bundle brings corrosion-resistant durability and effortless hookup to every tow.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4 000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- 22″ of fast, motorized travel with integrated gearbox
- Onboard LED courtesy light for nighttime hookup
- Emergency manual override crank included
- Black zinc-plated finish resists corrosion
- 5-year limited warranty for long-term peace of mind
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 12 500 lbs. Capacity
- Patented cast-head “Wedge-Latch” design for secure engagement
- Quick and easy hook-up and disconnect
- Heavy-duty construction meets SAE J684 standard
- Replaceable latching hardware extends service life
- Built for utility, horse/livestock, cargo, and construction trailers
Before installation, confirm your trailer’s original equipment specifications and perform regular maintenance on all moving parts to ensure smooth, safe operation.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift (4000 LB) |
| Jack Travel Range | 14″ Lift |
| Finish | Black Zinc Plated |
| Static Load Capacity | 4000 LB |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tubing Diameter | 2″ |
| Bracket-to-Bottom Clearance (Retracted) | 9.75″ |
| Bracket-to-Bottom Clearance (Extended) | 31.75″ |
| Bracket-to-Top Clearance | 21″ |
| Coupler Capacity | 12 500 lbs. |
| Coupler Ball Size | 2-5/16″ |
$662 99 $692.62 4% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$692.62 $662 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC276
- Includes: Powered A-Frame Jack, Trailer Coupler
