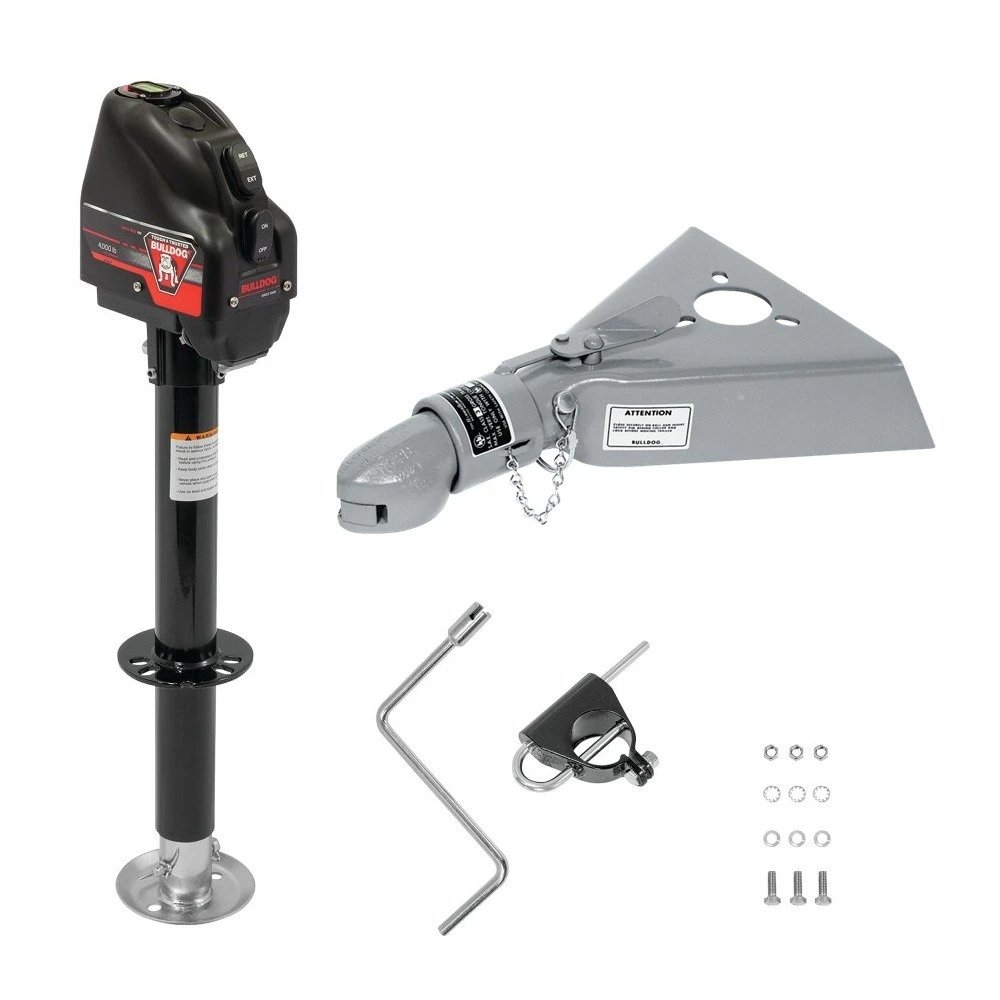

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC253Bulldog 4K Powered Electric A-Frame Trailer Jack Bundle
Upgrade your towing setup with this heavy-duty bundle featuring a 4,000 lb-capacity powered A-frame jack and a 12,500 lb Collar-Lok™ coupler. Designed for effortless lift, secure hookups, and long-lasting performance.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22 Inch Travel
- Integrated gearbox and motor for smooth operation
- LED courtesy light for nighttime hookups
- Manual crank override in case of power loss
- Durable black zinc-plated finish resists corrosion
- 14″ lift range with 10″ retracted to 32″ extended clearance
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16″ Diameter, 12,500 lbs. Capacity
- Automatic, continuously tight ball fit for secure towing
- Hinged socket design for easy hookup
- Clear visual indicator of proper closure
- Strong static and dynamic load performance
- Designed for utility, livestock, cargo, and construction trailers
Always verify compatibility with your trailer’s OEM specifications and perform regular maintenance to ensure safe, reliable towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Zinc Plated |
| Static Load Capacity | 4000 LB |
| Lifting Load Capacity | 4000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tube Diameter | 2 Inch |
| Bracket-to-Bottom Clearance (Retracted) | 9.75 Inch |
| Bracket-to-Bottom Clearance (Extended) | 31.75 Inch |
| Bracket-to-Top Clearance | 21 Inch |
| Electric Lift Capacity | 4000 LB |
| Custom Bundle | No |
