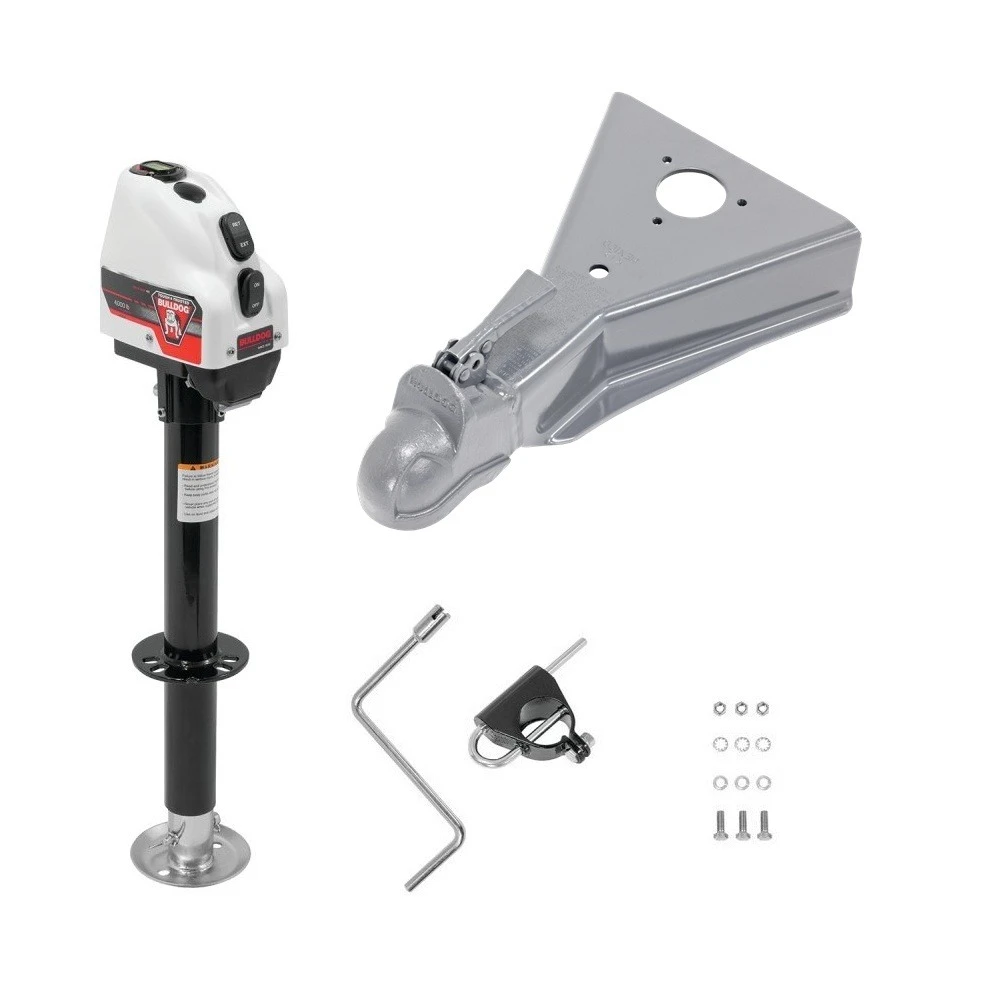

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC278Bulldog 4K Electric A-Frame Trailer Jack & 15K Cast Head Coupler Bundle
Upgrade your trailer’s ease of use and reliability with this complete Bulldog bundle. Featuring a powerful 4,000 lb electric A-Frame jack and an industry-leading 15,000 lb cast-head coupler, you’ll hook up quickly, maneuver smoothly, and tow with confidence.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- Positions quickly with 22″ of total travel
- 4,000 lb lift capacity via electric motor
- Integrated gearbox and motor
- Drop leg for stable support
- Onboard LED courtesy light illuminates coupler area
- Emergency manual override crank included
- Corrosion-resistant finish for lasting appearance
- Limited 5-year warranty
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 15,000 lb Capacity
- Designed for utility, horse/livestock, cargo & construction trailers
- Patented cast-head “Wedge-Latch” coupler design
- Heavy-duty A-frame with adjustable height
- Replaceable latching hardware for extended service life
- Quick and easy to engage/disengage
- Meets SAE J684 standard
Always verify compatibility with your trailer’s original equipment and perform regular maintenance to ensure safe, long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14″ Lift |
| Jack Finish | Black Zinc Plated |
| Jack Static Load Capacity | 4000 LB Static Capacity |
| Jack Lifting Load Capacity | 4000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25″ Outer Tube |
| Jack Shape | Round Jack |
| Bracket-to-Bottom Clearance (Retracted) | 10″ |
| Bracket-to-Bottom Clearance (Extended) | 32″ |
| Bracket-to-Top Clearance | 21″ |
| Electric Lift | 4000 LB Electric Lift |
| Custom Bundle | No |
| Exact Retracted Clearance | 9.75″ |
| Exact Extended Clearance | 31.75″ |
| Exact Top Clearance | 21″ |
| Inner Tubing Diameter | 2″ Inner Tube |
