Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Model: BTJC255Bulldog 4K Powered Drive A-Frame Jack with 5K Collar-Lok Coupler
Upgrade your trailer setup with this all-in-one bundle featuring a high-capacity electric A-frame jack and industry-leading Collar-Lok™ coupler. Perfect for heavy-duty utility, livestock, cargo, and construction trailers, you’ll enjoy effortless lifting and a continuously tight ball fit every time.

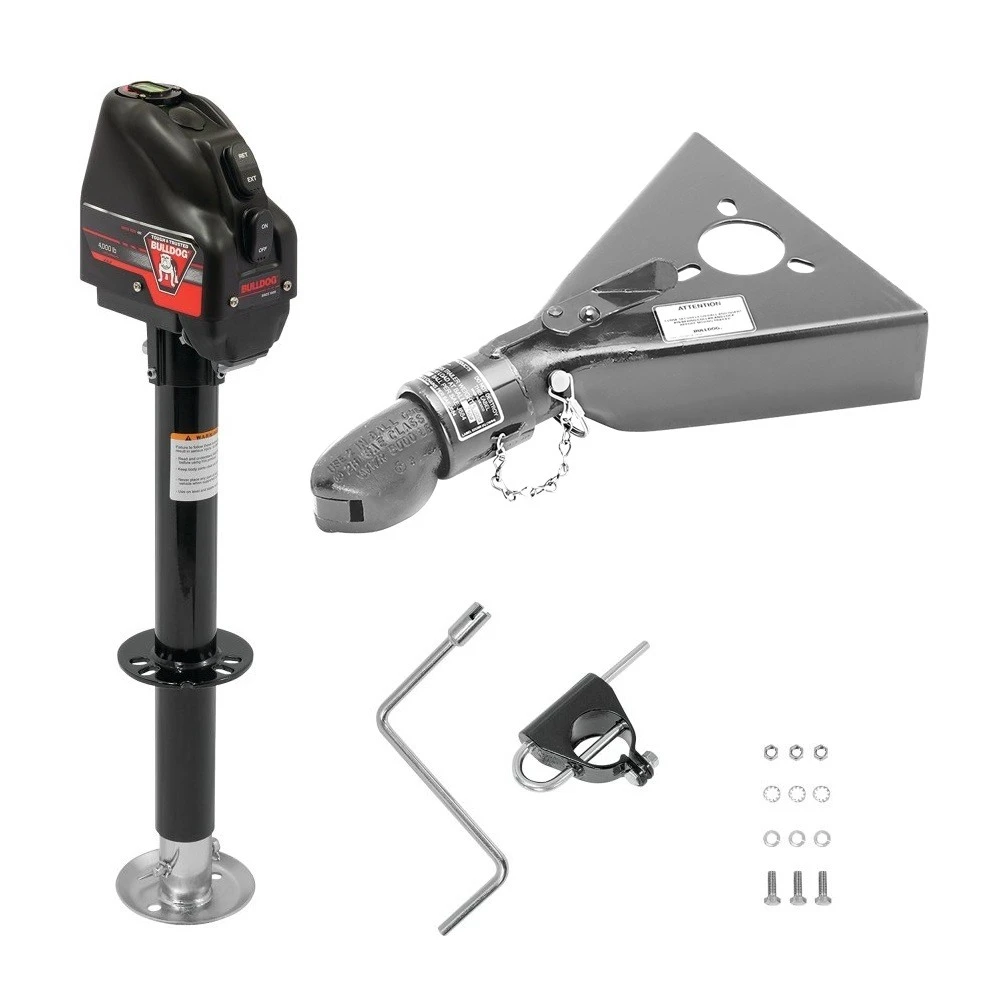

Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- Positions quickly with 22″ of total travel
- 4,000 lbs. lift capacity
- Integrated gearbox and motor
- Drop leg design for stability
- LED courtesy light for nighttime hookup
- Emergency manual override with included crank
- Industry-leading strength, durability, and side-load capacity
- Corrosion-resistant black zinc finish
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2″ Diameter, 5,000 lbs. Capacity
- Automatic, continuously tight ball fit
- Easiest to use in the industry
- Strong in both static and dynamic loading
- Hinged ball socket for quick hookup
- Clear visual indication of proper closure
Before installation, always verify compatibility with your trailer’s tongue and perform regular maintenance to ensure long-term reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift (4,000 lb) |
| Jack Travel Range | 14″ Lift |
| Jack Finish | Black Zinc Plated |
| Static Load Capacity | 4,000 lb |
| Lifting Load Capacity | 4,000 lb |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg, Non-Spring Return |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Shape | Round Jack |
| Bracket-to-Bottom Clearance (Retracted) | 9.75″ |
| Bracket-to-Bottom Clearance (Extended) | 31.75″ |
| Bracket-to-Top Clearance | 21″ |
| Inner Tube Diameter | 2″ |
| Custom Bundle | No |
