Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball

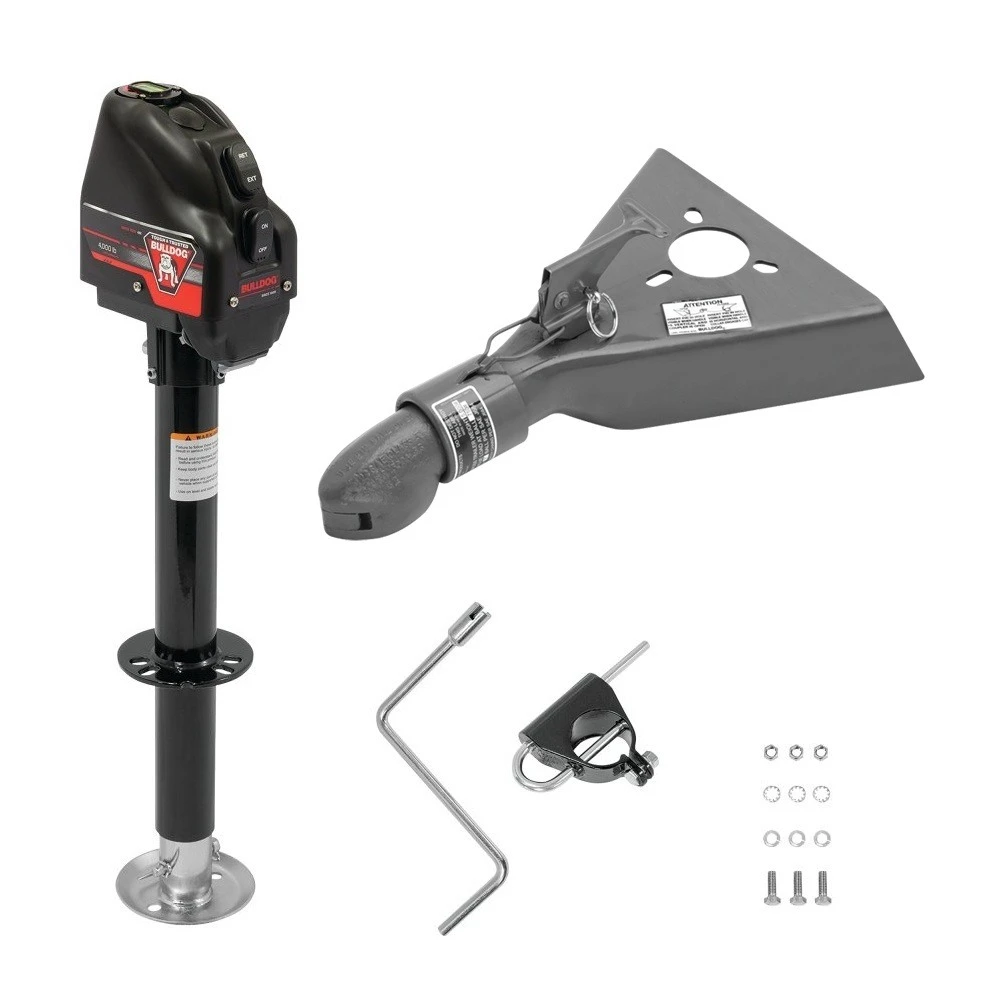

Model: BTJC258Bulldog 4K Electric A-Frame Trailer Jack & 5K Collar-Lok™ Coupler Bundle
Upgrade your trailer setup with this heavy-duty Bulldog bundle, combining a smooth-operating 4,000 lb electric A-frame jack and the industry-leading 5,000 lb Collar-Lok™ coupler. Perfect for utility, horse/livestock, cargo, and construction trailers, this pair ensures effortless lift, secure connections, and lasting corrosion resistance.
Bundle Contents:
- QTY (1): Bulldog 4K Powered Drive A-Frame Trailer Jack (14″ Lift)
- Electric lift mechanism with 4,000 lb capacity
- 22″ total travel; bolt-on triangular center mount
- Integrated gearbox and motor for smooth operation
- Onboard LED courtesy light for nighttime hookup
- Emergency manual override crank included
- Black zinc-plated finish for corrosion resistance
- Limited 5-year warranty
- QTY (1): Bulldog Collar-Lok™ A-Frame Coupler (2″ Ball, 5,000 lb Capacity)
- Automatic, continuously tight ball fit
- Hinged ball socket for easy hookup
- Clear visual indication of proper closure
- Strong static and dynamic load performance
- Adjustable to maintain level trailer operation
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance to ensure safe, reliable towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14″ Lift |
| Finish | Black Zinc Plated |
| Static Load Capacity | 4,000 lb |
| Electric Lift Capacity | 4,000 lb |
| Coupler Ball Size | 2″ Diameter |
| Coupler Capacity | 5,000 lb |
$969 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$969 99
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
You are in!
We will alert you the moment it is back.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC258
- Includes: Powered A-Frame Jack, Trailer Coupler
| Default | |
| Brand | Bulldog |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Zinc Plated |
| Jack Static Load Capacity | 4000 LB Static Capacity |
| Jack Lifting Load Capacity | 4000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 32 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 21 Inch Bracket-to-Top Clearance |
| Electric Lift | 4000 LB Electric Lift |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 9.75 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 31.75 Inch |
| Exact Bracket-to-Top Clearance | 21 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
Ask a Question about Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Be the first to ask a question.
Description
Bulldog 4K Electric A-Frame Trailer Jack & 5K Collar-Lok™ Coupler Bundle
Upgrade your trailer setup with this heavy-duty Bulldog bundle, combining a smooth-operating 4,000 lb electric A-frame jack and the industry-leading 5,000 lb Collar-Lok™ coupler. Perfect for utility, horse/livestock, cargo, and construction trailers, this pair ensures effortless lift, secure connections, and lasting corrosion resistance.
Bundle Contents:
- QTY (1): Bulldog 4K Powered Drive A-Frame Trailer Jack (14″ Lift)
- Electric lift mechanism with 4,000 lb capacity
- 22″ total travel; bolt-on triangular center mount
- Integrated gearbox and motor for smooth operation
- Onboard LED courtesy light for nighttime hookup
- Emergency manual override crank included
- Black zinc-plated finish for corrosion resistance
- Limited 5-year warranty
- QTY (1): Bulldog Collar-Lok™ A-Frame Coupler (2″ Ball, 5,000 lb Capacity)
- Automatic, continuously tight ball fit
- Hinged ball socket for easy hookup
- Clear visual indication of proper closure
- Strong static and dynamic load performance
- Adjustable to maintain level trailer operation
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance to ensure safe, reliable towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14″ Lift |
| Finish | Black Zinc Plated |
| Static Load Capacity | 4,000 lb |
| Electric Lift Capacity | 4,000 lb |
| Coupler Ball Size | 2″ Diameter |
| Coupler Capacity | 5,000 lb |
