Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Model: BTJC268BULLDOG 4,000 lb Electric A-Frame Jack with 5,000 lb Collar-Lok™ Coupler
Upgrade your towing setup with this heavy-duty Bulldog bundle—featuring a powerful 4,000 lb electric drive jack and Bulldog’s industry-leading 5,000 lb Collar-Lok™ coupler. Designed for quick operation and long-lasting reliability, this pair ensures smooth hookups, steady support, and unmatched durability under load.

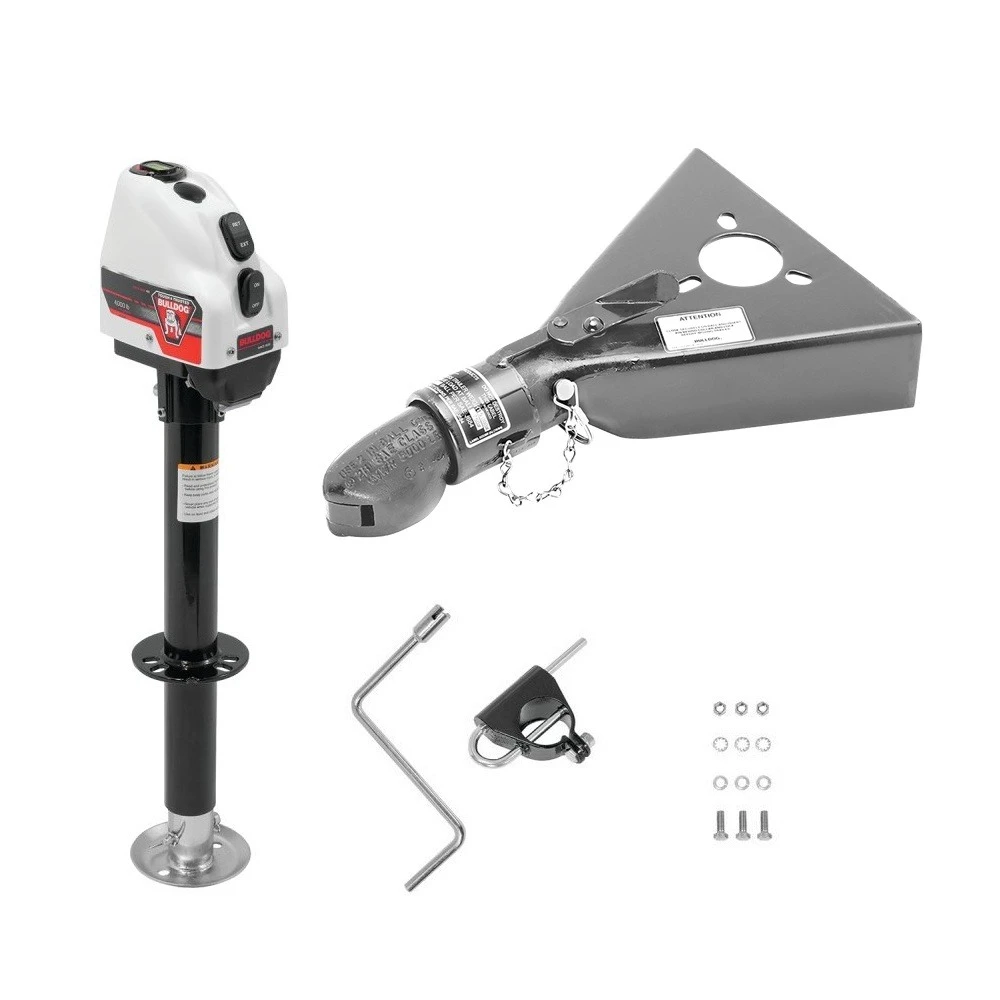

Bundle Contents:

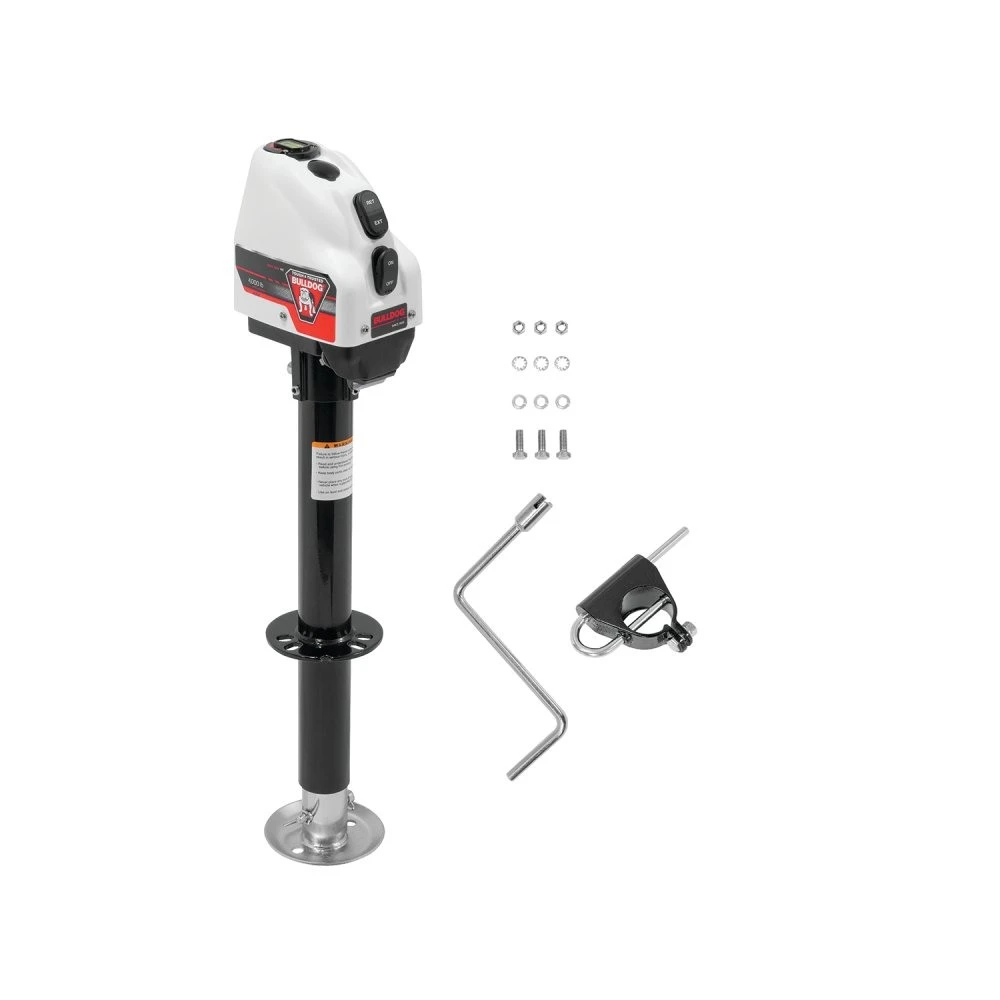

- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- Electric lift with integrated gearbox and motor for effortless raising
- 22″ total travel and 14″ lift range
- Onboard LED courtesy light angled for nighttime hookups
- Emergency manual override crank included
- Black zinc-plated finish resists corrosion
- Limited 5-year warranty for industry-leading peace of mind

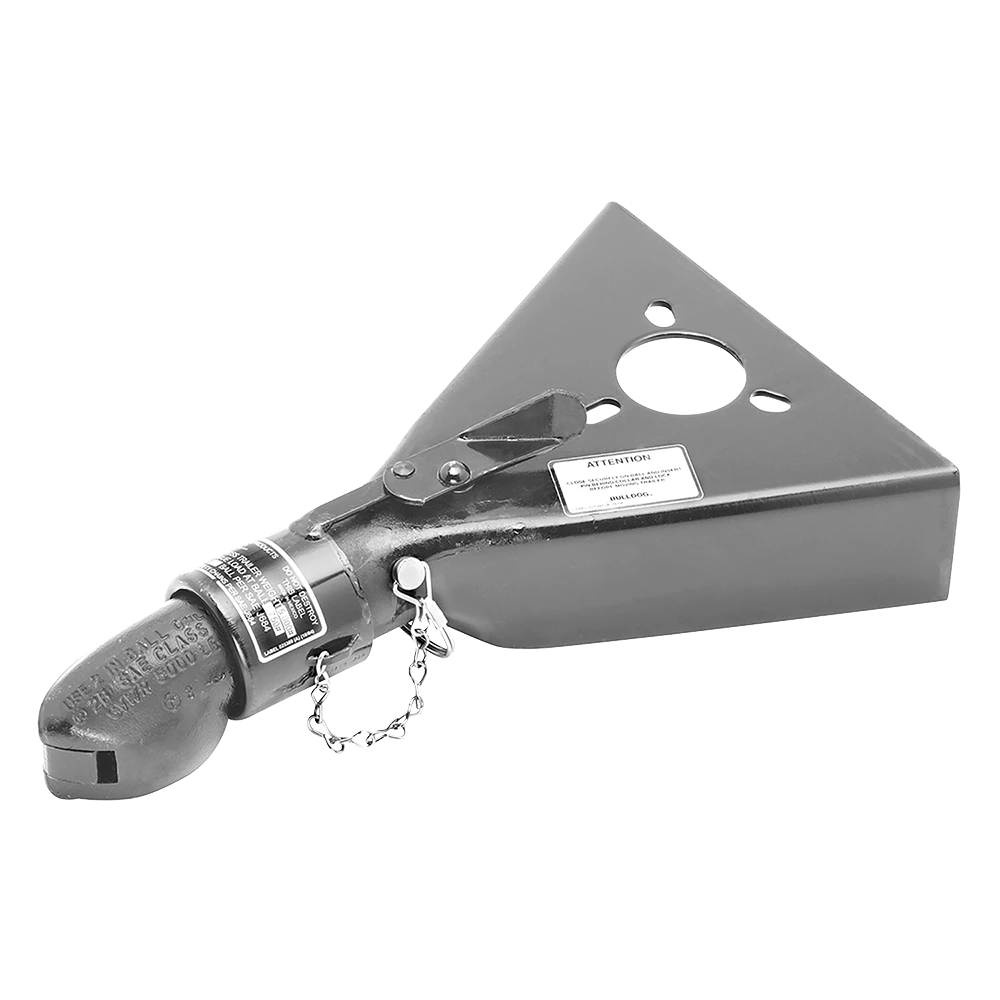

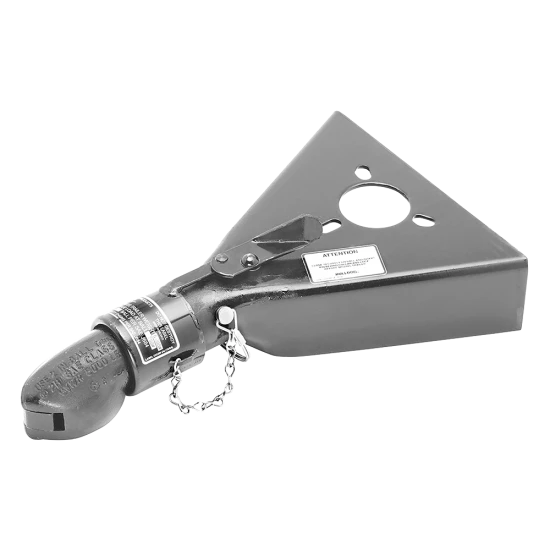

- QTY (1): Collar-Lok™ A-Frame Coupler, 2″ Diameter, 5,000 lbs. Capacity
- Automatic, continuously tight ball fit—no adjustments needed
- Hinged ball socket for easy hookup and clear visual closure indication
- Strong static and dynamic load performance
- Versatile mount options fit most utility, livestock, cargo & construction trailers
For optimal performance, verify compatibility with your trailer’s OEM specifications and perform regular maintenance on moving parts and coupler latch.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14″ Lift |
| Jack Finish | Black Zinc Plated |
| Static Load Capacity | 4,000 lb |
| Lifting Load Capacity | 4,000 lb |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tubing Diameter | 2″ |
| Bracket-to-Bottom Clearance (Retracted) | 9.75″ |
| Bracket-to-Bottom Clearance (Extended) | 31.75″ |
| Bracket-to-Top Clearance | 21″ |
$640 99 $673.54 5% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$673.54 $640 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC268
- Includes: Powered A-Frame Jack, Trailer Coupler
