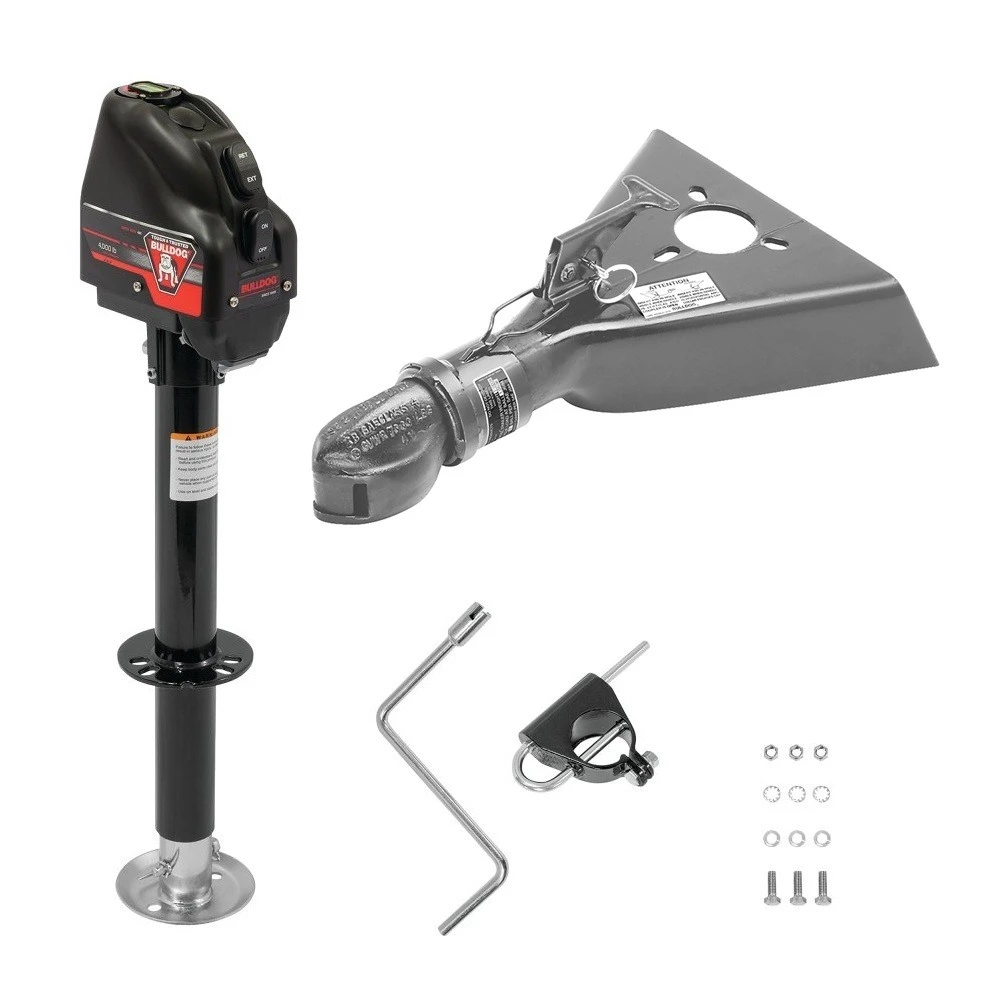

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 7K Collar-Lok Coupler for 2" Ball
Model: BTJC257Bulldog 4K Electric A-Frame Trailer Jack with 7K Collar-Lok Coupler Bundle
This complete bundle combines Bulldog’s powerful 4,000 lb electric A-frame jack with the industry’s strongest 7,000 lb Collar-Lok coupler. Perfect for utility, livestock, cargo, and construction trailers, you’ll enjoy fast setup, reliable lifting, and secure hook-up in one easy package.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- Positions quickly with 22″ of total travel
- 4000 lbs. lift capacity
- Integrated gearbox and motor
- Drop leg for stable support
- On-board LED courtesy light for nighttime hookup
- Emergency manual override crank included
- Durable, corrosion-resistant finish
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2″ Diameter, 7,000 lbs. Capacity
- Automatic, continuously tight ball fit
- Designed for utility, horse/livestock, cargo, and construction trailers
- Hinged ball socket for easy hookup
- Clear visual indication of proper closure
- Strong in both static and dynamic loading conditions
- Adjustable height for level towing
We recommend verifying your trailer’s frame and ball dimensions before installation and performing regular maintenance for maximum service life.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift (4000 LB) |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Zinc Plated |
| Jack Static Load Capacity | 4000 LB Static Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Bracket-to-Bottom Clearance (Retracted) | 9.75 Inch |
| Bracket-to-Bottom Clearance (Extended) | 31.75 Inch |
| Bracket-to-Top Clearance | 21 Inch |
| Custom Bundle | No |
| Inner Tubing Diameter | 2 Inch Inner Tube |
