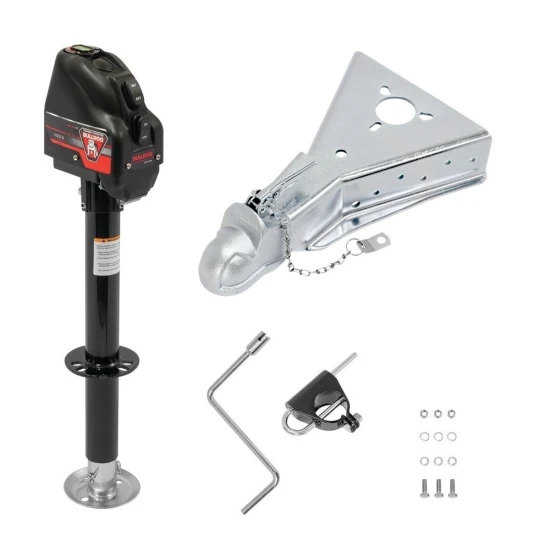

Bulldog 4K Powered Drive A-Frame Trailer Jack w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC264Bulldog 4K Electric A-Frame Trailer Jack & 15K Cast-Head Coupler Bundle
Upgrade your trailer setup with this Bulldog bundle: a powerful 4,000 lb electric A-frame jack paired with a heavy-duty 15,000 lb cast-head coupler. Fast deployment, corrosion-resistant finish, and industry-leading durability make this kit perfect for utility, cargo, livestock, and construction trailers.
Bundle Contents:
- QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
- 22″ total travel for precise positioning
- Industry-leading 4,000 lb lift capacity
- Integrated gearbox & motor for smooth operation
- Drop leg design with replaceable footplate
- Onboard LED courtesy light for night hookup
- Emergency manual override crank included
- Black zinc-plated finish for corrosion resistance
- Limited 5-year warranty

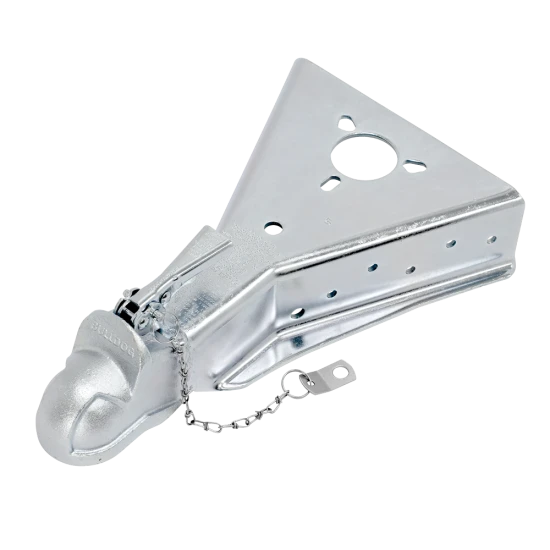

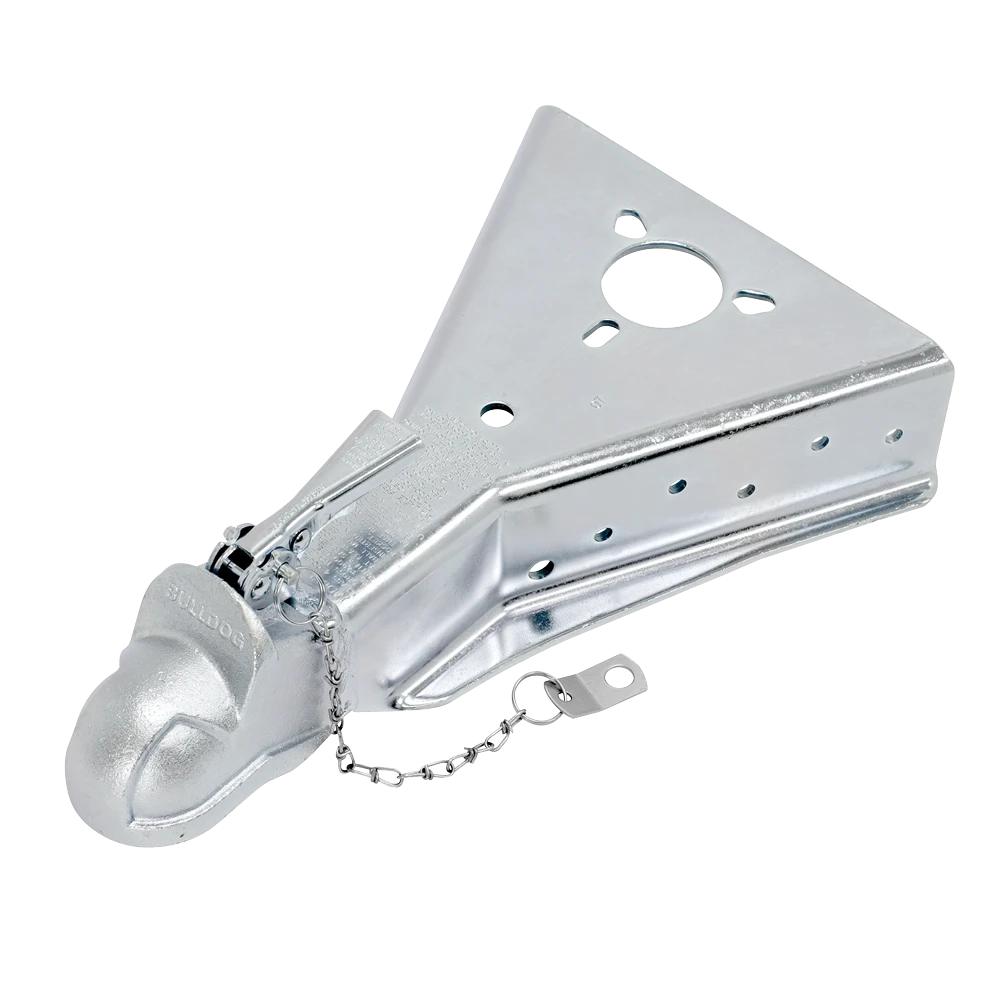

- QTY (1): Bulldog A-Frame Coupler, 2-5/16″ Diameter, 15,000 lbs. Capacity
- Patented cast-head “Wedge-Latch” design
- Quick and easy engagement
- Heavy-duty clamp secures on the road
- Adjustable height for various vehicles
- Replaceable latching hardware for longer life
- Compliant with SAE J684
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance on both jack and coupler to ensure peak performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Jack & Coupler Bundle |
| Weight Capacity | 3,001–5,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Electric Lift, 4,000 lb |
| Jack Travel Range | 14″ lift (9.75″ retracted, 31.75″ extended) |
| Jack Foot Type | Non-spring return footplate |
| Jack Tube Diameter | 2.25″ outer, 2″ inner |
| Bracket-to-Bottom Clearance | 10″ retracted, 32″ extended |
| Coupler Ball Size | 2-5/16″ |
| Coupler Capacity | 15,000 lb |
| Finish | Black zinc-plated |
| Standards | SAE J684 compliant |
| Warranty | 5-year limited |
