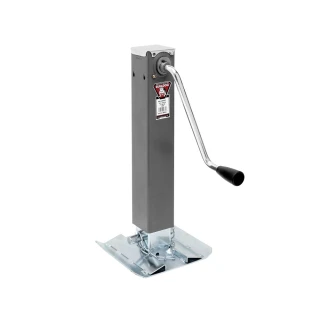

Bulldog 4x 10K Square Trailer Jack w/ 10" Lift Sidewind and Footplate

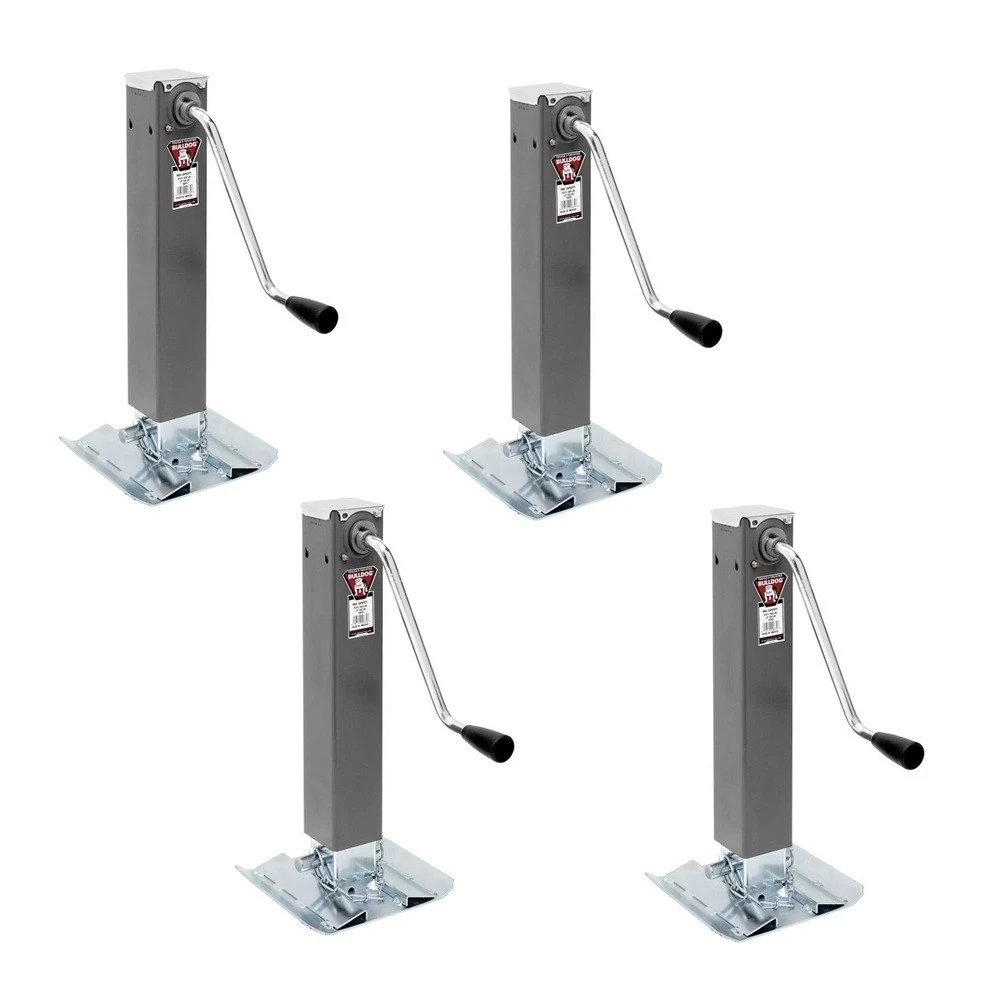

Model: BDTJ134Bulldog 4-Pack 10K Square Weld-On Sidewind Trailer Jacks with Footplate – 10″ Lift
Our bundle includes four high-performance Bulldog 10,000 lb square jacks featuring a sidewind crank handle and integrated footplate for stable, reliable support. Perfectly engineered to bridge the gap between 8K and 12K capacity jacks, these weld-on units deliver smooth operation and long-term durability.
Bundle Contents:
- QTY (4): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Sidewind, Weld-On, 10″ Travel
- Heavy-gauge 3″ square tubing—direct weld mounting, no burn-through
- Painted outer tube serves as primer or final finish
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforcement ribs prevent water retention and add strength
- Precision manufactured for smooth, easy cranking
- Grease zerk for fast, on-demand lubrication
- Oil-impregnated bushing extends gear and bearing life
- Standard direct-weld connection to outer tube
- Sidewind handle with 1:1.86 gear ratio for effortless lift
Please verify your trailer’s weld-on mounting points and perform regular lubrication and inspections to ensure optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 8,001–10,000 lbs |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10,000 lb |
| Lifting Load Capacity | 7,200 lb |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 3″ |
| Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 19.93″ |
| Bracket-to-Bottom Clearance (Extended) | 40.05″ |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
$1,369 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,369 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ134
- Includes: 10K Drop Leg Jack
