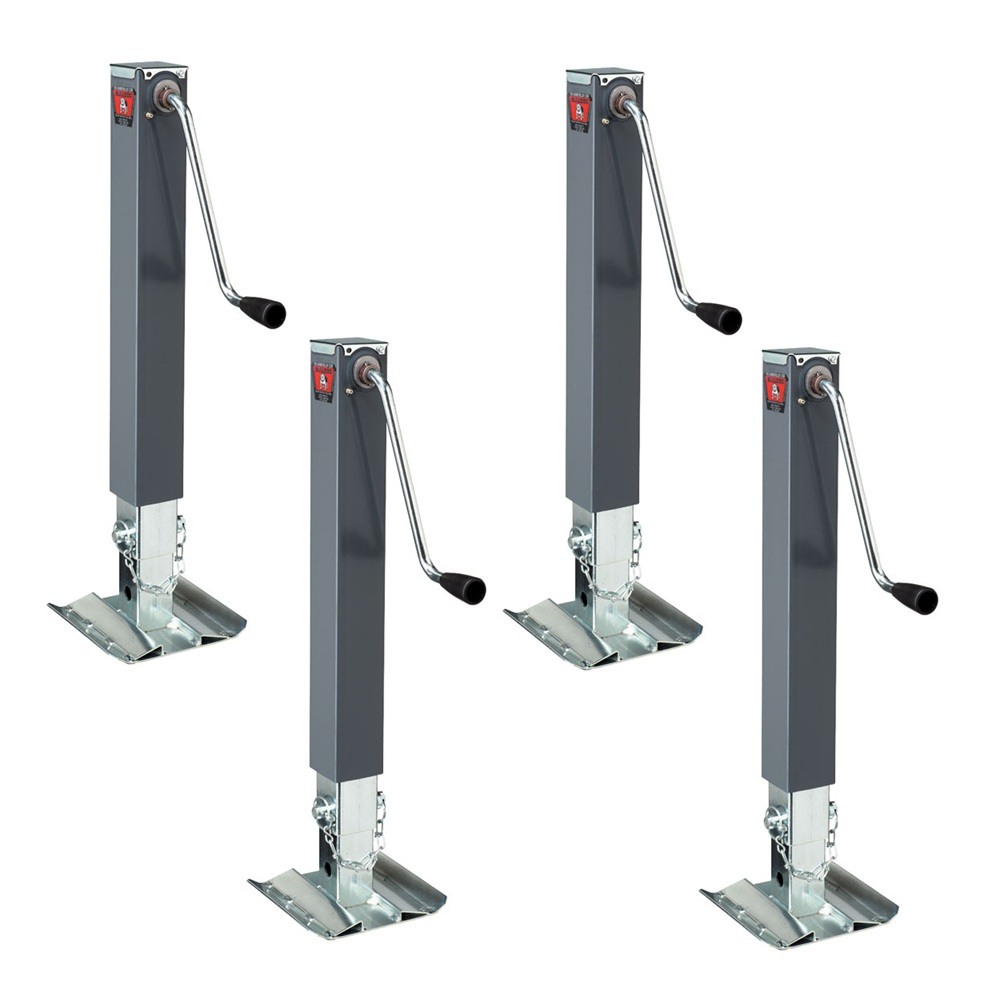

Bulldog 4x 10K Square Trailer Jack w/ 15" Lift Sidewind and Footplate
Model: BDTJ1384-Pack Bulldog 10,000 lb Capacity Square Trailer Jacks with 15″ Sidewind Lift & Footplate
Equip your heavy-duty trailer with our premium bundle of four Bulldog square trailer jacks. Each jack offers a 10,000 lb static capacity and a 15″ travel range, delivering the perfect balance of strength, speed, and smooth operation. Direct weld mounting makes installation a breeze, while corrosion-resistant finishes ensure long-term reliability.
Bundle Contents:
- QTY (4): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Sidewind, Weld-On, 15 Inch Travel
- Heavy-gauge 3″ square tubing allows direct weld mounting—no burn through
- Painted outer tube serves as final finish or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforced ribs for heavy-duty performance and zero water retention
- Precision manufactured for smooth, reliable cranking
- Grease zerk for easy lubrication maintenance
- Oil-impregnated bushing for extended bearing and gear life
- Direct weld to outer tube is standard
- Sidewind design with 1:1.86 gear ratio for efficient lift
We recommend verifying your trailer’s original equipment specifications and performing regular lubrication checks to maximize jack life and performance.
| Specifications: | |
|---|---|
| Weight Capacity | 8001-10000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10000 LB |
| Lifting Load Capacity | 7200 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 3 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 25.67 Inch |
| Bracket-to-Bottom Clearance (Extended) | 54.17 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
