Bulldog 4x 10K Square Trailer Jack w/ 15" Lift Topwind and Footplate

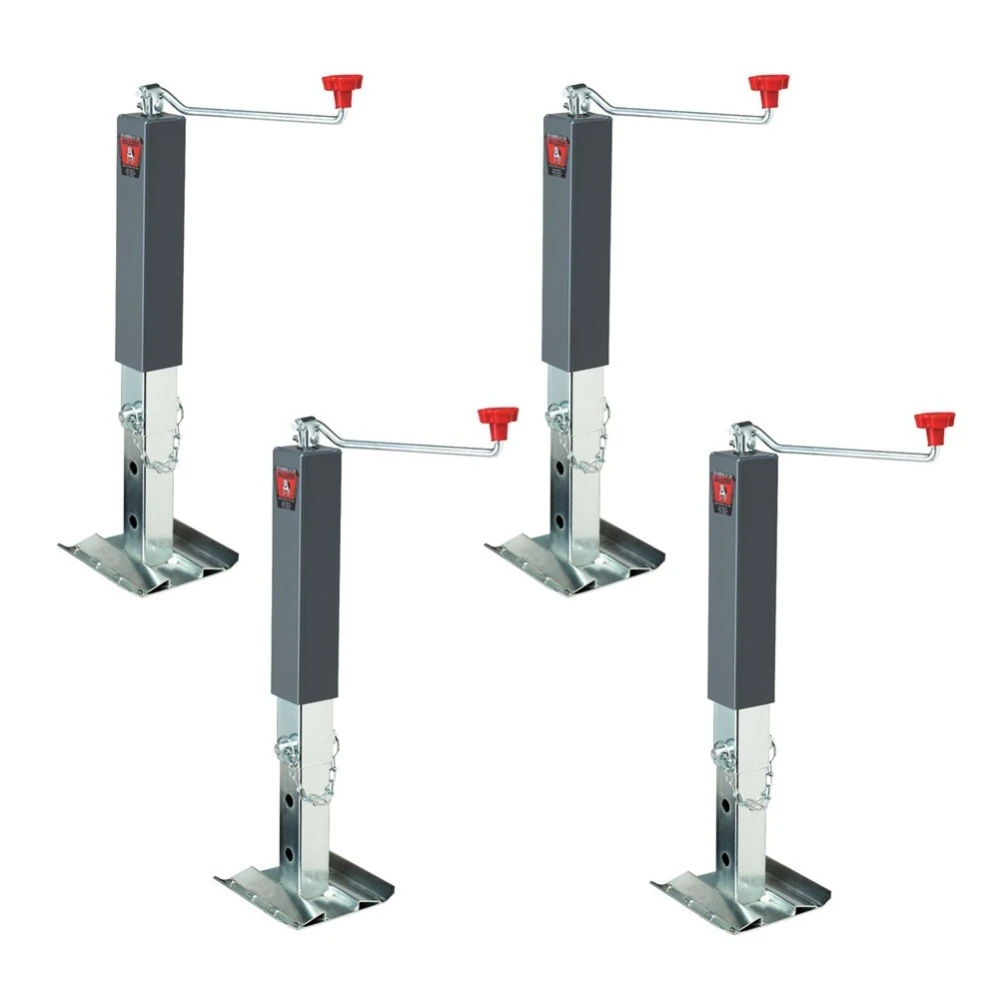

Model: BDTJ142Bulldog 10,000 lb Square Trailer Jack – 15" Lift Topwind & Footplate (4-Pack)
This 4-pack of Bulldog 10,000 lb capacity square trailer jacks with 15" topwind lift and integrated footplate offers the perfect balance of strength, durability, and ease of use. Ideal for heavy-duty trailers where 8,000 lb jacks fall short and 12,000 lb jacks are overkill— these jacks deliver smooth, reliable performance on every lift.
Bundle Contents:
- QTY (4): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Topwind, Weld-On, 10" Travel
- Heavy-gauge 3" square tubing allows for direct weld mounting—no burn-through
- Painted outer tube serves as final finish or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- Heavy-duty reinforcement ribs prevent water retention
- Precision manufactured for long-term reliability and smooth cranking
- Grease zerk for easy lubrication as needed
- Oil-impregnated bushing for improved bearing and gear life
- Direct weld to outer tube is standard
- Sidewind models feature a 1:1.86 gear ratio
Recommendation: Always verify compatibility with your trailer’s OEM specifications and perform routine lubrication and inspection to maximize jack life.
| Specifications: | |
|---|---|
| Weight Capacity | 8,001–10,000 lbs |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10" Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10,000 lbs |
| Lifting Load Capacity | 7,200 lbs |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg, Non-Spring Return |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 3" Square Tube |
| Shape | Square Jack |
| Bracket-to-Bottom (Retracted) | 18.18" |
| Bracket-to-Bottom (Extended) | 38.31" |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non-Electric |
$671 99 $725.00 7% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$725.00 $671 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ142
- Includes: 10K Drop Leg Jack
