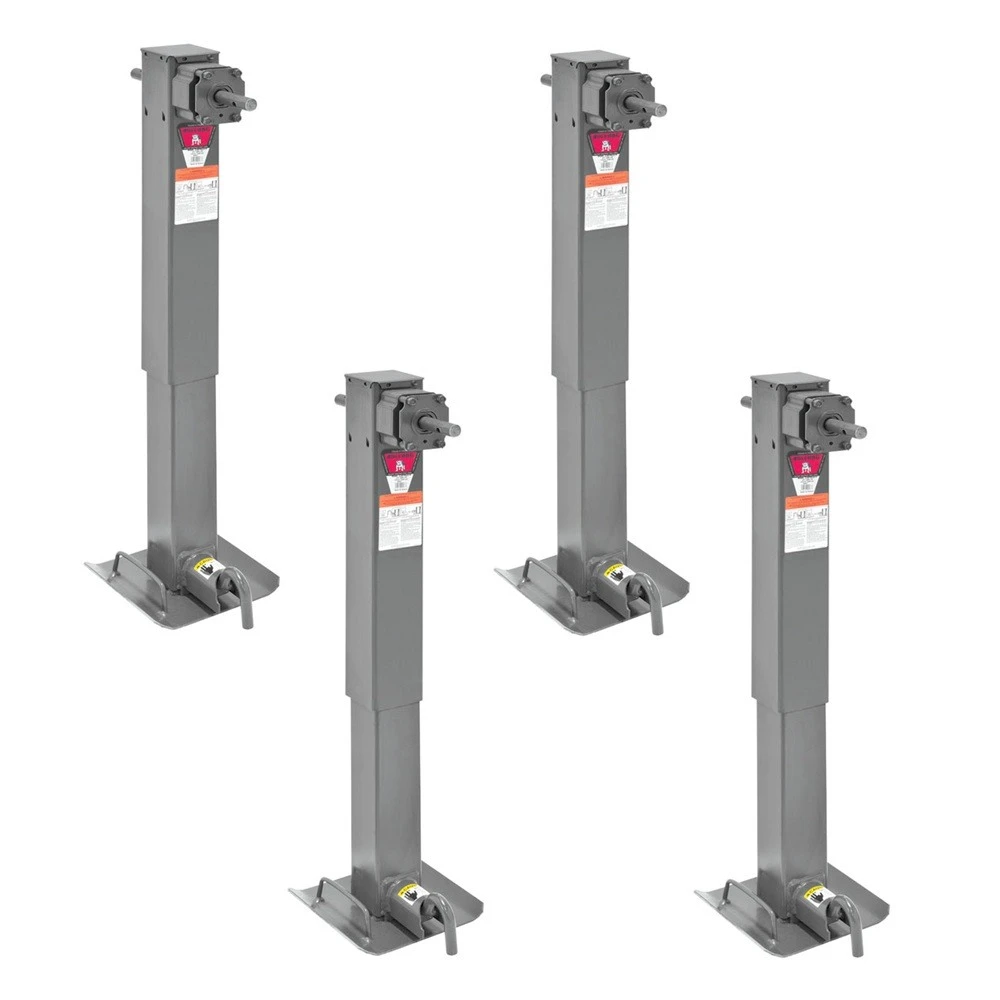

Bulldog 4x 12K 2-Speed Square Trailer Jack w/ Planetary Gearbox 26" Lift
Model: BDTJ70Bulldog 4-Pack 12K 2-Speed Square Trailer Jacks w/ Planetary Gearbox – 26″ Lift
Equip your heavy-duty trailer with four reliable Bulldog 12,000 lb two-speed square jacks featuring an integrated planetary gearbox for smoother, faster crank operation. This bundle ensures you have ample lifting capacity and enhanced structural support for agricultural, construction, or industrial applications.
Bundle Contents:
- QTY (4): Two-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Sidewind, 12-1/2″ Travel
- The first two-speed gearbox designed specifically for a drop leg jack. Bulldog’s 2-speed system provides effortless cranking under full load and quick operation when unloaded. In low gear, enjoy super-smooth, easy lifting at 27 turns per 1″ (planetary) or 29 turns per 1″ (traditional). Switch to high gear for rapid 9 turns per 1″ travel—the fastest in its class.
- State-of-the-art 2-speed gearbox delivers optimal power and speed at all loads
- Built for modern agricultural, construction, and industrial trailer applications
- User-friendly design ensures smooth, easy operation
- Engineered alloys enhance strength, stability, and sideload capability
- Planetary gearbox fits within the jack’s outer tube profile, eliminating the need for spacers
Recommendation: Always verify compatibility with your trailer’s original equipment specifications, and perform regular lubrication and inspections to extend jack life and ensure smooth operation.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
