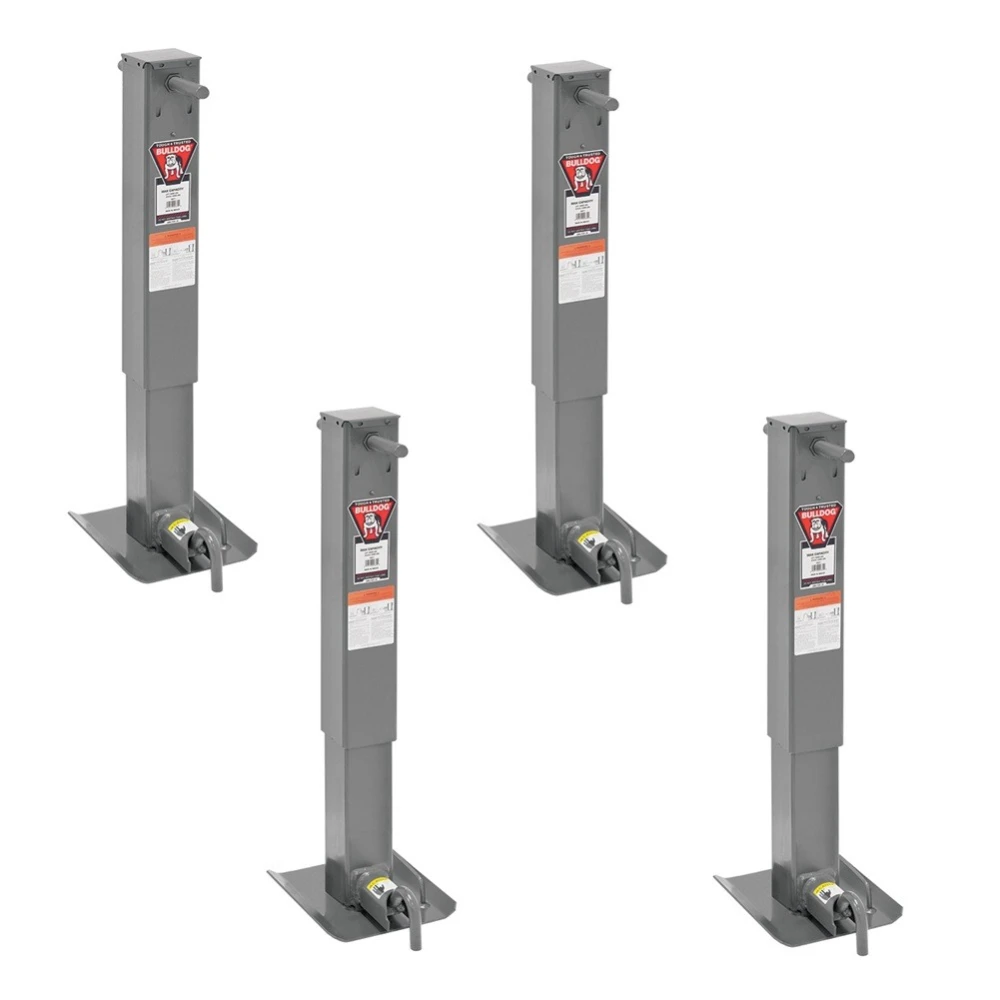

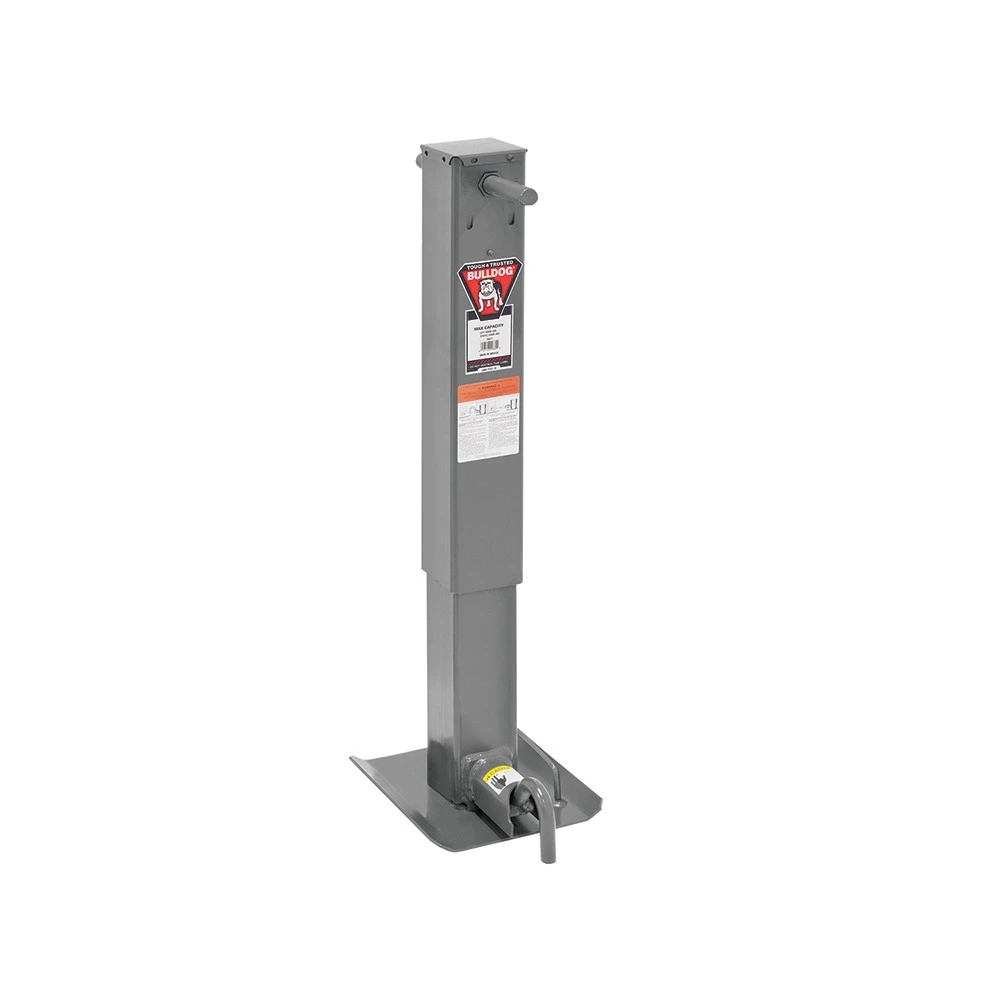

Bulldog 4x 12K Square Trailer Jack w/ 26" Lift Drop Leg Non Spring Return
Model: BDTJ464-Pack Bulldog 12K Square Trailer Jacks w/ 26″ Drop Leg (Non-Spring Return)
Equip your heavy-duty trailers with four reliable Bulldog 12,000 lb square jacks featuring a 26″ drop leg and non-spring return design. Perfect for agricultural, construction, and utility applications, this bundle provides exceptional strength, durability, and ease of maintenance. Install four at once to standardize your fleet and ensure consistent performance on every trailer.
Bundle Contents:
- QTY (4): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Sidewind, 12-1/2″ Travel, No Handle
- Strong, durable, and sturdy design trusted since 1923
- 4″ square tubing, 7-gauge superior alloy steel construction
- Painted outer tube and drop leg for corrosion resistance
- Drop leg option with 5 positioning holes for precise height adjustment
- Easy-access gearbox with grease fitting for routine maintenance
- Non-spring return drop leg for reliable downward pressure
- 12.5″ screw travel plus 13.5″ of additional adjustment when extended
- Front-facing or side-facing drop leg plunger pin options
- Available in painted (with or without labels) or powder paint finish
- Sidewind handle crank with 1:1.5 gear ratio for smooth operation
Please verify compatibility with your trailer’s original equipment and perform routine maintenance—including lubrication and inspection—to ensure long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 54 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.5 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$1,080 99 $1,225.00 12% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,225.00 $1,080 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ46
- Includes: 12K Drop Leg Jack
